When selecting replacement components for heavy‑duty material handling conveyors—especially in demanding industries such as lumber processing, mining, and grain handling—one of the most common challenges is finding the correct physical dimensions and ensuring compatibility between the chain and sprocket. For chains and sprockets that are designated as 81X, understanding the industry‑accepted standard dimensions is essential. Using mismatched components leads to accelerated wear, unexpected downtime, and increased operational costs. This article provides a comprehensive, EEAT‑compliant guide to the standard dimensions of 81X chain and 81X sprocket, helping you make informed replacement or specification decisions with confidence.
The most critical standard dimension for an 81X chain is a pitch of 2.609 inches (66.27 mm). All variants, including 81XH and 81XHH, share the same pitch to ensure sprocket compatibility.
The recommended number of teeth for an 81X sprocket ranges from 6 to 20, depending on the drive ratio and application.
Standard 81X chain tensile strength is approximately 24,000–25,000 lbf, while heavy‑duty 81XH and 81XHH versions offer ratings from 34,000 lbf up to 47,800 lbf.
When you choose 81X chain from a reputable manufacturer, you benefit from quad‑staking, shot peening, and precision heat treatment—all of which contribute to longer fatigue life and reliable performance under shock loads.
Whether you specify 81X chain for a new system or replace components in an existing conveyor, confirm the match of pitch, roller diameter, and sprocket tooth profile.

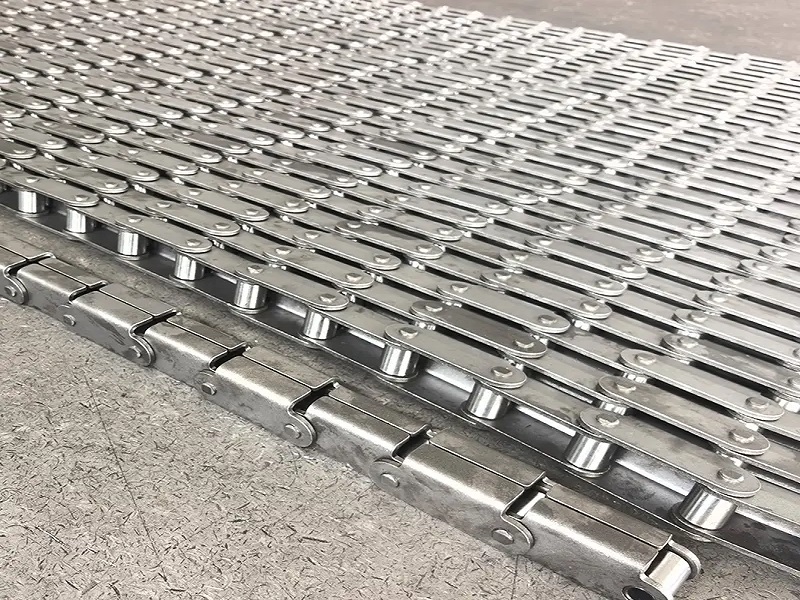

The 81X chain is classified within the ANSI Engineer Class (recognized under ASME B29.15M) as a steel‑bushed roller chain with a straight sidebar design. All strength variants—81X, 81XH (heavy), and 81XHH (extra heavy)—share the same base dimensions and gearing geometry, which means that any of these grades will run correctly on a standard 81X sprocket.
For clarity and precision, the key dimensions of 81X chain are provided below in both imperial and metric units.
| Specification | Symbol | Imperial (inches) | Metric (mm) |
|---|---|---|---|
| Pitch | P | 2.609 | 66.27 |
| Roller Diameter | R (or d1) | 0.905–0.906 | 23.00 |
| Width Between Inner Plates | W (or b1 min) | 1.060–1.063 | 27.00 |
| Pin Diameter | D (or d2 max) | 0.437 | 11.10 |
| Pin Length (Overall) | L (or L + Lc) | 2.125 (Std); 2.536 (HD) | 49.0 (Std); 61.2–63.5 (HD) |
| Link Plate Height | H (or h2) | 1.125 (Std); 1.26 (HD) | 28.6 (Std); 32.3 (HD) |
| Link Plate Thickness | T (or T1/T2) | 0.156 (Std); 0.312 (HD) | 4.00 (Std); 7.87 (HD) |
| Overall chain width | – | 2.156 | – |
| Minimum Tensile Strength | – | 24,000–25,000 lbf (Std) | 106.7 kN (Std) |
| Weight per foot | – | 2.5–2.6 lbs (Std); 4.1–4.3 lbs (HD) | 3.78–3.90 kg/m (Std); 5.90–6.52 kg/m (HD) |
Note: For the highest possible fatigue life and wear resistance, heat‑treated 81X chain components are manufactured to precise tolerances, with solid rollers and case‑hardened pins being standard specifications.
To meet different application demands, 81X chain is available in three primary strength grades:
Standard 81X: Tensile strength ~24,000–25,000 lbf. Sidebar thickness is approximately 0.156 in (4.0 mm), and overall weight is about 2.5 lbs per foot.
81XH (heavy): Tensile strength ~34,000–42,000 lbf. Uses thicker sidebars (often 7.9 mm / 0.31 in) and longer pins to accommodate additional plate depth. Typical weight ranges from 4.1 lbs/ft to 5.9 kg/m.
81XHH (extra heavy / XHD): Tensile strength up to 42,000–47,800 lbf. Features the heaviest sidebars and pins while retaining the identical pitch (2.609 in) and roller diameter.
All three grades are designed to be interchangeable on the same sprocket, thanks to the shared base dimensions. Consequently, you can upgrade your 81X chain from standard to heavy‑duty without needing to replace the sprockets.
An 81X sprocket is manufactured to mesh precisely with the 81X chain roller diameter and pitch. When a chain and sprocket are properly matched, wear is minimized, power transmission is efficient, and overall system life is extended. For the optimal “chain and sprocket” system:
The sprocket tooth profile must match the 81X chain roller diameter, which is 0.905–0.906 in (23.0 mm) for standard rollers.
The gap between the sprocket teeth and the chain bushings/rollers must reflect the standard width between inner plates (1.060–1.063 in).
All 81X sprockets conform to the same gearing dimensions, so a standard 2.609‑inch pitch sprocket will accommodate any grade of 81X chain.
81X sprockets are available in several standard configurations and tooth counts, depending on the drive ratio and operational speed.
Typical tooth counts: Sprockets for 81X chain commonly range from 6 to 20 teeth. For slower, high‑torque applications, fewer teeth may be used; for higher speeds, more teeth help reduce vibration and wear.
Common examples: An 8‑tooth 81X sprocket is frequently used in sawmill transfer decks, while 12‑tooth versions are typical for moderate‑speed conveyor drives.
Sprocket pitch diameter for 81X chain: With a chain pitch of 2.609 inches, the pitch diameter of an 81X sprocket can be approximated using standard sprocket formulas. For a 12‑tooth sprocket, the pitch diameter is approximately 10.08 inches.
At Jinqiu Chain, we offer 81X sprockets in multiple configurations, including A‑plate (plain plate, no hub), B‑hub (one‑side extended hub), C‑hub (double‑side extended hub), and split sprockets for installation where shaft ends are inaccessible. Every sprocket is engineered to ensure perfect alignment with 81X chain on any heavy‑duty conveyor.
Before purchasing an 81X chain or 81X sprocket, examine your existing components carefully. One overlooked difference is the pin length when upgrading between grades. As noted in the dimension table, 81X chain pins range from 49.0 mm (standard) up to 63.5 mm (81XHH). While the chain pitch and roller diameter remain identical, the longer pins are used in wider sidebars. Therefore, always confirm the width across the chain before ordering the matching sprocket.
Correct dimension matching ensures that your 81X chain operates smoothly without jumping, binding, or accelerating wear. Unlike other chain series that may have different roller diameters for the same pitch, 81X chain maintains a consistent roller diameter of 0.905–0.906 in, which is essential for sprocket tooth contact.
If you attempt to run a different chain on an 81X sprocket without verifying the roller diameter, the following problems can occur:
Roller diameter too small: The sprocket teeth may strike the bushings instead of the rollers, causing rapid wear and eventual chain failure.
Roller diameter too large: The chain will ride on the tips of the sprocket teeth, leading to poor engagement and increased vibration, which can overload drive components.
To protect your investment in 81X chain, pair your chain with 81X sprockets that are manufactured to the same pitch (2.609 in) and roller diameter, and verify alignment and tension during installation. Regular inspections for chain elongation and sprocket tooth wear should be part of your preventive maintenance plan. Replacing a worn sprocket without also replacing the 81X chain can dramatically shorten the life of the new chain because the worn tooth profile will not match the new chain’s geometry.
Choosing the right dimensions for 81X chain is only half the equation. The other half involves selecting a manufacturer whose production processes consistently hold those dimensions from batch to batch. Jinqiu Chain Transmission Co., Ltd. has over 36 years of experience in designing and manufacturing industrial chains. We occupy more than 60,000 square meters with 8 specialized production workshops, over 300 employees, including 50 in engineering and product development, with an annual production capacity of more than 10,000 tons, over 300 sets of advanced production equipment and testing equipment. Our 81X chains adhere to international standards, ensuring compatibility with all industry-standard sprockets.
Our comprehensive quality control process—including raw material spectroscopic analysis, heat treatment monitoring, final tensile testing, and shot peening for fatigue resistance—ensures every 81X chain meets the standard dimensions and durability required for demanding industrial applications. Whether you need standard conveyor chain, heavy-duty 81XH, or extra-heavy 81XHH, Jinqiu Chain delivers consistent dimensional accuracy from batch to batch.
Precision pitch control: We manufacture 81X chain to a pitch of 2.609 inches (66.27 mm) with minimal variation, ensuring smooth engagement with any standard 81X sprocket.
Consistent heat treatment: Our in‑house heat treatment lines (vacuum, mesh belt, and multi‑purpose furnaces) ensure case‑hardened pins and solid rollers meet target hardness and wear resistance requirements.
Worldwide shipping with OEM support: Jinqiu Chain supplies 81X chain in 10‑ft rolls, pre‑cut lengths, and fully customized attachments. With an annual output exceeding 10,000 tons, we can fulfill large‑volume orders while maintaining consistent specifications.
Making the right choice for 81X chain and 81X sprocket comes down to understanding the dimensions that govern compatibility and selecting a proven partner who delivers consistent quality. Every 81X chain variant—whether standard, heavy, or extra heavy—is anchored by the established 2.609‑inch pitch and the 0.906‑inch roller diameter. By verifying those numbers before you buy and specifying components from a proven manufacturer, you can eliminate much of the guesswork and keep your material handling system running reliably.
When your operation demands 81X chain that not only meets the standard dimensions but also withstands years of severe duty, look to Jinqiu Chain. With our extensive manufacturing resources (60,000+ m², eight workshops, advanced testing equipment) and deep engineering heritage, we produce 81X chain that delivers the exact fit, the right durability, and the long‑term value your business deserves.
Ready to get the correct 81X Chain for your application? Contact the professionals at Jinqiu Chain today. Our dedicated team will help you match the standard dimensions, sprocket options, and strength grade to your specific conveyor needs.
