ANSI & ISO Standard Industrial Sprocket Manufacturer | Precision Drive Gear Solutions

Smooth power transmission and maximum chain service life depend heavily on flawless tooth profiling and exact pitch matching. JINQIU CHAIN, a leading industrial sprocket manufacturer and global supplier, offers complete, high-capacity supply chain services for foreign OEMs, large industrial distributors, power transmission dealers, and terminal manufacturing plants worldwide. Operating from our 60,000㎡ ISO-certified manufacturing base, our precision drive sprockets strictly conform to ANSI B29.1, ISO 606, and DIN 8187/8188 standards, ensuring seamless pitch integration and high-torque dynamic power transmission.

Engineering Excellence for High-Torque Power Transmission & Conveyors

  • CNC Hobbing & High-Frequency Induction Hardening: Machined on high-precision CNC gear hobbing machines, all sprocket teeth undergo high-frequency induction hardening (HRC 45–55) to drastically reduce tooth wear and prevent pitch elongation.

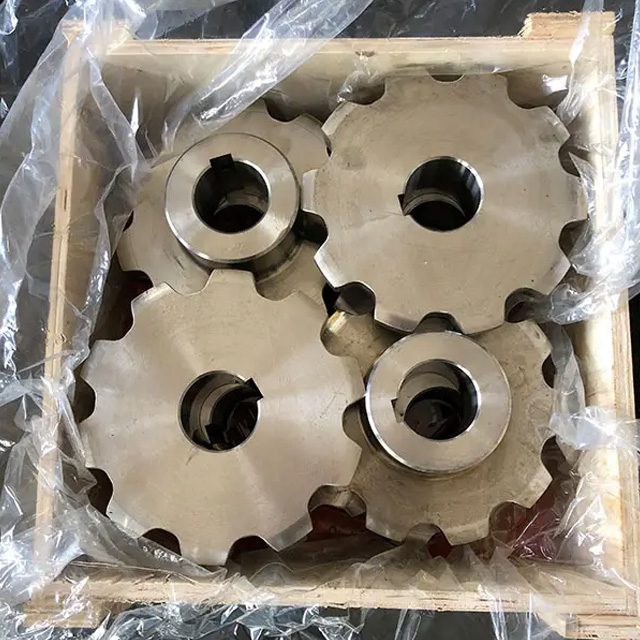

  • Premium Alloy & Carbon Steel Options: Forged and cast from top-grade C45 carbon steel, stainless steel (SS304/SS316), cast iron, and alloy steels to handle corrosive, chemical, or heavy impact environments.

  • 100% Pitch Matching & Tooth Inspection: Every batch of JINQIU sprockets is tested against actual roller chains using precision gear measuring tools to guarantee zero tooth skipping and smooth mesh engagement.

  • 50+ Professional Engineers: Our technical team provides rapid CAD modeling, custom finished bore machining (keyways, set screws, taper bushings), split-sprocket designs, and non-standard engineered sprocket manufacturing.

Optimized for Machinery Drive Systems, Agricultural Lines & Heavy Conveyors

Improper sprocket tooth geometry accelerates chain wear and causes premature drive failure. JINQIU’s industrial power transmission sprockets feature precision tooth radius machining, dynamic balancing, and specialized anti-corrosion surface treatments (black oxide, zinc plating, or paint). Partnering directly with China's leading chain and sprocket source provides global distributors with competitive factory-direct pricing, stable bulk supply, and comprehensive OEM/ODM custom manufacturing services.

Industrial Sprocket Technical Overview (ANSI / ISO Standards)

Sprocket Type Configuration & Bore Options Primary Industrial Application

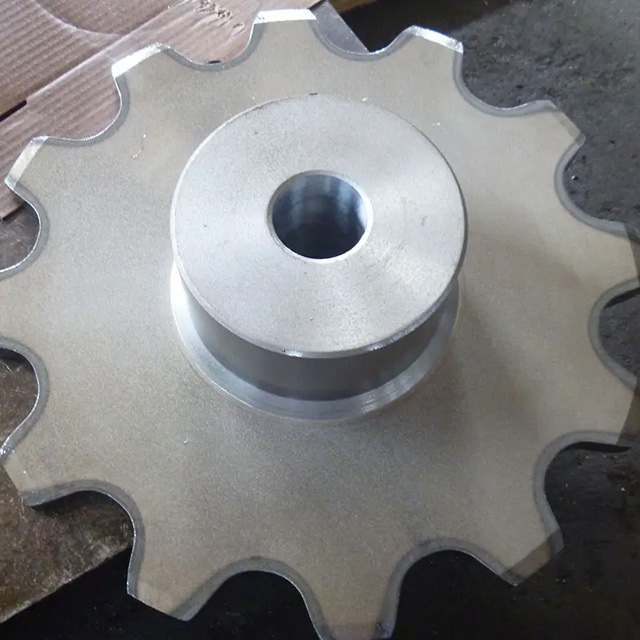

Standard Drive Sprockets (Type A, B, C) Stock bore, finished bore with keyway, & QD/Taper Lock bushing Industrial gearboxes, agricultural machinery, packaging lines, & electric drives
Double Pitch & Conveyor Sprockets Single-cut, double-cut, & custom hub dimensions Material handling conveyors, food processing lines, & automated logistics

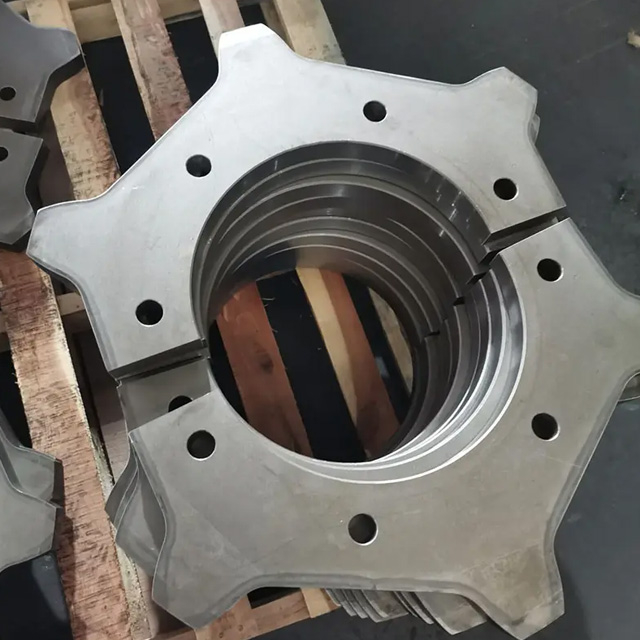

Engineered & Split Body Sprockets Segmented tooth plates, split hub assemblies, & cast iron rims Heavy bucket elevators, cement clinker lines, mining scrapers, & steel mill drives

Maximize your power transmission efficiency with JINQIU’s engineered industrial sprockets. Contact our technical team today for factory-direct quotes, CAD drawing verification, and custom drive matching solutions.

           √ ANSI B29.1 / ISO 606 Standards              √ 50+ Professional Engineers              √ Induction Hardened Teeth (HRC 45-55)
           √ 60,000㎡ ISO Certified Base              √ Complete Global OEM/ODM Custom Supply Services

Frequently Asked Questions | Industrial Drive & Conveyor Sprocket Engineering Guide

Q1: What hub configurations and specialized sprocket structures does JINQIU manufacture for heavy-duty drives?

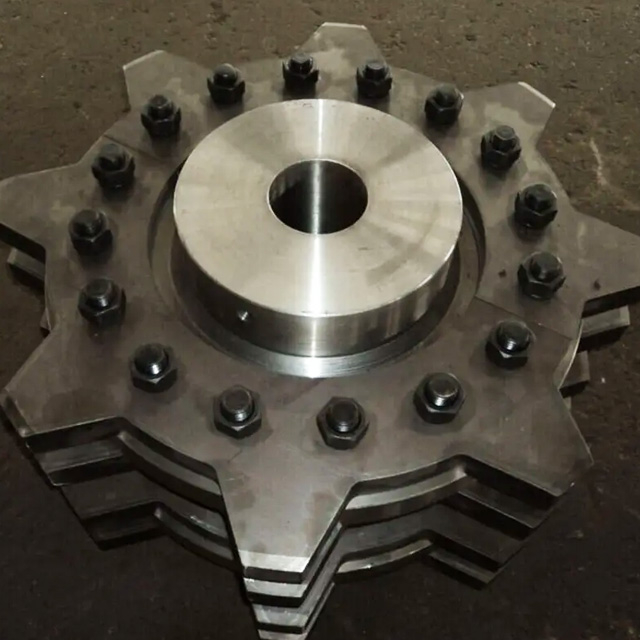

JINQIU manufactures precision industrial sprockets covering standard ANSI B29.1, ISO 606 (DIN 8187), and ISO 1977 (DIN 8167) standards. Our standard hub portfolio includes Type A (flat plate wheels), Type B (single-side hub extension), and Type C (symmetrical dual-hub extension), supplied with finished bores, keyways, taper bushes, or QD/split-taper bushings. For heavy mining, bucket elevators, and large conveyor head shafts, we engineer Split Sprockets and Bolt-On Segmental Rim Sprockets. Segmented rims allow maintenance personnel to replace worn tooth sectors directly on-site without dismounting shafts, pillow blocks, or drive motors, slashing routine overhaul downtime by up to 70%.

Q2: What heat treatment and metallurgical processes ensure long tooth life without brittle rim fracture?

Mismatched metallurgy between chain rollers and sprocket teeth causes rapid hook-wear, pocket gouging, or brittle tooth shear. JINQIU precision-machines sprockets from medium-carbon and alloy structural steels (such as C45, 40Cr, 42CrMo, and cast steel equivalents). Tooth profiles undergo localized high-frequency induction or flame hardening (50–58 HRC, case depth 2.0–4.0 mm) that encapsulates the tooth flank and root pocket. This hard envelope delivers exceptional resistance against roller scrubbing and abrasive dust, while the core and hub maintain a tough, normalized microstructure to absorb heavy dynamic shock loads without catastrophic rim cracking.

Q3: How does JINQIU eliminate chain jumping, chordal action vibration, and joint wear under packed-debris conditions?

Poor tooth spacing and packed particulate in root pockets cause chains to ride up the teeth, inducing severe chordal action and premature elongation. JINQIU cuts sprocket teeth on precision multi-axis CNC hobbing and gear-milling centers, holding pitch circle diameter (PCD) runout within ±0.03 mm. For cement clinker, clay, and agricultural operations, we incorporate curved relief mud-grooves (debris-ejecting cutouts) between tooth flanks. These grooves automatically purge packed fines during articulation, guaranteeing true bottom seating of rollers, uniform contact pressure distribution, and reduced drive-train operating vibration.

Q4: Can JINQIU provide direct drop-in replacement sprockets for brands like Martin, Tsubaki, or Rexnord with full certified documentation?

Yes. JINQIU sprockets provide 100% dimensional and mechanical drop-in compatibility matching OEM part numbers from Martin Sprocket, Tsubaki, Rexnord, and Renold. We also manufacture custom-engineered sprockets up to 3,000 mm in diameter based on client CAD drawings or worn field samples. Every production batch is dynamically balanced (per ISO 1940 Grade G6.3/G2.5 where specified) and supported by EN 10204 3.1 Material Test Certificates (MTC), tooth surface hardness inspection sheets, and optical coordinate measuring machine (CMM) dimensional logs, cutting industrial replacement budgets by 20%–35%.
