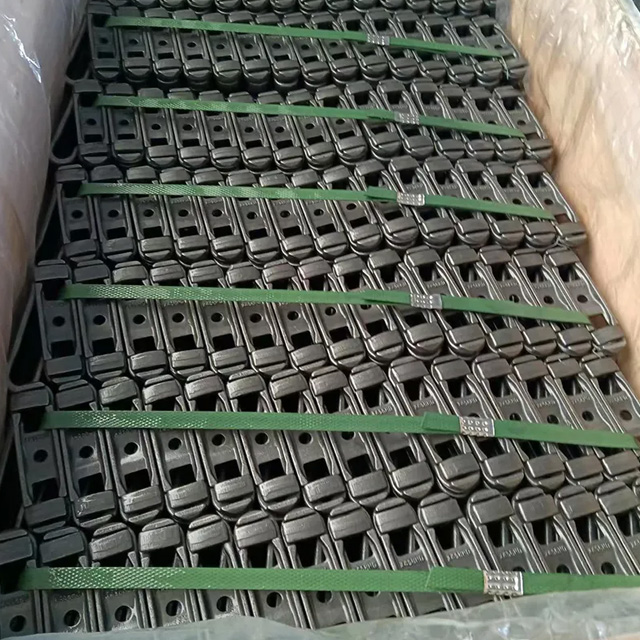

The features of x458 chain:
Material & Design: The X458 chain is a rivetless drop-forged conveyor chain made from high-quality SAE 5140 alloy steel, ensuring exceptional durability and resistance to wear and corrosion.
Strength:It delivers an ultra-high tensile strength of 48,000 lbs, ideal for heavy-duty applications in industries like automotive and steel processing.
Assembly:The rivetless design allows tool-free assembly/disassembly, reducing maintenance time and operational costs.
Self-Cleaning:Its loose-link construction offers self-cleaning properties, making it suitable for dirty or corrosive environments (e.g., car washes, meat processing).
Versatility:Widely used in overhead conveyors, material handling, and trolley systems, the X458 chain excels in flexibility and transverse pitch strength across diverse industries.
Brand Reputation: JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of drop forged rivetless chain.
Quality & Performance: Drop forged rivetless chains are typically used asoverhead conveyors on automotive assembly lines, paint lines, appliance assembly lines, sugar mills and in the meat packaging industry.
Price & Value: We offer customization services to meet the specific needs of our clients. This includes OEM and ODM support, allowing us to tailor the product to their requirements. Whether it's a trial order or a large quantity, we can accommodate various customization requests.
Supply Chain: These chains have no rotating parts, therefore suffer less from the abrasion caused by sand/dirt, that can come into the mill with the cane. All parts and heat-treated and “T” pins ensure positive locking action in the sidebars.
Drawings:
Specification Parameters
| Chain No | Average Pitch | E(mm) | sidobar | Pin | B(mm) | C(mm) | Min.Ult. Strength Q(KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | ||||||
| 468HT | 102.39 | 41.28 | 11.43 | 47.75 | 19.05 | 84.07 | 29.51 | 22.23 | 311.5 |
| 678HT | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |
| 698HT | 153.19 | 39.67 | 1506 | 68.33 | 28.58 | 95.25 | 26.19 | 31.75 | 602.9 |
| 998HT | 229.39 | 39.67 | 8.26 | 6401 | 28.58 | 98.43 | 25.40 | 28.58 | 602.9 |
| X348 | 76.99 | 19.05 | 10.41 | 26.92 | 12.70 | 44.45 | 13.21 | 14.27 | 106.8 |
| X458 | 102.39 | 25.91 | 12.19 | 36.58 | 15.88 | 55.58 | 16.76 | 17.48 | 213.6 |
| X678 | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |
● Mining Industry
In the mining industry, forged chains are widely used in the transportation and processing of ore and the transmission system of mining machinery. Ore is often heavy and irregular in shape, and forged chains can withstand huge loads and work stably to ensure the smooth transportation of ore.
● Cement Industry
In cement production, forged chains are often used to transport raw materials (such as limestone, clay) and finished cement. Since cement production requires handling large amounts of heavy materials and the working environment is often dusty and hot, forged chains are an ideal choice due to their high strength and wear resistance.
● Steel Mill Industry
Forged chains are widely used in steel smelting, furnace material transportation and steel production lines. Since the working environment of steel mills is extremely harsh, with high temperature and heavy load conditions, the high temperature resistance and load-bearing capacity of forged chains enable them to operate stably under these conditions.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
SGS Certificate
Patent Certificate
After-sales Service
Customer Testimonials
| Buyers from Canada: The product quality is very good and meets my expectations. Currently, I have not encountered any problems while using it, and the merchant is very professional. |
| Buyers from USA: Chain quality is amazing and delivery is fast, I like it, look forward to our continued relationship. |
| Buyers from India: Thanks, I think I have a trustworthy partner. You know our needs and try to keep our best interests in mind. Looking forward to our continued relationship. |
