The features of drop forged conveyor chain:
1.The drop forged conveyor chain is highly durable. Made from high-grade alloy steel and heat-treated, it can endure harsh working conditions. Its design ensures a long lifespan, reducing the need for frequent replacements.
2.This chain offers excellent strength. With robust links and pins, the drop forged conveyor chain can handle heavy loads, making it ideal for industrial applications where high carrying capacity is essential.
3.It has great versatility. The drop forged conveyor chain can be used in various conveying systems like overhead conveyors and trolley conveyors, adapting well to different setups.
4.Moreover, it allows for customization. The links can be reworked with weld-on attachments and scrapers, enabling users to tailor the drop forged conveyor chain to specific requirements.
Drawings:
Specification Parameters
| Chain No | Average Pitch | E(mm) | sidobar | Pin | B(mm) | C(mm) | Min.Ult. Strength Q(KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | ||||||
| 468HT | 102.39 | 41.28 | 11.43 | 47.75 | 19.05 | 84.07 | 29.51 | 22.23 | 311.5 |
| 678HT | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |

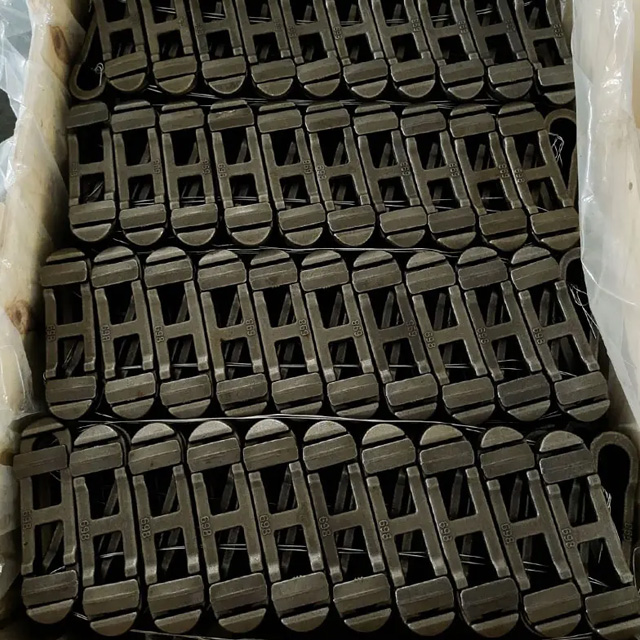

| 698HT | 153.19 | 39.67 | 1506 | 68.33 | 28.58 | 95.25 | 26.19 | 31.75 | 602.9 |
| 998HT | 229.39 | 39.67 | 8.26 | 6401 | 28.58 | 98.43 | 25.40 | 28.58 | 602.9 |
| X348 | 76.99 | 19.05 | 10.41 | 26.92 | 12.70 | 44.45 | 13.21 | 14.27 | 106.8 |
| X458 | 102.39 | 25.91 | 12.19 | 36.58 | 15.88 | 55.58 | 16.76 | 17.48 | 213.6 |
| X678 | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |
● Mining Industry
In the mining industry, forged chains are widely used in the transportation and processing of ore and the transmission system of mining machinery. Ore is often heavy and irregular in shape, and forged chains can withstand huge loads and work stably to ensure the smooth transportation of ore.
● Cement Industry
In cement production, forged chains are often used to transport raw materials (such as limestone, clay) and finished cement. Since cement production requires handling large amounts of heavy materials and the working environment is often dusty and hot, forged chains are an ideal choice due to their high strength and wear resistance.
● Steel Mill Industry
Forged chains are widely used in steel smelting, furnace material transportation and steel production lines. Since the working environment of steel mills is extremely harsh, with high temperature and heavy load conditions, the high temperature resistance and load-bearing capacity of forged chains enable them to operate stably under these conditions.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
