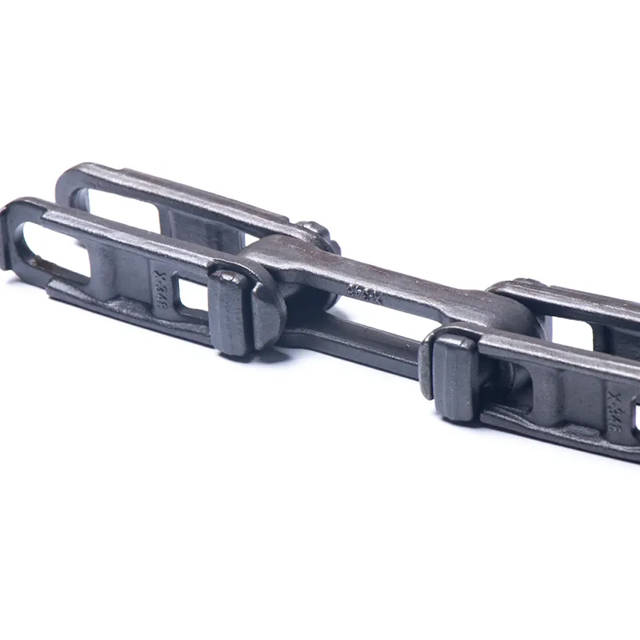

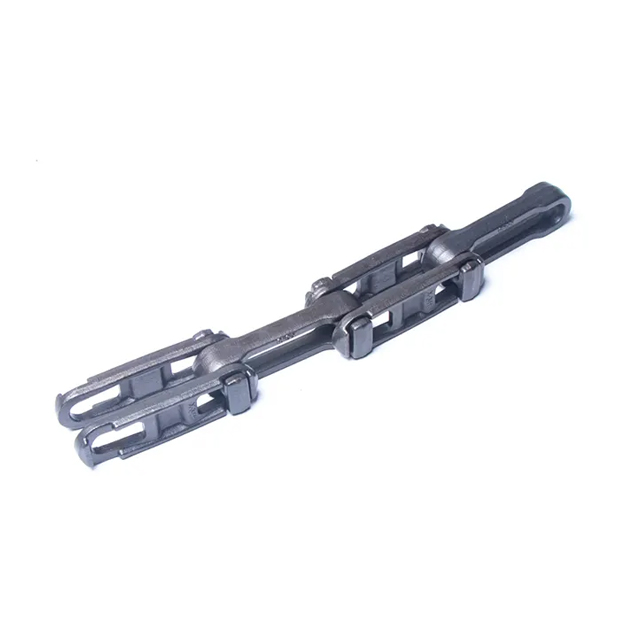

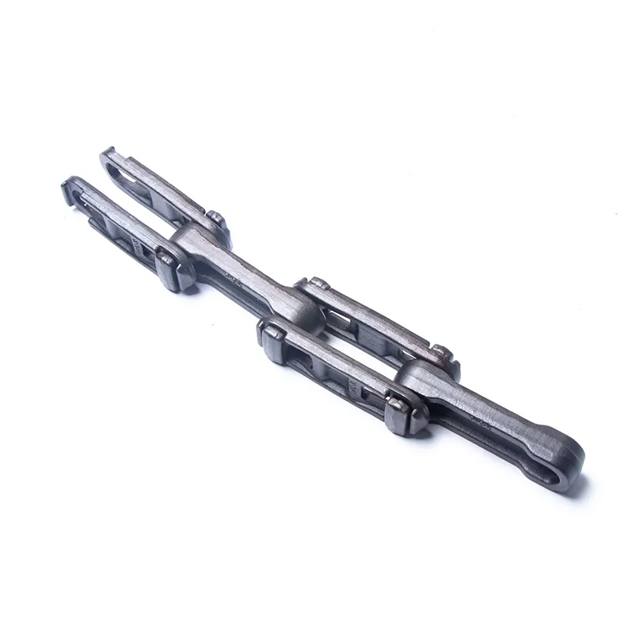

The features of X348 drop forged rivetless chain:
Material & Construction: The X348 drop forged rivetless chain is crafted from high-strength alloy steel, with fully heat-treated components for enhanced durability and resistance to wear and corrosion. Its drop-forged construction ensures robust integrity for heavy-duty applications.
Rivetless Design: This chain features an innovative rivetless structure, where links are connected by integral forged pins, eliminating weak points and ensuring consistent performance with reduced elongation risk.
X-Style Flexibility: The X-shaped cross-section design allows bi-directional flexing horizontally and vertically, making it ideal for overhead conveyor systems with complex curves.
High Load Capacity: With an ultimate tensile strength of 24,000 lbs, the X348 chain withstands heavy loads in demanding environments like automotive assembly lines and mining operations.

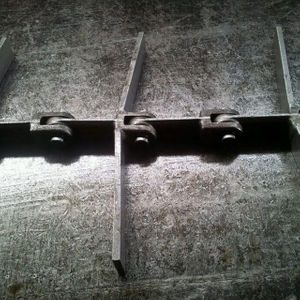

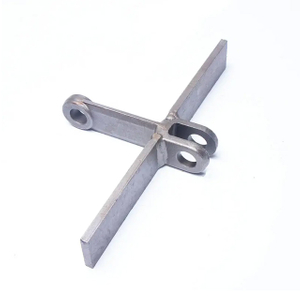

Versatile Applications: Suitable for diverse industries (e.g., automotive, car washes, material handling), it supports various attachments (trolleys, scrapers) for customized conveying solutions.
Brand Reputation: JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of drop forged rivetless chain.
Quality & Performance: Drop forged rivetless chains are typically used asoverhead conveyors on automotive assembly lines, paint lines, appliance assembly lines, sugar mills and in the meat packaging industry.
Price & Value: We offer customization services to meet the specific needs of our clients. This includes OEM and ODM support, allowing us to tailor the product to their requirements. Whether it's a trial order or a large quantity, we can accommodate various customization requests.
Supply Chain: These chains have no rotating parts, therefore suffer less from the abrasion caused by sand/dirt, that can come into the mill with the cane. All parts and heat-treated and “T” pins ensure positive locking action in the sidebars.

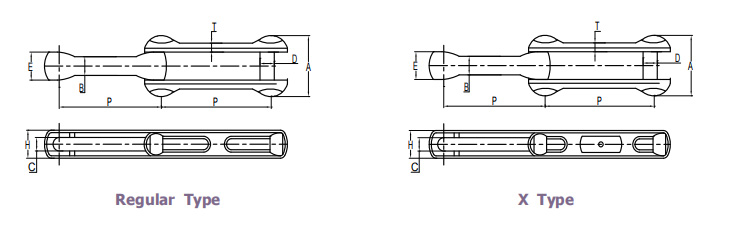

Drawings:
Specification Parameters
| Chain No | Average Pitch | E(mm) | sidobar | Pin | B(mm) | C(mm) | Min.Ult. Strength Q(KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | ||||||
| 468HT | 102.39 | 41.28 | 11.43 | 47.75 | 19.05 | 84.07 | 29.51 | 22.23 | 311.5 |
| 678HT | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |

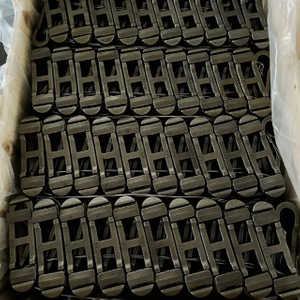

| 698HT | 153.19 | 39.67 | 1506 | 68.33 | 28.58 | 95.25 | 26.19 | 31.75 | 602.9 |
| 998HT | 229.39 | 39.67 | 8.26 | 6401 | 28.58 | 98.43 | 25.40 | 28.58 | 602.9 |
| X348 | 76.99 | 19.05 | 10.41 | 26.92 | 12.70 | 44.45 | 13.21 | 14.27 | 106.8 |
| X458 | 102.39 | 25.91 | 12.19 | 36.58 | 15.88 | 55.58 | 16.76 | 17.48 | 213.6 |
| X678 | 153.19 | 33.32 | 18.29 | 50.80 | 22.23 | 76.96 | 21.34 | 25.40 | 378.3 |

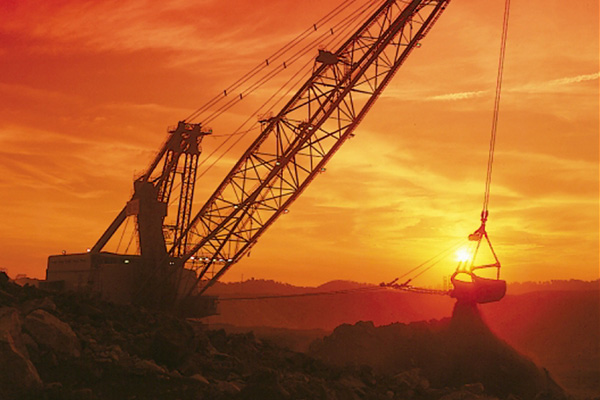

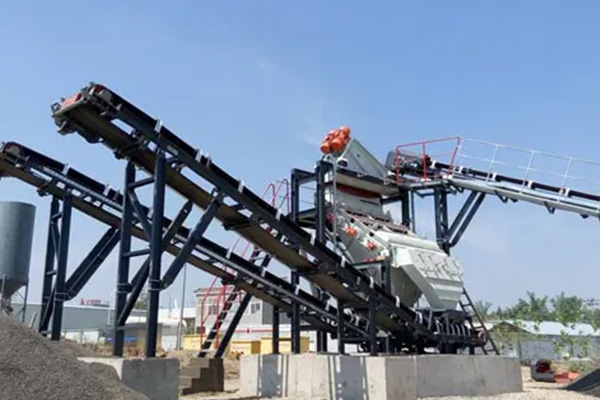

● Mining Industry
In the mining industry, forged chains are widely used in the transportation and processing of ore and the transmission system of mining machinery. Ore is often heavy and irregular in shape, and forged chains can withstand huge loads and work stably to ensure the smooth transportation of ore.
● Cement Industry
In cement production, forged chains are often used to transport raw materials (such as limestone, clay) and finished cement. Since cement production requires handling large amounts of heavy materials and the working environment is often dusty and hot, forged chains are an ideal choice due to their high strength and wear resistance.

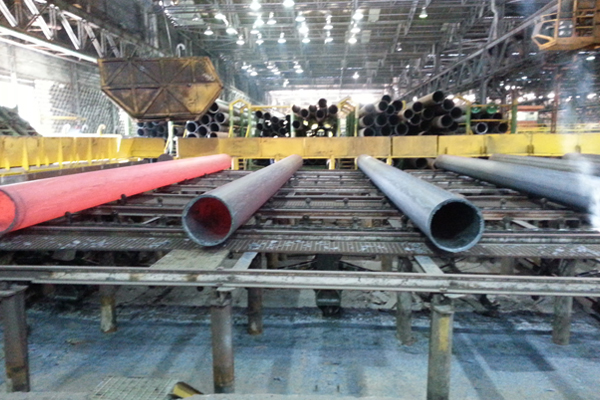

● Steel Mill Industry
Forged chains are widely used in steel smelting, furnace material transportation and steel production lines. Since the working environment of steel mills is extremely harsh, with high temperature and heavy load conditions, the high temperature resistance and load-bearing capacity of forged chains enable them to operate stably under these conditions.
