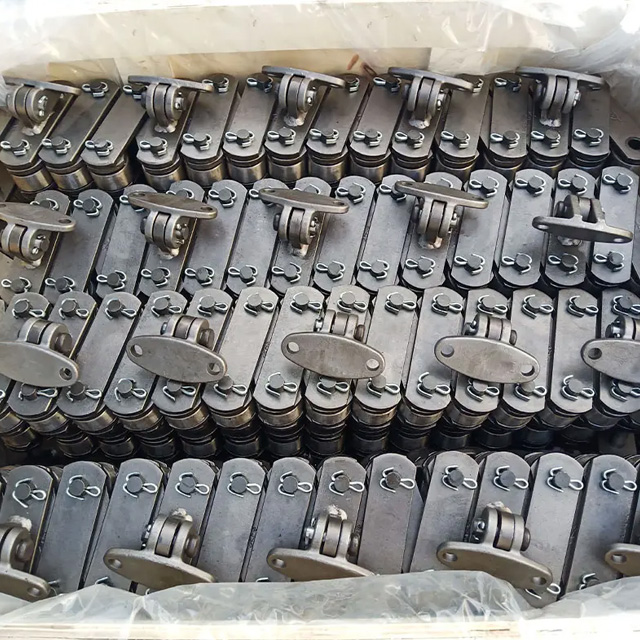

0904 Engineer Chain Sugar Chain

The 0904 engineer chain sugar chain is a remarkable product. Engineered with precision, these chains are highly durable and fatigue-resistant. Their high strength allows them to withstand demanding applications. In the sugar industry, they play a crucial role in cane carrier conveyors. With features like accurate pitch and well - designed attachments, they ensure smooth operation. These engineer chains are a reliable choice for sugar mills, guaranteeing efficient and long - lasting performance.

Availability:



Inquire

Product Features

Applications

Production

Company Advantages

Service Support

The advantages of 0904 engineer chain sugar chain:

Exceptional Durability: The 0904 engineer chain sugar chain is crafted with top - grade materials. Engineered to endure harsh conditions in sugar production, this engineer chain resists wear and tear, ensuring a long - lasting performance.

High Load - Bearing Capacity: Specifically designed for sugar industry applications, the 0904 engineer chain can handle heavy loads. It efficiently transports sugar cane or other materials, maintaining smooth operation even under substantial weight.

Precision Engineering: This sugar chain, with its precise manufacturing, guarantees accurate movement. The engineer chain's well - designed structure reduces misalignment risks, enhancing the overall efficiency of sugar - making machinery.

Corrosion Resistance: Considering the humid and corrosive environment in sugar production, the 0904 engineer chain is treated to resist corrosion. This feature extends its lifespan and reduces maintenance requirements.

Customizability: The 0904 engineer chain sugar chain can be customized. Whether it's adjusting the length or modifying the links, it can be tailored to fit different sugar - processing equipment, providing a flexible solution for various needs.

Drawings:

09065.1

Specification Parameters

Chain No	Pitch P	Dimension							Weight KG/FT	Ultimate Tensile Q(KN)
Chain No	Pitch P	D	H	K	T1	T2	W	W2	Weight KG/FT	Ultimate Tensile Q(KN)
P=6"	152.4	38.9	77.8	17.0	38.1	50.8	128.5	76.2	12.30	1423
P=9"	228.6	38.9	80.0	17.0	40.0	50.0	132.0	95.0	9.58	1423

Drawings:

Specification Parameters

Chain No	Pitch	E(mm)	Sidebar		Pin		Bush	Roller	W(mm)	W1(mm)	K(mm)	C(mm)	Average Ultimate Strength Q(KN)
	Pitch	E(mm)	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	F(mm)
	P	min	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	F(mm)
0904	101.6	30.99	7.87	44.45	17.53	81.00	25.40	50.80	88.90	36.58	9.65	31.75	220
09060	152.4	38.10	9.65	50.80	19.05	97.00	28.70	69.85	111.125	76.20	12.70	41.40	270
SS996	152.4	38.10	9.65	50.80	19.05	98.40	28.70	69.85	111.125	76.20	12.70	41.40	315
09061	152.4	38.10	9.65	57.15	19.05	97.00	28.70	69.85	111.125	76.20	12.70	41.40	380
1796	152.4	38.10	9.65	57.15	22.23	99.00	31.75	69.85	111.125	76.20	14.27	41.40	450
1797	152.4	38.10	9.65	57.15	22.23	99.00	31.75	76.20	111.125	76.20	14.27	41.40	450
2178	152.4	39.67	9.525	50.80	22.23	95.23	28.70	69.85	143.10	76.20	14.27	41.40	270
2198	152.4	38.10	12.70	60.45	22.10	112.00	31.75	76.20	111.125	76.20	12.70	41.40	450
09063	152.4	38.10	10.41	60.45	23.88	102.10	31.75	76.20	111.125	76.20	12.70	44.45	630
09065	152.4	38.10	12.70	60.45	26.92	107.89	38.10	76.20	111.125	76.20	12.70	42.93	720
113C	152.4	38.40	12.70	65.00	22.20	111.20	31.75	81.00	111.125	76.20	14.30	45.50	420
SS800R	203.2	45.97	12.70	71.37	25.58	124.00	38.10	88.90	131.83	114.30	16.00	55.60	750
B5513	228.6	61.09	16.00	69.85	31.75	142.62	44.45	107.95	203.20	76.20	19.05	69.85	810
C2630	304.8	69.85	16.00	88.90	35.05	133.60	44.45	101.60	203.20	127.00	17.53	69.85	1350

● Sugar Industry

In sugar industry, sugar mill chain has to be abrasion and corrosion resistant since it is inevitably exposed to strong impacts and corrosive environments. We offer a complete range chains in sugar mills from cane carrier, Inter-carrier and bagasse conveyor. We have rich design experience and manufacturing technology, and can provide system solutions for you.

7.5

Why Choose Our Sugar Chain?

We are not just chain manufacturers; we are industry partners dedicated to providing comprehensive solutions tailored to your applications. Our expertise in the sugar industry enables us to deliver:

• Durable and Reliable Chains

Engineered with high-grade materials and advanced coatings to withstand the corrosive and abrasive conditions in sugar production.

• Expert Technical Support

Our experienced engineers analyze your challenges and offer customized recommendations to optimize performance and extend chain lifespan.

• Preventive Maintenance Guidance

We provide insights into best practices for conveyor maintenance, ensuring smooth operations and reducing downtime.

The Benefits of Our Chains for the Sugar Industry

• Reduced Downtime

Minimized wear and tear ensures consistent production without unexpected halts.

• Improved Efficiency

Smooth, reliable chain performance enhances conveyor operation, increasing throughput.

• Extended Chain Lifespan

Corrosion-resistant designs and proper maintenance practices significantly reduce replacement frequency.

• Cost Savings

By preventing premature wear and reducing maintenance needs, our solutions lower long-term operational costs.
