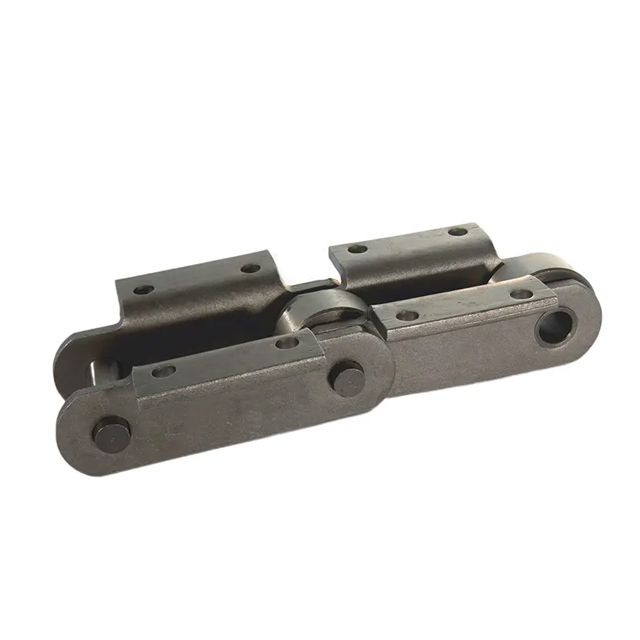

09065 Engineer Chain Sugar Chain

● The 09065 engineer chain sugar chain is made of high-strength alloy material with precise tensile strength, ensuring reliable transmission and durability.
● We offer OEM and ODM services, allowing for customization of products to meet the specific needs of our customers, including different packaging options.
● As a certified product, our chains comply with ISO 9001:2015 international standards, guaranteeing compliance with global quality requirements.
● The 09065 engineer chain sugar chain is available for worldwide distribution, catering to customers' needs globally.

Availability:



Inquire

Product Features

Applications

Production

Company Advantages

Service Support

Brand Reputation: JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range chains in sugar mills from cane carrier, Inter-carrier and bagasse conveyor.

Quality & Performance: A wide variety of Bagasse Conveyor Roller Chains are available for selection.

Price & Value: Intermediate carrier chains are critical components in the sugar industry, playing an essential role in transporting bagasse and other materials during production. With years of experience supplying a large quantity of intermediate carrier chains to the market, we have developed a deep understanding of the industry's unique challenges and solutions.

Supply Chain: Basing on our understanding of sugar refining process and equipment, we know how to produce a bent side pate chain & attachments and sugar mill chain that is suitable for long-term transmission and hoisting applications in sugar refining industry.

Drawings:

09065.1

Specification Parameters

Chain No	Pitch P	Dimension							Weight KG/FT	Ultimate Tensile Q(KN)
Chain No	Pitch P	D	H	K	T1	T2	W	W2	Weight KG/FT	Ultimate Tensile Q(KN)
P=6"	152.4	38.9	77.8	17.0	38.1	50.8	128.5	76.2	12.30	1423
P=9"	228.6	38.9	80.0	17.0	40.0	50.0	132.0	95.0	9.58	1423

Drawings:

Specification Parameters

Chain No	Pitch	E(mm)	Sidebar		Pin		Bush	Roller	W(mm)	W1(mm)	K(mm)	C(mm)	Average Ultimate Strength Q(KN)
	Pitch	E(mm)	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	F(mm)
	P	min	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	F(mm)
0904	101.6	30.99	7.87	44.45	17.53	81.00	25.40	50.80	88.90	36.58	9.65	31.75	220
09060	152.4	38.10	9.65	50.80	19.05	97.00	28.70	69.85	111.125	76.20	12.70	41.40	270
SS996	152.4	38.10	9.65	50.80	19.05	98.40	28.70	69.85	111.125	76.20	12.70	41.40	315
09061	152.4	38.10	9.65	57.15	19.05	97.00	28.70	69.85	111.125	76.20	12.70	41.40	380
1796	152.4	38.10	9.65	57.15	22.23	99.00	31.75	69.85	111.125	76.20	14.27	41.40	450
1797	152.4	38.10	9.65	57.15	22.23	99.00	31.75	76.20	111.125	76.20	14.27	41.40	450
2178	152.4	39.67	9.525	50.80	22.23	95.23	28.70	69.85	143.10	76.20	14.27	41.40	270
2198	152.4	38.10	12.70	60.45	22.10	112.00	31.75	76.20	111.125	76.20	12.70	41.40	450
09063	152.4	38.10	10.41	60.45	23.88	102.10	31.75	76.20	111.125	76.20	12.70	44.45	630
09065	152.4	38.10	12.70	60.45	26.92	107.89	38.10	76.20	111.125	76.20	12.70	42.93	720
113C	152.4	38.40	12.70	65.00	22.20	111.20	31.75	81.00	111.125	76.20	14.30	45.50	420
SS800R	203.2	45.97	12.70	71.37	25.58	124.00	38.10	88.90	131.83	114.30	16.00	55.60	750
B5513	228.6	61.09	16.00	69.85	31.75	142.62	44.45	107.95	203.20	76.20	19.05	69.85	810
C2630	304.8	69.85	16.00	88.90	35.05	133.60	44.45	101.60	203.20	127.00	17.53	69.85	1350

● Sugar Industry

In sugar industry, sugar mill chain has to be abrasion and corrosion resistant since it is inevitably exposed to strong impacts and corrosive environments. We offer a complete range chains in sugar mills from cane carrier, Inter-carrier and bagasse conveyor. We have rich design experience and manufacturing technology, and can provide system solutions for you.

7.5

Why Choose Our Sugar Chain?

We are not just chain manufacturers; we are industry partners dedicated to providing comprehensive solutions tailored to your applications. Our expertise in the sugar industry enables us to deliver:

• Durable and Reliable Chains

Engineered with high-grade materials and advanced coatings to withstand the corrosive and abrasive conditions in sugar production.

• Expert Technical Support

Our experienced engineers analyze your challenges and offer customized recommendations to optimize performance and extend chain lifespan.

• Preventive Maintenance Guidance

We provide insights into best practices for conveyor maintenance, ensuring smooth operations and reducing downtime.

The Benefits of Our Chains for the Sugar Industry

• Reduced Downtime

Minimized wear and tear ensures consistent production without unexpected halts.

• Improved Efficiency

Smooth, reliable chain performance enhances conveyor operation, increasing throughput.

• Extended Chain Lifespan

Corrosion-resistant designs and proper maintenance practices significantly reduce replacement frequency.

• Cost Savings

By preventing premature wear and reducing maintenance needs, our solutions lower long-term operational costs.

Workshops

We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
