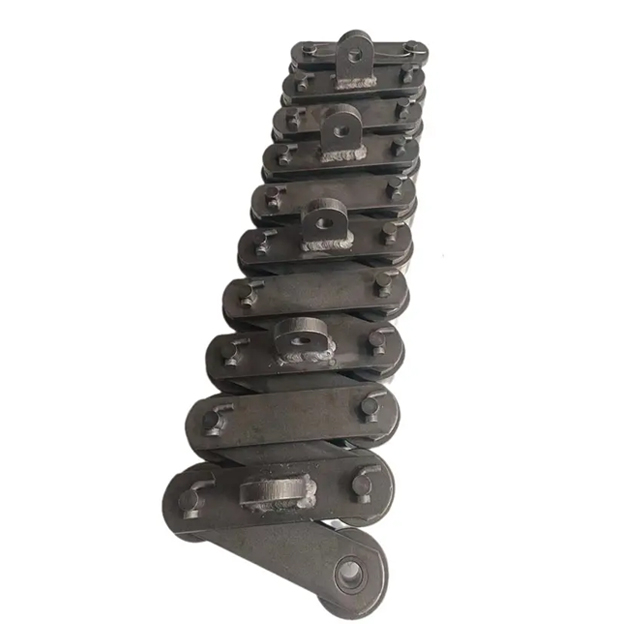

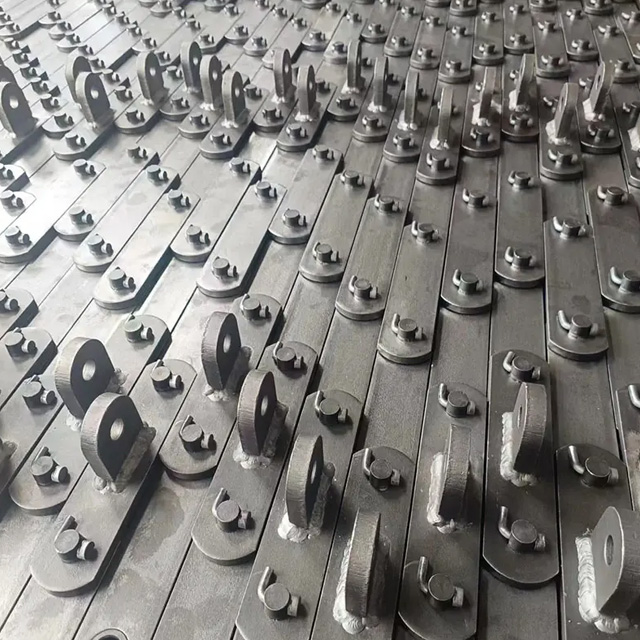

Features of engineer chain sugar chain:
Robust Construction: Engineering steel chains for sugar chains are made with sturdy materials. Their robust build enables them to endure the harsh and abrasive conditions in sugar mills, like contact with rough sugarcane, ensuring long - term use without quick wear - out.
High Load Capacity: These chains are designed to handle substantial loads. Whether transporting large amounts of sugarcane or operating heavy - duty equipment in the sugar production process, their high load - bearing ability guarantees smooth and continuous operation.
Corrosion Resistance: Exposed to moisture and sugar - related substances, engineering steel chains for sugar chains often feature corrosion - resistant coatings or are constructed from materials like stainless steel. This resistance extends their lifespan and maintains their performance.
Precision Engineering: Precision is key. Engineered to exact standards, they provide reliable and stable operation, minimizing vibrations and disruptions in the sugar production line, which is crucial for efficient and high - quality production.
Customizable Design: Available in various sizes and with different attachment options, they can be customized to meet the specific layout and operational requirements of different sugar mills, ensuring a perfect fit for any production environment.
Drawings of engineer chain sugar chain:
Specification Parameters
| Chain No | Pitch P | E(mm) min | Sidebar | Pin | Bush | Roller | W(mm) | Average Ultimate Strength Q(KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | R(mm) | F(mm) | |||||
| 0401 | 101.6 | 33.27 | 9.65 | 41.40 | 16.00 | 89.66 | 23.88 | 50.80 | 57.15 | 200 |
| 3135 | 152.4 | 31.75 | 9.65 | 50.80 | 19.05 | 90.68 | 28.70 | 88.90 | 60.45 | 250 |
| 2184 | 152.4 | 34.90 | 9.50 | 50.80 | 22.23 | 95.20 | 31.75 | 76.20 | 91.90 | 356 |
| 3184 | 152.4 | 35.05 | 9.65 | 60.45 | 22.35 | 109.47 | 31.75 | 76.20 | 65.02 | 380 |
| 09060 | 152.4 | 38.10 | 9.50 | 50.80 | 19.05 | 97.00 | 28.70 | 69.85 | 88.90 | 270 |
| 09061 | 152.4 | 38.10 | 9.65 | 57.15 | 19.05 | 97.00 | 28.70 | 69.85 | 88.90 | 380 |
| 09063 | 152.4 | 38.10 | 10.30 | 61.90 | 23.83 | 102.10 | 31.75 | 69.88 | 100.08 | 630 |
| 1796 | 152.4 | 38.10 | 9.65 | 57.15 | 22.23 | 99.00 | 31.75 | 69.85 | 88.90 | 450 |
| 2198 | 152.4 | 38.10 | 12.70 | 57.15 | 22.35 | 112.00 | 31.75 | 69.85 | 98.55 | 450 |
| 9184 | 152.4 | 38.10 | 12.70 | 63.50 | 23.88 | 112.80 | 31.75 | 76.20 | 98.43 | 787 |
| 9185 | 152.4 | 38.10 | 12.70 | 63.50 | 23.88 | 112.80 | 31.75 | 88.90 | 98.43 | 787 |
| F9184 | 152.4 | 39.60 | 12.70 | 63.50 | 23.88 | 112.80 | 31.75 | 76.20 | 98.43 | 787 |
| 8184 | 203.2 | 45.97 | 12.70 | 69.85 | 25.40 | 96.77 | 38.10 | 88.90 | 81.79 | 751.5 |
| B5509 | 228.6 | 37.85 | 9.65 | 57.15 | 22.23 | 76.45 | 31.75 | 76.20 | 79.25 | 450 |
● Sugar Industry
In sugar industry, sugar mill chain has to be abrasion and corrosion resistant since it is inevitably exposed to strong impacts and corrosive environments. We offer a complete range chains in sugar mills from cane carrier, Inter-carrier and bagasse conveyor. We have rich design experience and manufacturing technology, and can provide system solutions for you.
Why Choose Our Sugar Chain?
We are not just chain manufacturers; we are industry partners dedicated to providing comprehensive solutions tailored to your applications. Our expertise in the sugar industry enables us to deliver:
• Durable and Reliable Chains
Engineered with high-grade materials and advanced coatings to withstand the corrosive and abrasive conditions in sugar production.
• Expert Technical Support
Our experienced engineers analyze your challenges and offer customized recommendations to optimize performance and extend chain lifespan.
• Preventive Maintenance Guidance
We provide insights into best practices for conveyor maintenance, ensuring smooth operations and reducing downtime.
The Benefits of Our Chains for the Sugar Industry
• Reduced Downtime
Minimized wear and tear ensures consistent production without unexpected halts.
• Improved Efficiency
Smooth, reliable chain performance enhances conveyor operation, increasing throughput.
• Extended Chain Lifespan
Corrosion-resistant designs and proper maintenance practices significantly reduce replacement frequency.
• Cost Savings
By preventing premature wear and reducing maintenance needs, our solutions lower long-term operational costs.
