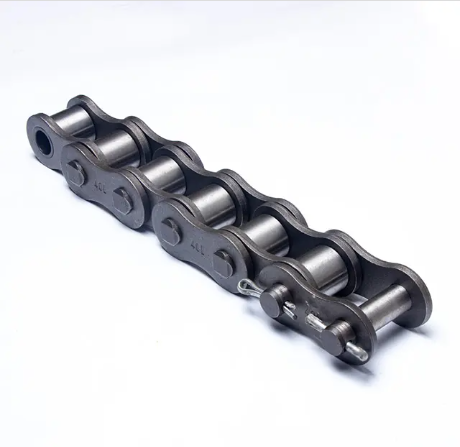

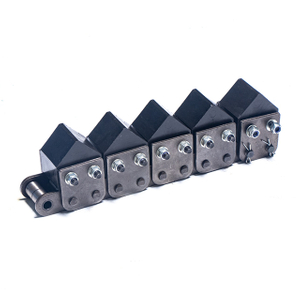

Roller chains are critical components in industrial machinery, automotive systems, and agricultural equipment, serving as the backbone of power transmission. From conveyor systems to bicycle drivetrains, these interlinked metal loops transfer motion efficiently but require precise sizing to ensure optimal performance. Over time, roller chains stretch, wear, or corrode, necessitating replacement. However, selecting the correct replacement demands accurate measurement of key dimensions such as pitch, width, and length. This guide provides a step-by-step methodology for measuring roller chain size, highlighting common pitfalls and best practices to maintain system reliability.
Solutions for Measuring Roller Chain Size
1.Preparing the Chain for Measurement
Before taking any measurements, clean the roller chain thoroughly to remove dirt, grease, and debris. Contaminants can distort readings, especially when using precision tools like calipers. Once cleaned, mount the chain on two sprockets or a tensioning device to simulate operational tension. Apply a load equivalent to one-third of the chain’s minimum ultimate tensile strength and let it rest for 1 minute to stabilize. This step eliminates slack and ensures consistent measurements across all links.
2.Measuring Pitch (Center-to-Center Distance)
Pitch is the most critical dimension of a roller chain, defined as the distance between the centers of two adjacent pins. To measure pitch:
Use a digital caliper or micrometer for accuracy.
Select 6–10 consecutive links to average out manufacturing tolerances.
Place the caliper jaws on the pin centers of the first and last link in the selected segment.
Divide the total length by the number of links minus one (e.g., a 10-link segment measuring 127 mm has a pitch of 12.7 mm).
For example, an ANSI 40 roller chain has a standard pitch of 12.7 mm (0.5 inches), while a ISO 60 chain measures 15.875 mm (0.625 inches).
3.Determining Chain Width
Chain width refers to the distance between the inner plates of a single link. Measure this dimension using calipers:
Clamp the jaws on the flat surfaces of the inner plates.
For double-strand chains, measure the overall width across both strands.
Compare the result to manufacturer specifications. A worn chain may exhibit reduced width due to plate elongation.
4.Calculating Chain Length and Elongation
To assess chain health, calculate its elongation percentage:
Measure the inner link length (L1) and outer link length (L2) of the same segment.
Compute the average length: L= 2/(L1+L2)
Compare L to the theoretical length (pitch × number of links).
Elongation (%) = Theoretical Length(L−Theoretical Length)×100.
Industry standards recommend replacing chains when elongation exceeds 1.5–2% to prevent sprocket damage.
Key Considerations During Measurement
Avoid External Forces: Ensure the chain is tensioned only by the applied load, not by manual pulling, which can stretch the links.
Use Calibrated Tools: Uncalibrated calipers may introduce errors of up to 0.1 mm, leading to mismatched replacements.
Account for Chain Type: ANSI chains use fractional-inch pitches, while ISO chains use metric measurements. Cross-referencing standards is essential.
Check for Wear Patterns: Uneven elongation across links indicates misalignment or sprocket damage, requiring additional inspections.
Conclusion
Accurately measuring roller chain size is a non-negotiable step in maintaining mechanical efficiency and preventing costly breakdowns. By following structured steps—cleaning, tensioning, measuring pitch and width, and calculating elongation—technicians can ensure compatibility with original equipment specifications. Attention to detail, such as using calibrated tools and accounting for chain type, further enhances measurement reliability. Whether in a factory, farm, or garage, mastering roller chain measurement empowers users to extend component lifespans, optimize performance, and safeguard against unplanned downtime. As industrial systems grow more complex, these skills remain indispensable for engineers and mechanics alike.
