Short Pitch Conveyor Roller Chain With Attachments

● Our transmission standard roller chain is made from strong alloy material, ensuring durability and reliability in various applications.
● We offer non-standard conveyor chain solutions, allowing you to tailor our products to meet your specific needs, whether it's for manufacturing plants or construction works.
● Our product is certified to ISO 9001:2015, ensuring it meets the highest quality and safety standards.
● We provide OEM services and offer free samples for trial orders, enabling you to test our products before making a purchase, and ensuring a seamless integration into your production process.

Availability:



Inquire

Product Features

Production

Company Advantages

Service Support

Product Overview

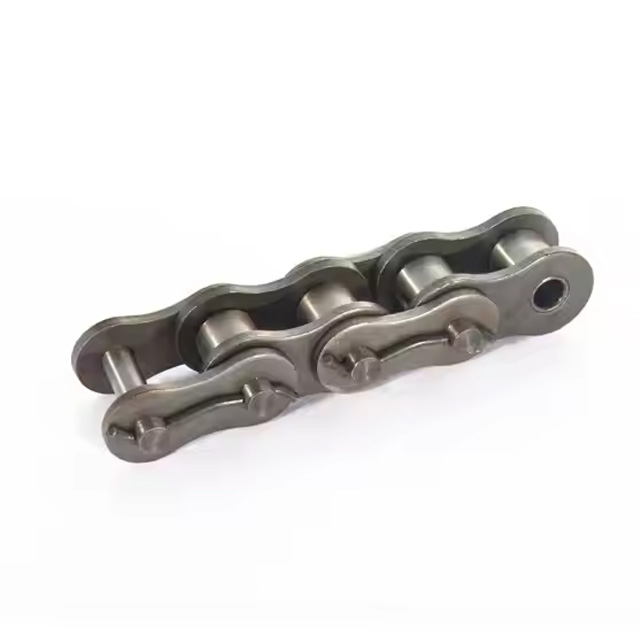

The JQ® Short Pitch Conveyor Roller Chain with Attachments is a high-precision conveyor chain designed for material handling and light-to-medium duty transmission, manufactured according to ISO 606 / DIN 8187 standards.

This chain features:

Short pitch design for precise positioning and smooth operation
Metal or plastic attachments for mounting pallets, trays, products, or custom fixtures
High-strength alloy steel construction with heat-treated pins, rollers, and plates for durability

It is ideal for conveying light-to-medium loads in food, packaging, and industrial applications, where accuracy, low noise, and smooth operation are required.

Key Features

Short Pitch Design
Smaller pitch ensures precise positioning and smoother motion
Customizable Attachments
Flights, lugs, cleats, hooks, or trays according to your product requirements
Durable Alloy Steel Construction
Provides excellent tensile strength, wear resistance, and long service life
Advanced Heat Treatment
Pins, rollers, and plates are case-hardened for optimal durability
Low Noise & Smooth Operation
Short pitch and optimized attachments reduce vibration and noise
Easy Installation & Maintenance
Modular design allows quick replacement of links or attachments

Technical Specifications

Parameter	Value / Specification
Model	Short Pitch Conveyor Roller Chain with Attachments
Standard	ISO 606 / DIN 8187
Pitch (P)	12.7 mm / 15.875 mm / 19.05 mm (customizable)
Roller Diameter (d1)	9.5 mm / 12.7 mm / 15.88 mm
Width Between Inner Plates (b1)	10.16 mm / 12.7 mm / 17.02 mm
Pin Diameter (d2)	6.35 mm / 7.94 mm / 8.28 mm
Material	High-Grade Alloy Steel (chain) + Metal/Plastic Attachments

Note: Attachment type, size, and spacing can be customized according to your conveyor system.

Industrial Applications

Food & Beverage Industry
Tray handling, bottle conveyors, packaging lines
Pharmaceutical & Cosmetics
High-precision, hygienic conveying of products
Automotive & Electronics
Component assembly lines and small parts transfer
Light Manufacturing & Material Handling
Pallet, tray, or modular product movement

Note: Suitable for light-to-medium duty conveying. Heavy bulk material handling requires welded or heavy-duty chains.

Product Advantages

High precision short pitch chain for smooth, accurate operation
Versatile attachments customizable for product type and spacing
High tensile strength with durable construction
Easy maintenance and modular replacement
Compatible with standard ISO / DIN sprockets

Customization Options

Attachment types: flights, lugs, cleats, hooks, trays
Single-strand, duplex, or triplex configurations
Stainless steel chain for corrosion-resistant applications
Special surface treatment: zinc plating, black oxide, or anti-rust coating
Custom pitch and link dimensions based on application
