Product Overview

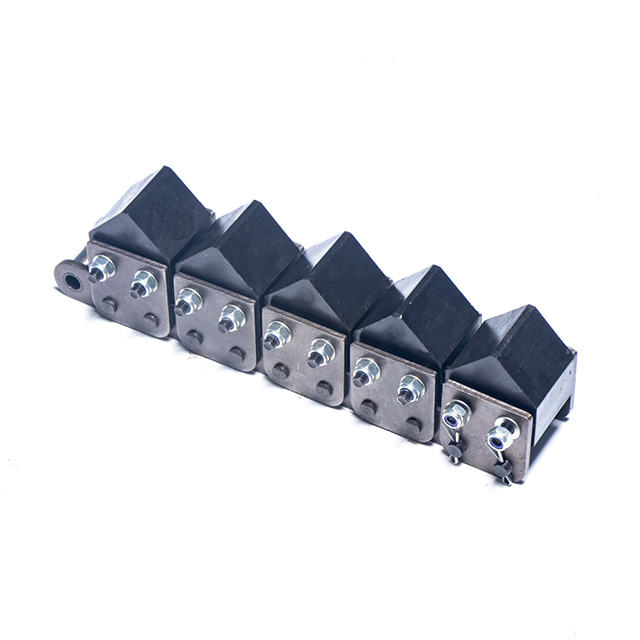

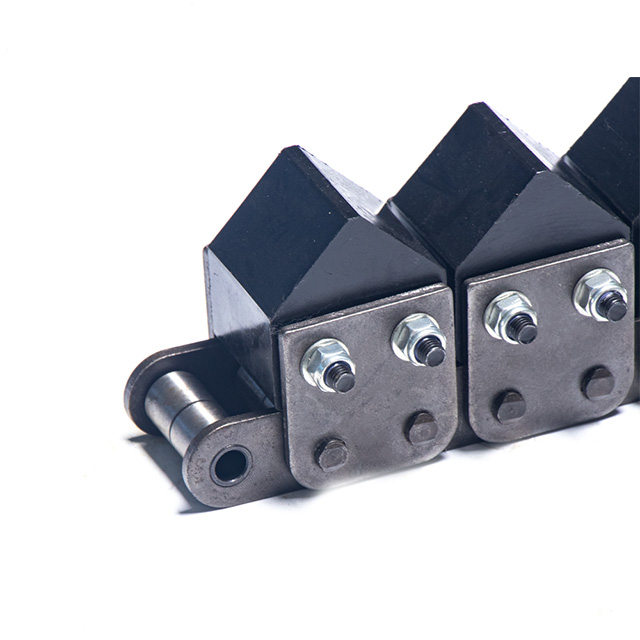

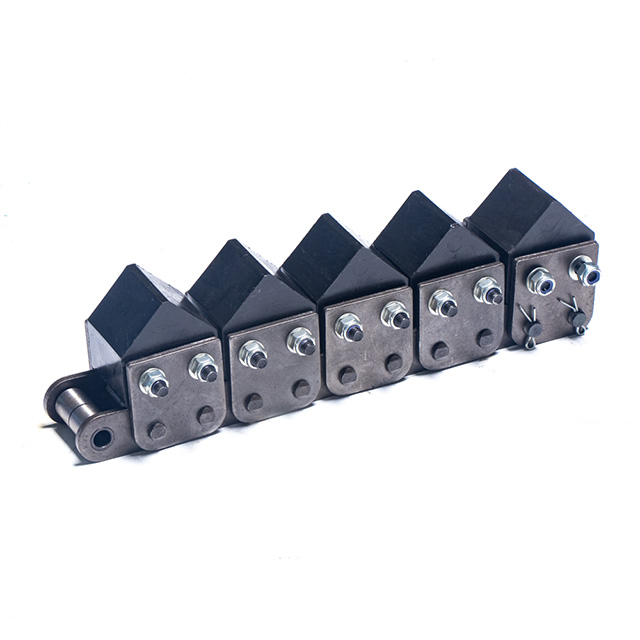

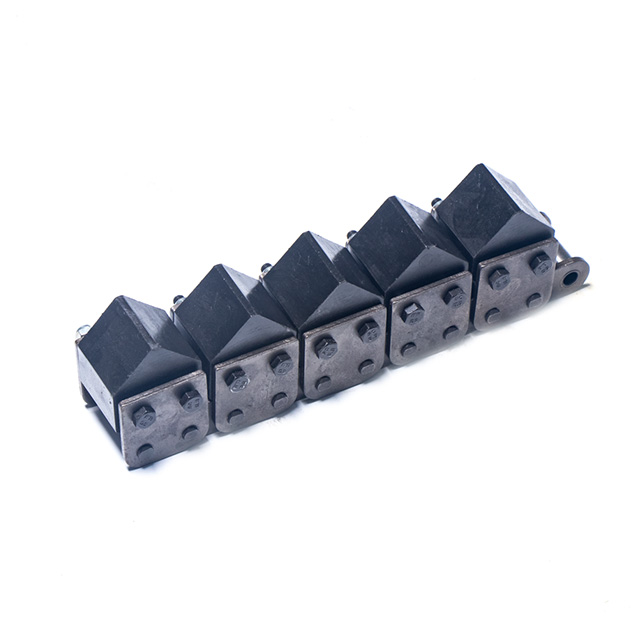

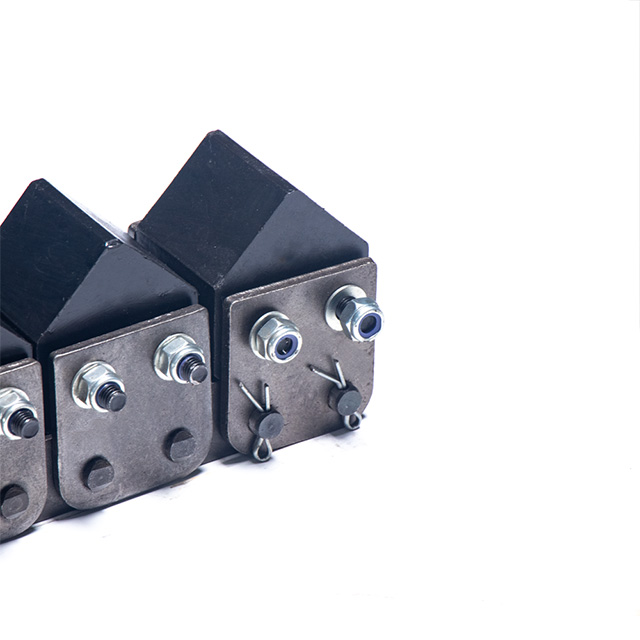

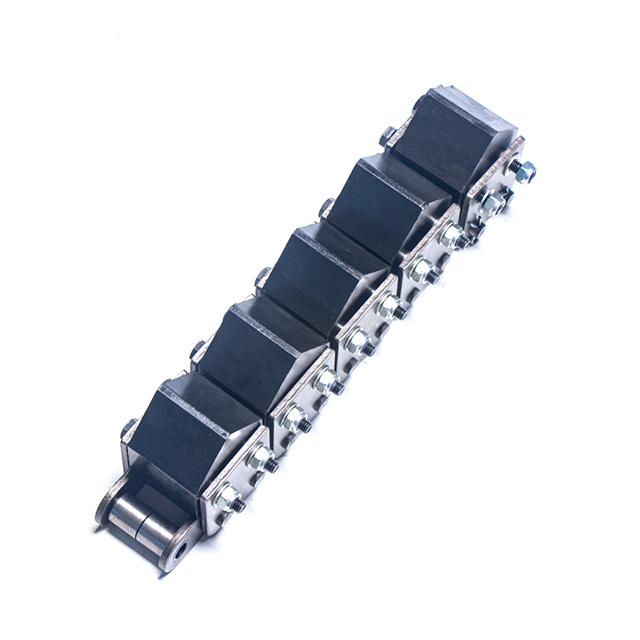

The JQ® Roller Chain with Plastic Attachment is a high-performance conveyor and power transmission chain, manufactured according to ISO 606 / DIN 8187 standards.

This chain combines the strength and durability of standard roller chains with versatile plastic attachments, enabling direct mounting of pallets, trays, or products for efficient material handling.

Constructed from high-grade alloy steel with precision heat-treated pins and plates, and coupled with durable plastic attachments, this chain ensures:

Smooth, low-friction conveying
Minimal noise and vibration
Long service life in industrial environments

Primarily designed for light to medium-duty conveying and auxiliary power transmission.

Key Features

ISO / DIN Standard Chain Base
Compatible with standard sprockets and industrial equipment
Plastic Attachment Options
Customizable hooks, flights, lugs, or cleats to meet your conveying needs
Durable Alloy Steel Construction
Chain body provides high tensile strength and wear resistance
Advanced Heat Treatment
Pins, rollers, and plates are case-hardened for optimal durability
Smooth Operation
Plastic attachments reduce friction and noise for efficient conveying
Easy Installation & Maintenance
Modular design allows quick replacement of damaged links or attachments

Technical Specifications

Parameter	Value / Specification
Model	Roller Chain with Plastic Attachment
Standard	ISO 606 / DIN 8187
Pitch (P)	25.4 mm / 38.1 mm / 50.8 mm (customizable)
Roller Diameter (d1)	15.88 mm / 19.05 mm / 25.4 mm
Width Between Inner Plates (b1)	17.02 mm / 20.64 mm / 31.75 mm
Pin Diameter (d2)	8.28 mm / 9.53 mm / 12.7 mm
Material	Alloy Steel chain + Durable Engineering Plastic Attachments

Note: Plastic attachments can be customized for your product size, weight, and spacing requirements.

Industrial Applications

The Roller Chain with Plastic Attachment is widely used in:

Food & Beverage Industry
Bottling, tray handling, cooling, and packaging lines
Automotive & Parts Handling
Conveyor systems for assembly lines, small parts transfer
Pharmaceutical & Packaging
Precise, hygienic conveying of packaged products
Light Manufacturing & Material Handling
Pallet, tray, or modular product movement

Note: Designed for light to medium-duty conveying. Heavy bulk material handling requires welded or heavy-duty chains.

Product Advantages

Combines strong metal chain with versatile plastic attachments
Smooth, low-noise operation
Easy to maintain and customize
High tensile strength and wear resistance
Suitable for ISO/DIN standard sprockets worldwide

Customization Options

Plastic attachment type: Flights, lugs, hooks, cleats
Custom spacing and dimensions to match your conveyor system
Single-strand or multi-strand configurations
Stainless steel chain for corrosion resistance
Special surface treatments or lubrication on chain links
