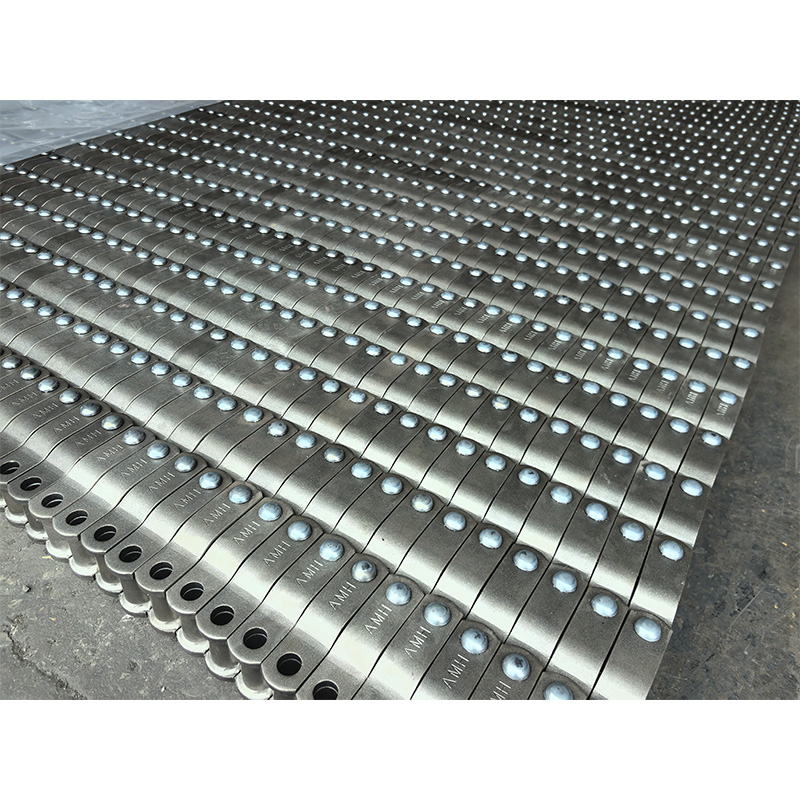

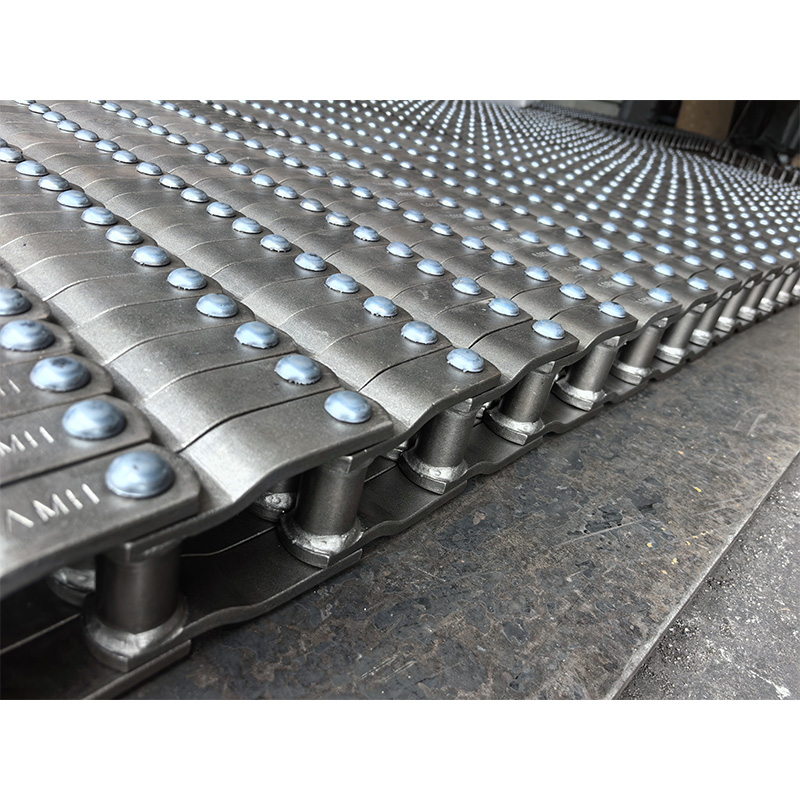

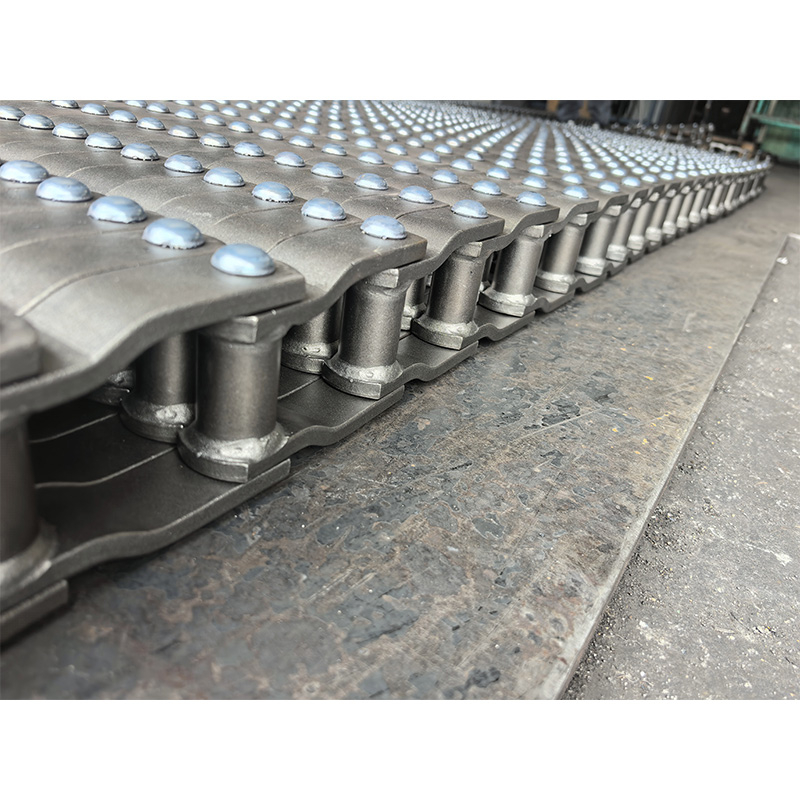

WH124 Welded Chain Advantages:
● Superior Durability: Through-hardened pins, bushings, and side plates ensure maximum resistance to impact, fatigue, and elongation.
● Enhanced Wear Life: Induction-hardened rivets provide superior surface hardness, reducing wear at critical stress points.
● Built for Heavy Loads: Robust design guarantees reliable performance under continuous high-tension operations.
● Customizable Solutions: Available in various sizes, attachments, and surface treatments to meet your specific OEM equipment requirements.
●ISO 9001 Certified: Every chain is manufactured under strict quality control protocols, guaranteeing consistent performance batch after batch.
Brand Reputation: JINQIU CHAIN, as a well-known and welded chain manufacturer, we offer a full range of WH and WR narrow series and WDH wide series welded steel chains. Our chains are sold to more than 50 countries around the world and are ISO9001 certified and have multiple patents and SGS certificates.
Quality & Performance: Our welded steel chains are specially designed for demanding applications where strong impact and material wearing and lots of dust.
Price & Value: These power transmission product or conveyor part are engineered from special alloy steels using finite element analysis technology and best-in-class manufacturing technology and equipment. As a result, the welded cranked link chains have excellent resistance to high load impact and long lasting wear resistance while providing low cost.
Supply Chain: Jointed with various attachments in virtue of welding or bolting methods, the welded steel chains can meet the needs for diversity of different production lines. They are mainly used in woodworking, grain and oil processing and paper making industries and more.
Drawings:
Welded Steel Drag Chains'
Welded Chain Specification Parameters
| Chain No. | Average Pitch | E(mm) | Sidebar | Pin | Barrel | F(mm) | Min.Ult. Strength (KN) | Avg.Weight chain kg/FT | ||
| T(mm) | H(mm) | D(mm) | A(mm) | R(mm) | ||||||
| WH78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 146.80 | 2.00 |
| WH78XHD | 66.95 | 25.40 | 9.50 | 31.75 | 14.29 | 82.00 | 25.40 | 50.80 | 163.50 | 2.80 |
| WH82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 160.00 | 2.20 |
| WH82XHD | 78.10 | 28.60 | 9.70 | 38.10 | 19.05 | 96.50 | 31.75 | 60.90 | 254.00 | 3.90 |
| WH9103HD | 78.11 | 31.80 | 9.70 | 38.10 | 19.10 | 92.30 | 31.80 | 57.90 | 287.00 | 4.00 |
| WH124 | 101.60 | 38.10 | 9.70 | 38.10 | 19.05 | 107.00 | 31.75 | 71.40 | 250.00 | 3.60 |
| WH124XHD | 103.20 | 38.10 | 12.70 | 50.80 | 25.40 | 119.50 | 44.45 | 76.20 | 542.00 | 6.40 |
| WH111 | 120.90 | 57.10 | 9.60 | 38.10 | 19.00 | 123.90 | 31.70 | 85.80 | 254.00 | 3.64 |
| WH106 | 152.40 | 38.10 | 9.70 | 38.10 | 19.05 | 107.00 | 31.75 | 69.85 | 250.00 | 3.00 |
| WH720C | 152.40 | 28.58 | 9.70 | 38.10 | 19.05 | 96.75 | 31.75 | 60.32 | 254.00 | 2.95 |
| WH110 | 152.40 | 47.70 | 9.60 | 38.10 | 19.00 | 117.30 | 31.70 | 76.20 | 357.00 | 2.14 |
| WH106XHD | 153.67 | 38.10 | 12.70 | 50.80 | 25.40 | 120.20 | 44.45 | 76.20 | 542.00 | 5.60 |
| WH132 | 153.67 | 76.20 | 12.70 | 50.80 | 25.40 | 156.00 | 44.45 | 112.30 | 542.00 | 6.50 |
| WH132XHD | 153.67 | 76.20 | 15.88 | 50.80 | 25.40 | 168.86 | 44.45 | 118.60 | 543.00 | 6.90 |
| WH150 | 153.67 | 76.20 | 12.70 | 63.50 | 25.40 | 156.00 | 44.50 | 112.30 | 620.00 | 7.40 |
| WH155 | 153.67 | 73.20 | 12.70 | 63.50 | 28.40 | 158.70 | 41.10 | 111.20 | 771.00 | 7.71 |
| WH157 | 153.67 | 76.20 | 15.90 | 63.50 | 29.10 | 171.00 | 44.50 | 117.50 | 820.00 | 9.20 |
| WH150XHD | 153.67 | 76.20 | 15.70 | 63.50 | 28.40 | 171.40 | 41.10 | 117.30 | 920.00 | 7.98 |
| WH159 | 155.57 | 69.85 | 15.90 | 76.20 | 31.75 | 170.50 | 50.80 | 117.50 | 950.00 | 11.30 |
As a trusted OEM chain supplier, Jinqiu Chain designed the wh124 chain to exceed industry standards. Unlike standard welded chains, the WH124IBR undergoes a specialized heat-treatment process. This results in a perfect balance between a tough, durable core and a hard, wear-resistant surface, minimizing downtime and reducing your total cost of ownership.
● Mining & Quarrying
High-strength handling of heavy aggregates and minerals.
● Lumber & Wood Processing
Withstands abrasive sawdust and heavy log conveying.
● Bulk Material Handling
Reliable operation in cement, grain, and fertilizer transportation.
● Steel Mill & Metallurgy
Durable performance in demanding high-temperature environments.
Why Choose Our WH124 Chains for Your Wood Industry Needs?
With over 36 years of experience and a 60,000㎡ state-of-the-art factory, we control the entire production process—from raw material selection to final assembly. This vertical integration allows us to ensure top-quality control and offer competitive pricing for both large-volume orders and customized projects.
● Paper Industry
WDH series chains are widely used in afforestation, logging, rough processing of logs, deep processing of wood, pulp preparation, papermaking and other production activities, mainly involving wood processing machinery, wood-based panel equipment, papermaking equipment, etc., for transmitting power, conveying products and materials.
● Food Industry
Welded mill chains are widely used in the food industry in conveying systems, driving of food processing machinery, packaging equipment, handling and storage of freezing and refrigeration equipment, etc. Due to its high strength, wear resistance and corrosion resistance, steel chains can withstand high loads, operate stably in harsh environments, meet the strict hygiene requirements of the food industry, and are easy to clean and disinfect. In addition, with the advancement of automation and intelligence, steel chains also play an important role in food production lines, improving production efficiency and product quality.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
