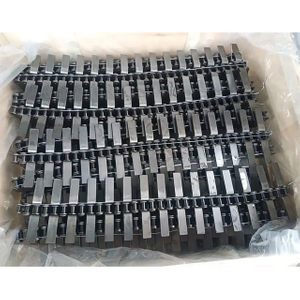

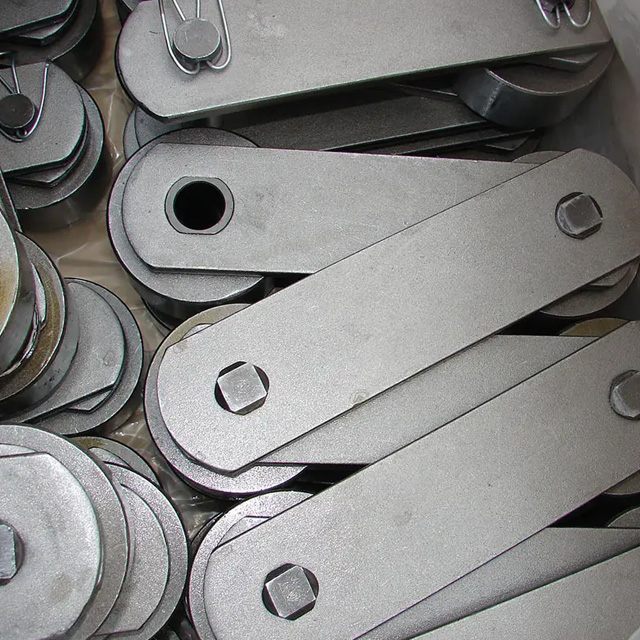

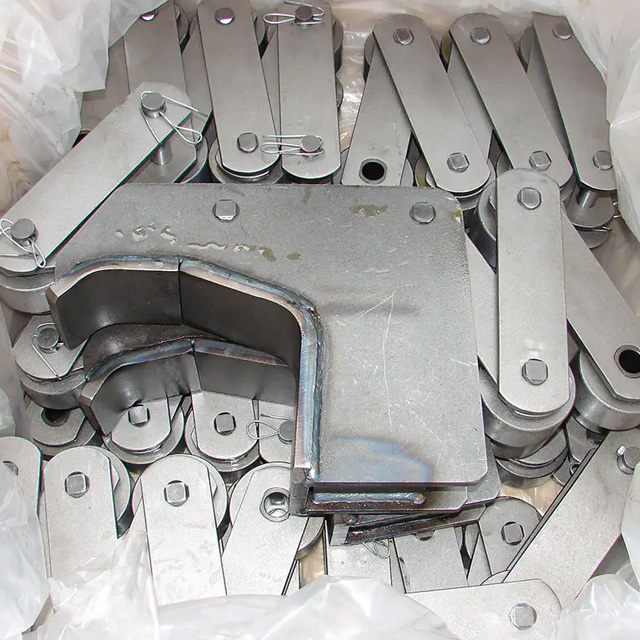

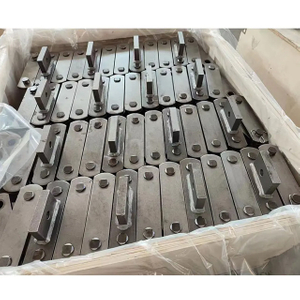

M315 Metric Series Conveyor Chain

● The M315 metric series conveyor chain is made from strong alloy material, ensuring durability and reliability in various industrial applications, such as manufacturing plants and construction works.
● We offer customization support for both OEM and ODM, allowing us to tailor the product to meet specific user requirements.
● Our product meets the ISO 9001:2015 standard, ensuring that it adheres to international quality management systems.
● The M315 metric series conveyor chain is suitable for various industries, including manufacturing plants and construction works, making it a versatile solution for diverse applications.

Availability:



Inquire

Product Features

Applications

Production

Company Advantages

Service Support

Brand Reputation: JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of metric conveyor chain.

Quality & Performance: Our product meets the ISO 9001:2015 standard, ensuring that it adheres to international quality management systems.

Price & Value: Metric conveyor chain is according to ISO and DIN standards, mainly including M type, MT type and MC type.

Supply Chain: JINQIU elevator chains are designed and manufactured by ourselves, an expert in the manufacture of heavy duty bucket elevators for cement mill service.

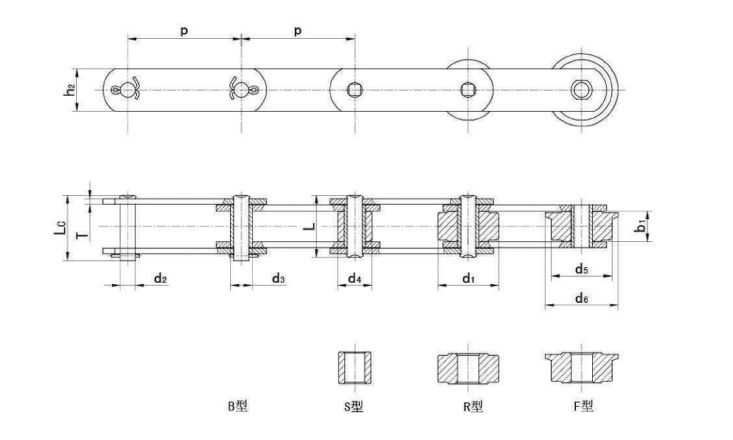

Drawings:

Specification Parameters

Chain No.	Pitch						Roller Dimension			BarrelDia	InsideWidth	SidebarHeight	Pin Dia	PinLength	UlimateTensileStrength
	Pitch						R Type	F Type	S Type	BarrelDia	InsideWidth	SidebarHeight	Pin Dia	PinLength	UlimateTensileStrength
	P						d1=d5	d6(max)	d4(max)	d3	b1(min)	h2(max)	d2(max)	L(max)	Q
	mm						mm	mm	mm	mm	mm	mm	mm	mm	KN
M20	50	63	80	100	125	160	25	35	12.5	9	16	19	6.0	35	20
M28	63	80	100	125	160	200	30	40	15.0	10	18	21	7.0	40	28
M40	80	100	125	160	200	250	36	45	18.0	12.5	20	26	8.5	45	40
M56	80	100	125	160	200	250	42	55	21.0	15	24	31	10.0	52	56
M80	100	125	160	200	250	315	50	65	25.0	18	28	36	12.0	62	80
M112	125	160	200	250	315	400	60	75	30.0	21	32	41	15.0	73	112
M160	160	200	250	315	400	500	70	90	36.0	25	37	51	18.0	85	160
M224	200	250	315	400	500	630	85	105	42.0	30	43	62	21.0	98	224
M315	200	250	315	400	500	630	100	125	50.0	36	48	72	25.0	112	315
M450	250	315	400	500	630	800	120	150	60.0	42	56	82	30.0	135	450
M630	250	315	400	500	630	800	140	175	70.0	50	66	103	36.0	154	630
M900	315	400	500	630	800	1000	170	210	85.0	60	78	123	44.0	180	900

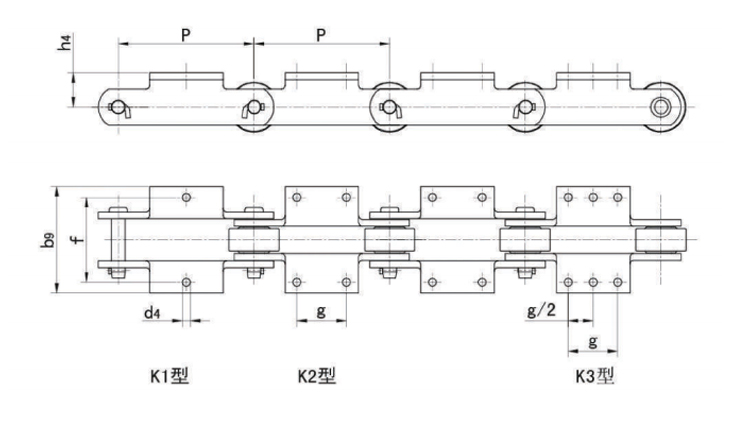

Drawings:

M56.3

Specification Parameters

Chain No.	K Type
	dt	h4	f	b9	Distance between the holes
	mm	mm	m	mm	P	g	P	9	P	9
M20	6.6	16	54	84	63	20	80	35	100	50
M28	9.0	20	64	100	80	25	100	40	125	65
M40	9.0	25	70	112	80	20	100	40	125	65
M56	11.0	30	88	140	100	25	125	50	160	85
M80	11.0	35	96	160	125	50	160	85	200	125
M112	14.0	40	110	184	125	35	160	65	200	100
M160	14.0	45	124	200	160	50	200	85	250	145
M224	18.0	55	140	228	200	65	250	125	315	190
M315	18.0	65	160	250	200	50	250	100	315	155
M450	18.0	75	180	280	225	85	315	155	400	240
M630	24.0	90	230	380	315	100	400	190	500	300
M900	30.0	110	280	480	315	65	400	155	500	240

● Food Industry

Conveyor chains also play a vital role in food processing and packaging, especially when handling heavy objects or in environments that require high temperature and corrosion resistance. They are used for:

Food production lines: conveying raw materials, semi-finished products or finished products.

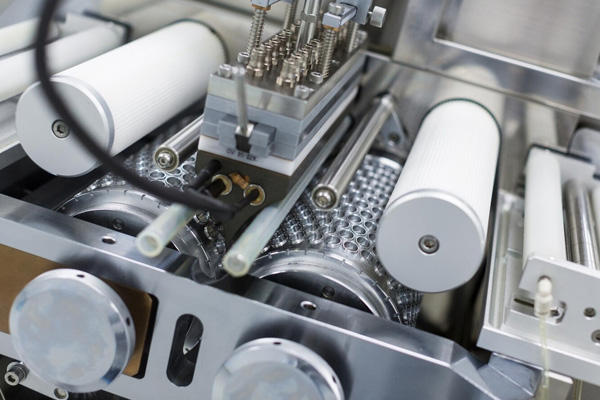

Packaging equipment: material transfer in automated packaging production lines.

Beverage production: handling bottled drinks, canned drinks or other packaged drinks.

● Manufacturing Industry

In the manufacturing industry, conveyor chains are often used in the material handling and assembly process of production lines. They help to efficiently move materials, semi-finished products or finished products on the production line. Common applications include:

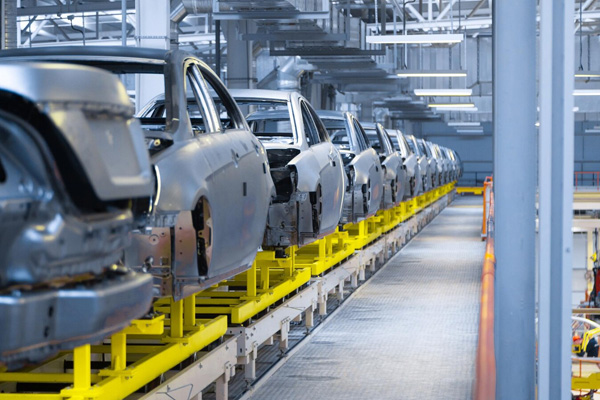

Automobile manufacturing: used in automobile assembly lines to move parts or complete vehicles.

Electronic product assembly: used to convey electronic components, PCB boards, etc.

Home appliance production: used for the assembly and handling of home appliance products.

1.2

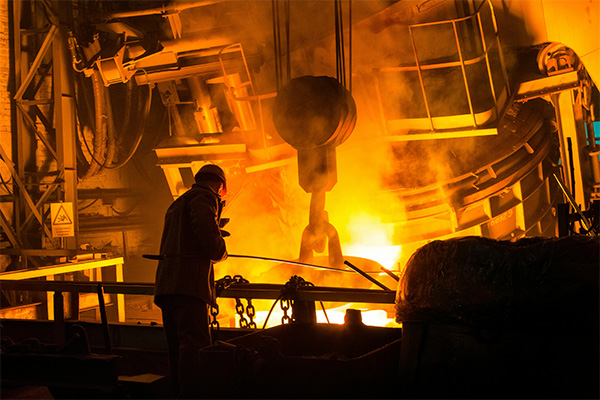

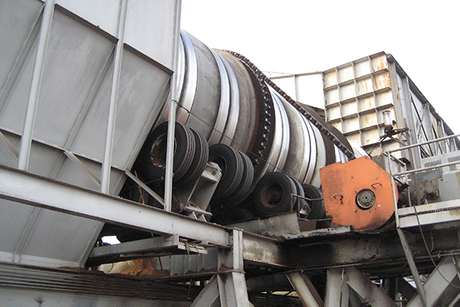

● Mining and Metallurgical Industries

Conveyor chains are often used in the mining and metallurgical industries for the transportation of heavy and granular materials. They can withstand large weights and operate under high temperature and high load conditions. For example:

Ore conveying: used for the transportation of ore, coal or other raw materials.

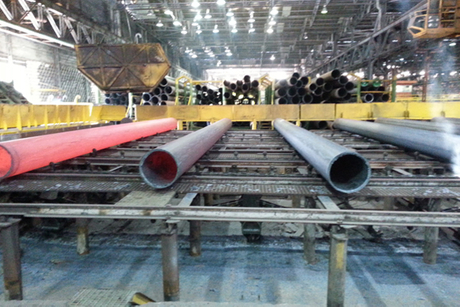

Steel mills: used for the transportation of coal, waste, etc. during the smelting process.

1.3

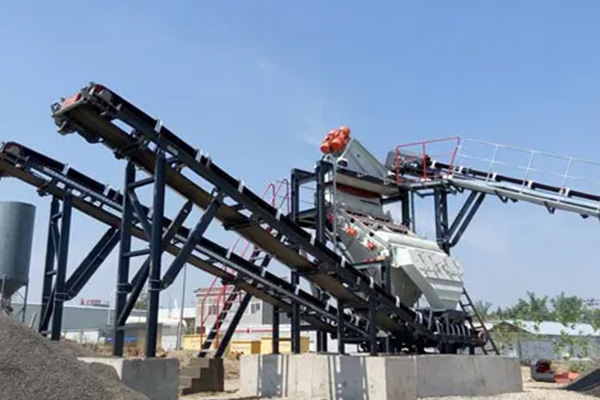

● Construction Machinery Industry

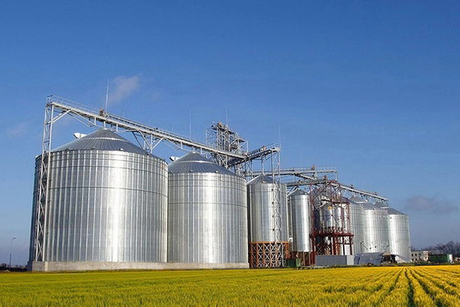

In the construction and building materials industry, conveyor chains are used to transport heavy objects such as cement, sand, bricks, etc. They perform well in harsh working environments and can withstand heavy loads. For example:

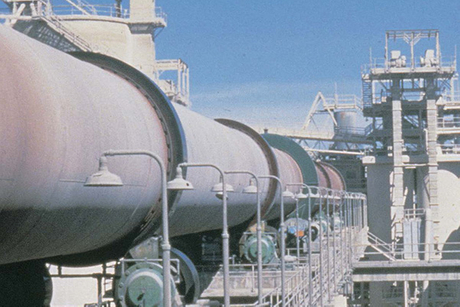

Cement plants: used for the transportation of cement powder and granular materials.

Construction sites: transporting construction materials, tools, etc.

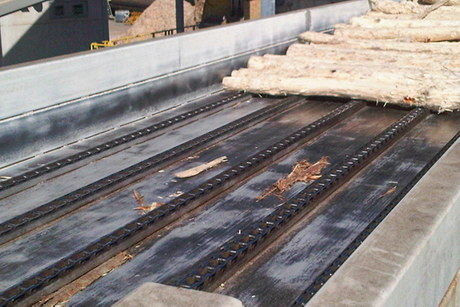

● Paper and Printing Industry

In the paper and printing industry, conveyor chains are used to transport paper, printed materials, parts of printing equipment, etc. They are often used in the handling, stacking and conveying of paper. For example:

Paper production: used to transport pulp, paper rolls, finished paper, etc.
Printing production: conveying finished or semi-finished printed products.

1.4

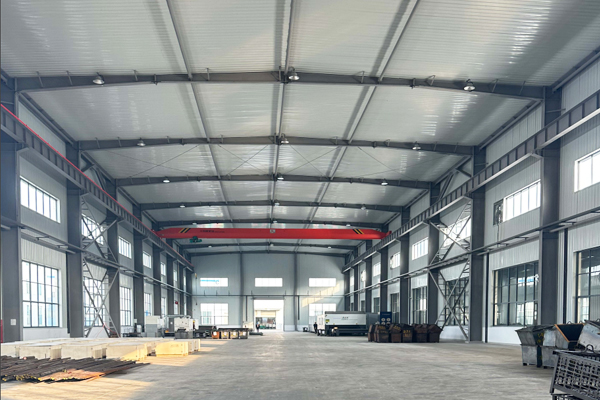

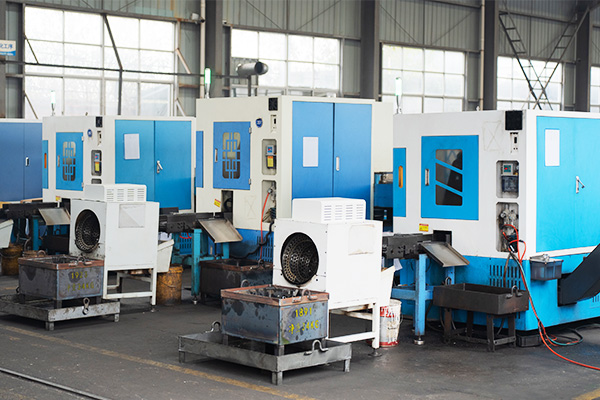

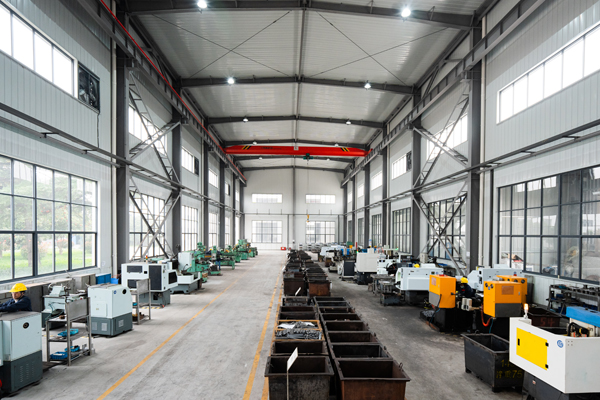

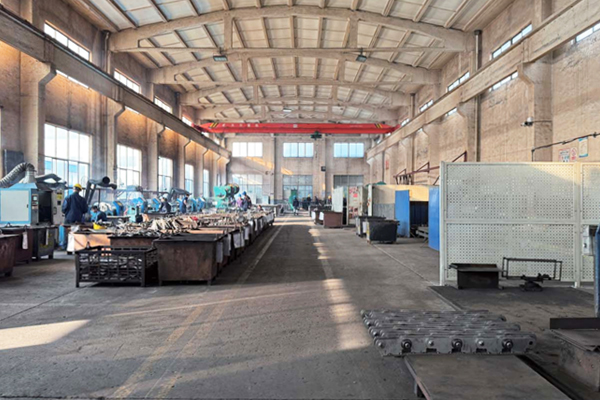

Workshops

We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.

Automation Group

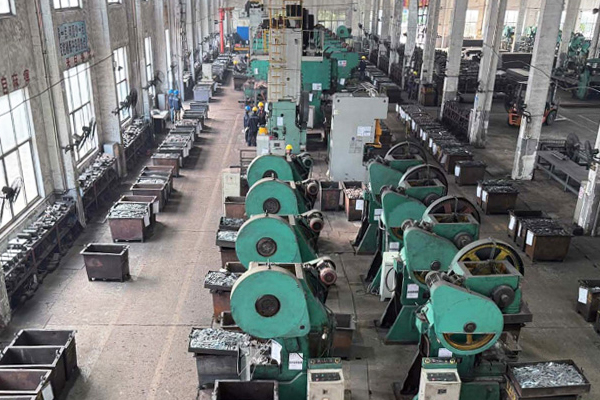

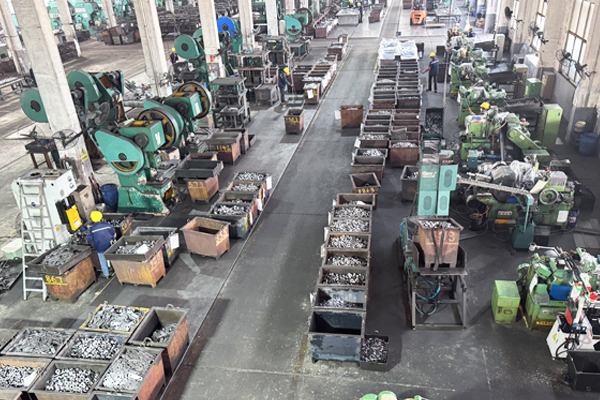

Punching Group

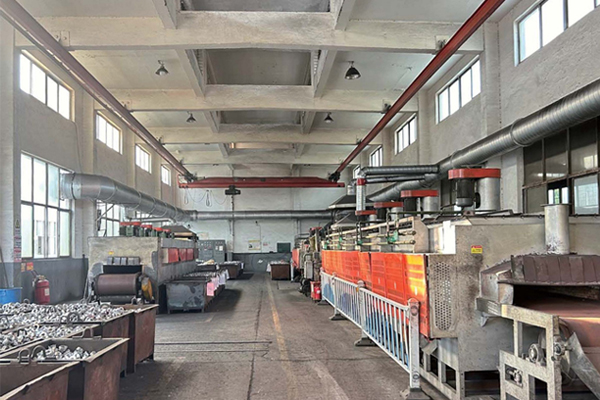

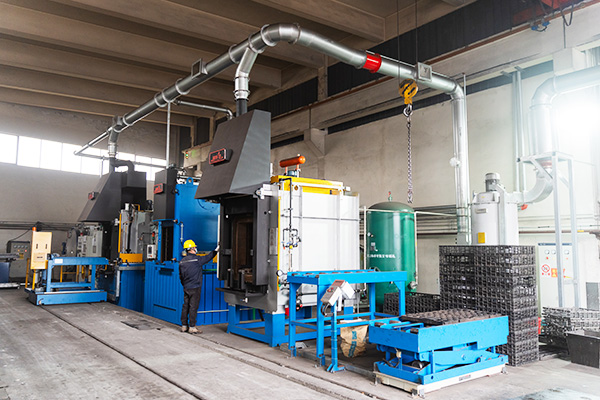

Heat Treatment Workshop

Welding Workshop

Assembly Group

Laser Cutting Workshop

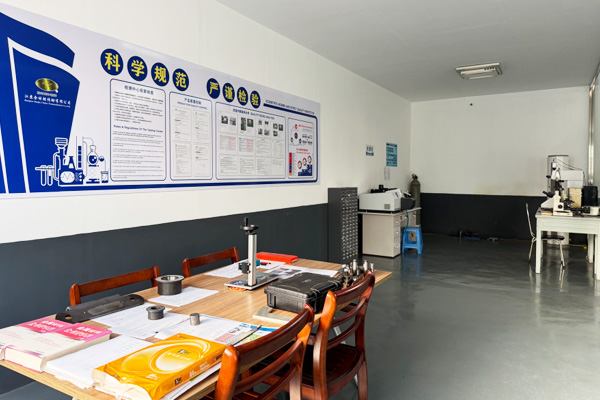

Quality Testing Center

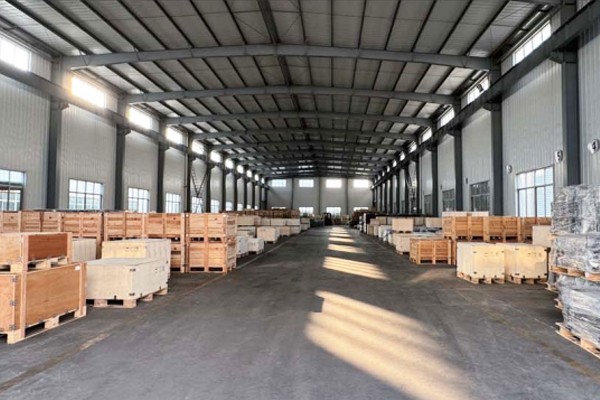

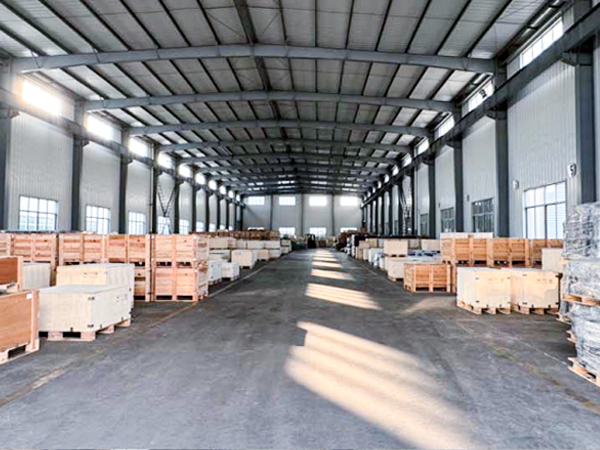

Stocking Warehouse

Equipment

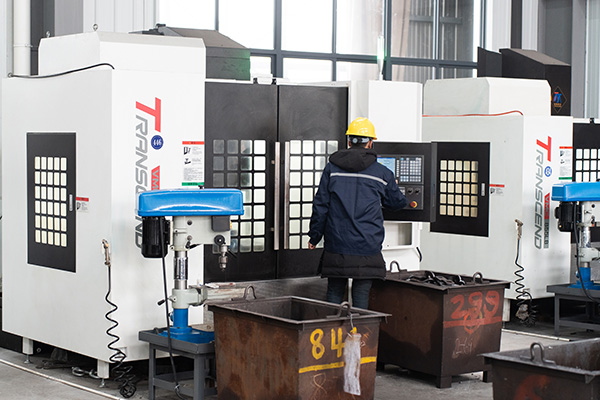

CNC Milling Machine

Cutting Machine

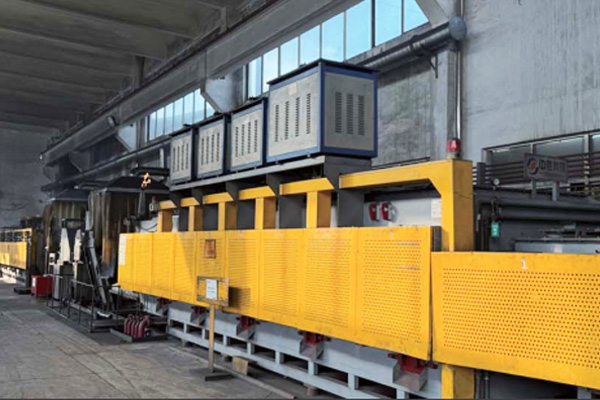

Heat Treatment with Automatic Mesh Belt Conveyor Furnace

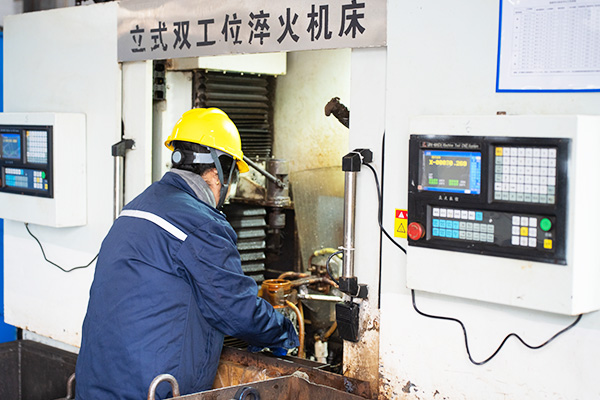

Induction Hardened Machine

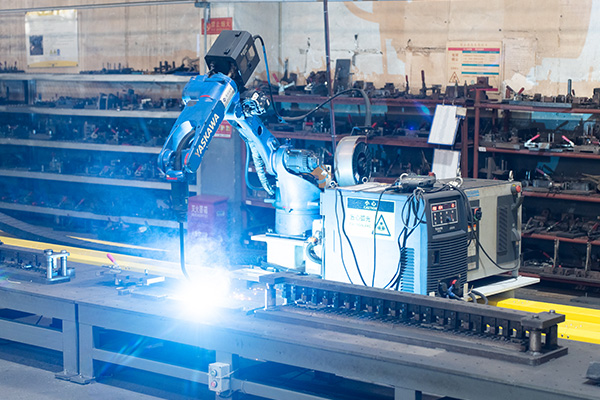

Welding Robot

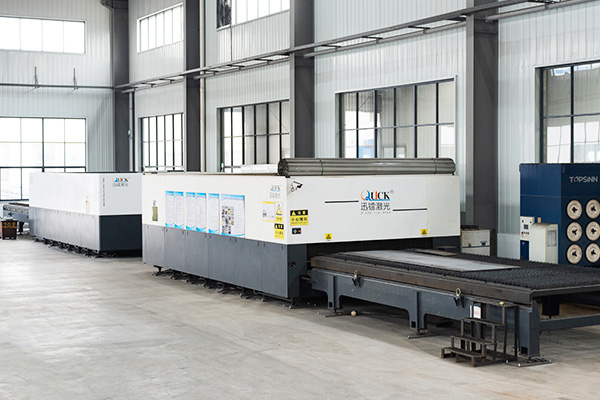

Laser Cutting Equipment

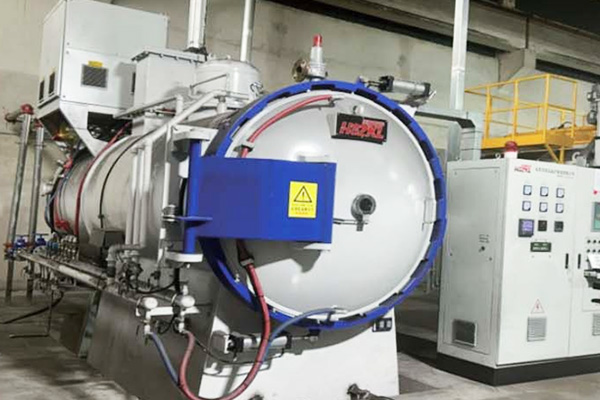

Vacuum Furnace

Multipurpose Furnace

Quality Testing

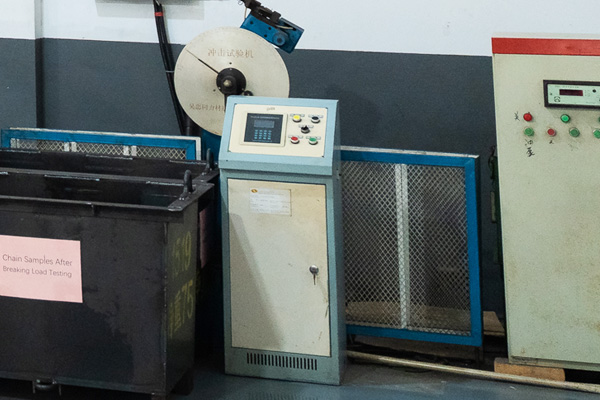

Impact Testing Machine

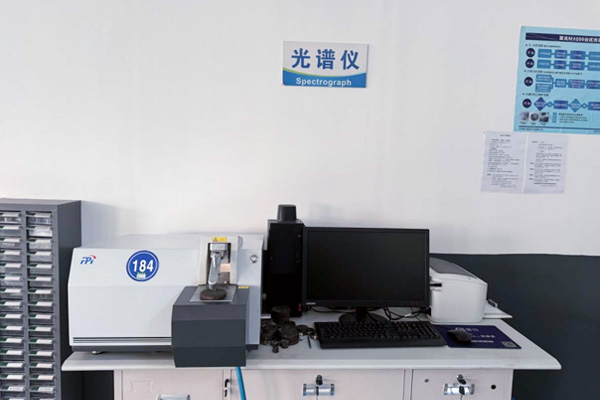

Spectrograph

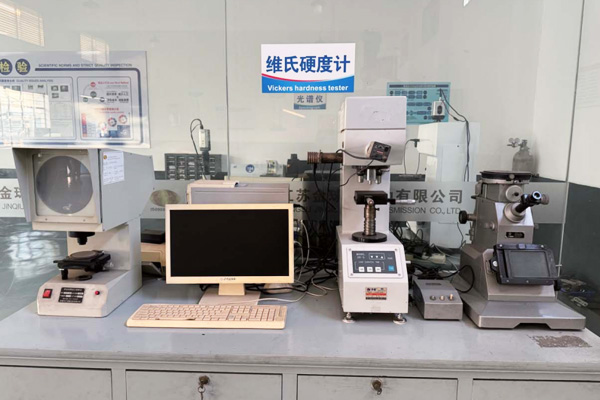

Vickers Hardness Tester

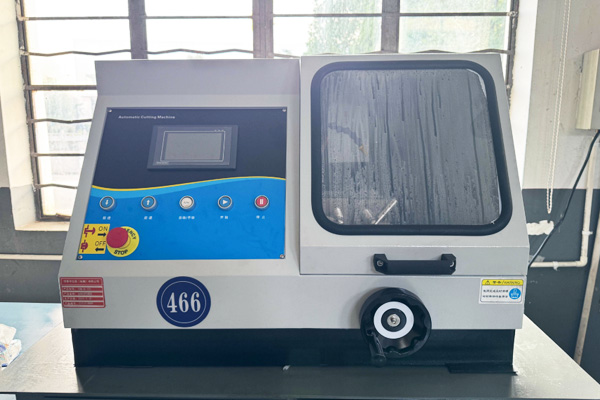

Metallographic Sample Cutting Machine

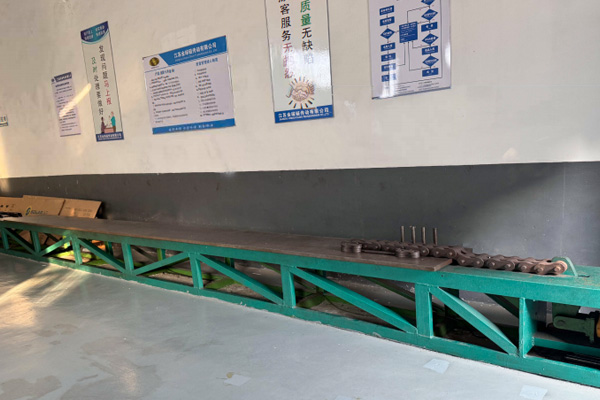

Pretension Machines

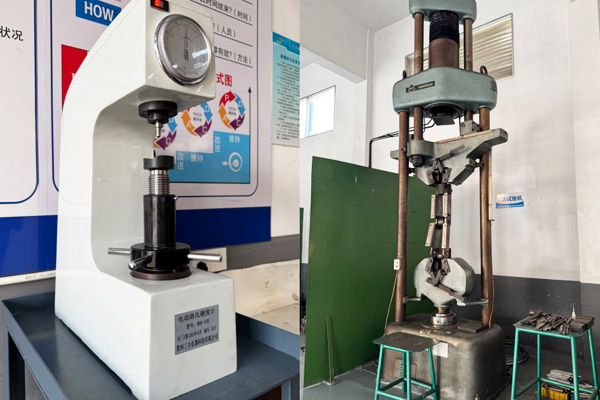

Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine

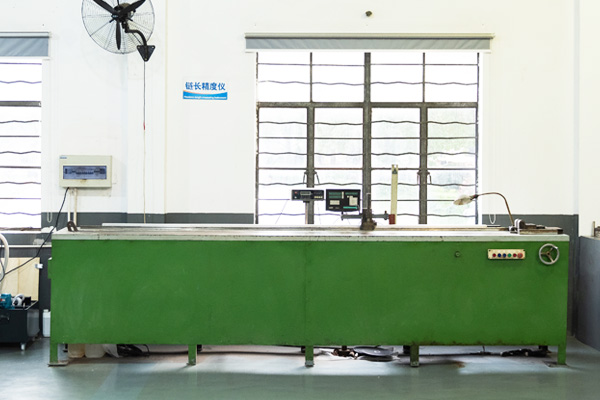

Precision Length Measuring Instrument

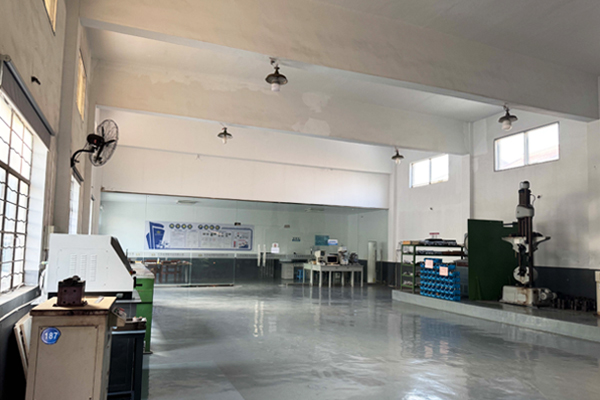

Office

Why Choose JINQIU?

● Over 36 Years' History in Designing and Manufacturing Industrial Chains

With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.

We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.

● Innovative R&D Team Provides Customized Chain Solutions

We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.

● Flexible Customization & Trial Orders to Meet Your Needs

At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.

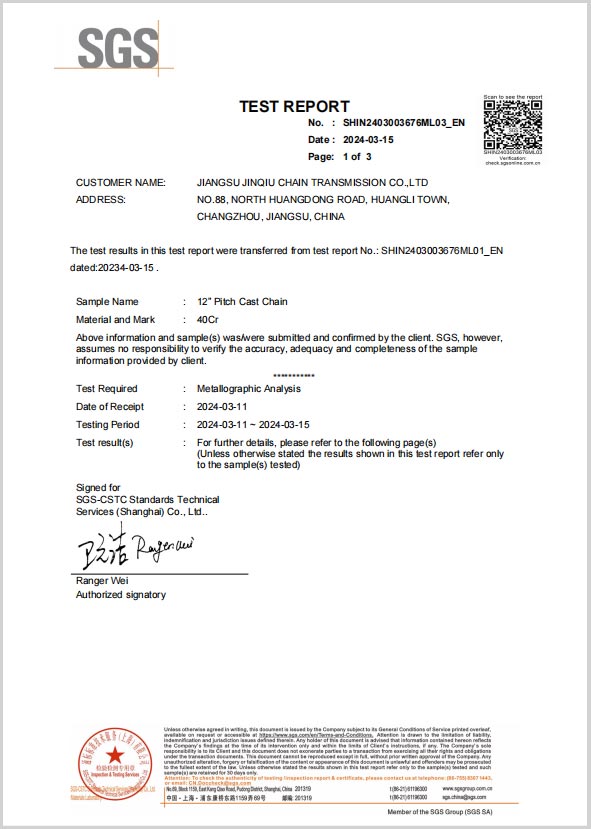

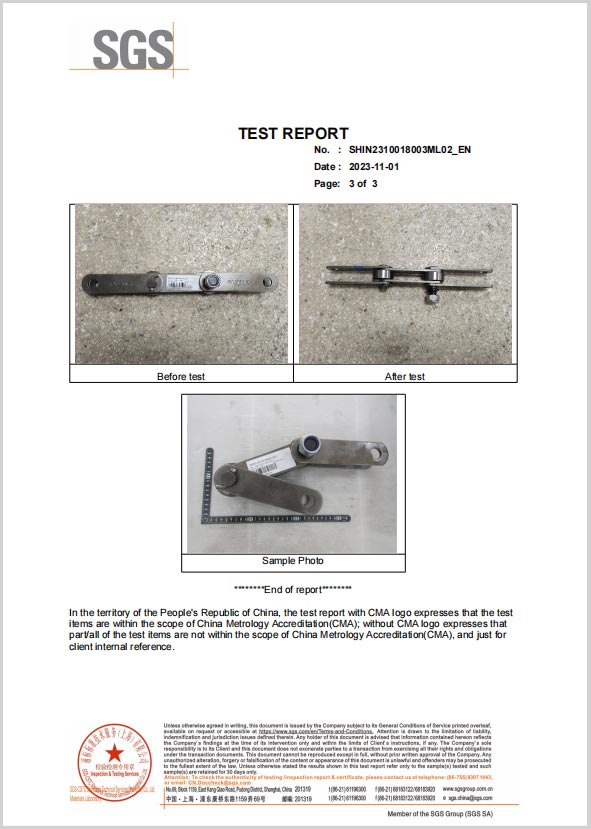

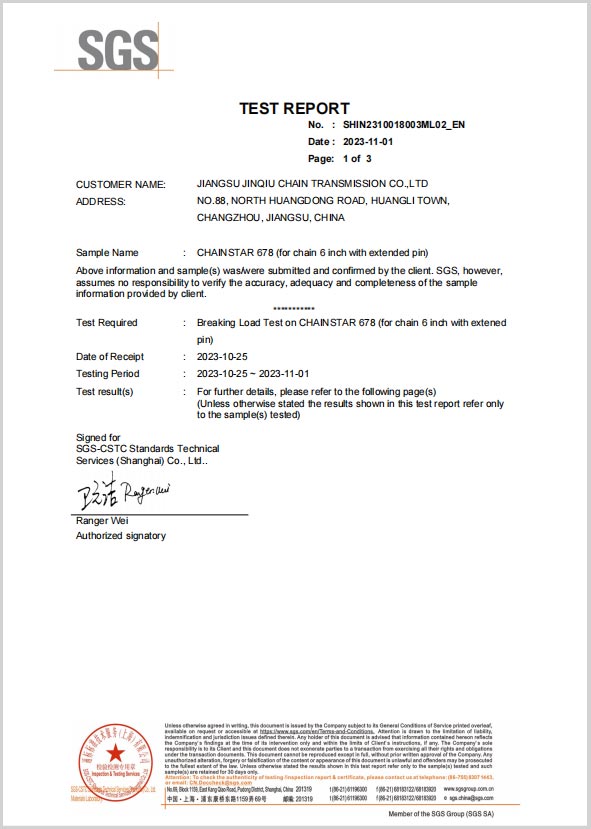

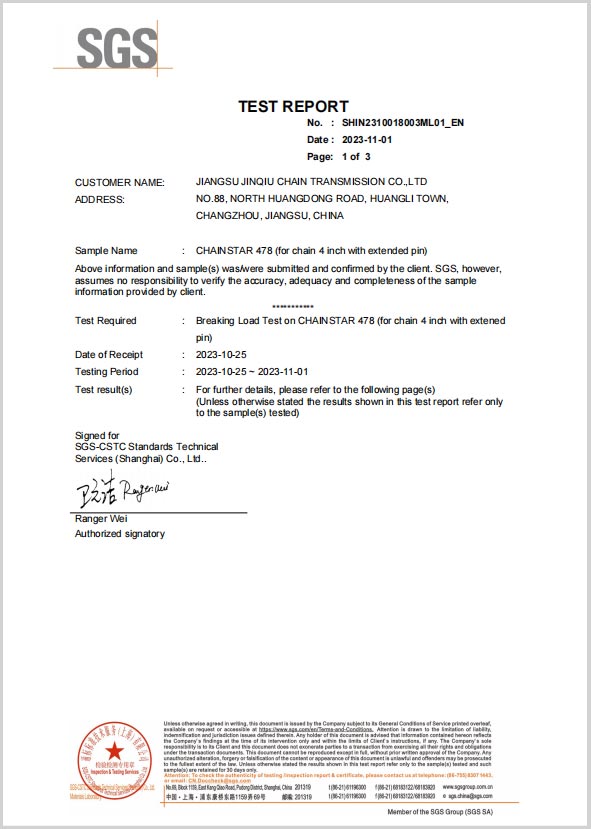

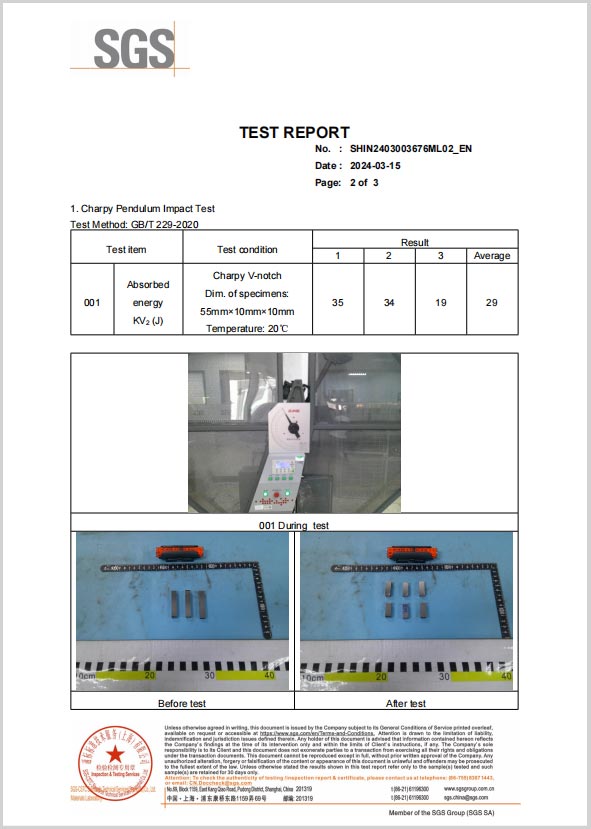

SGS Certificate

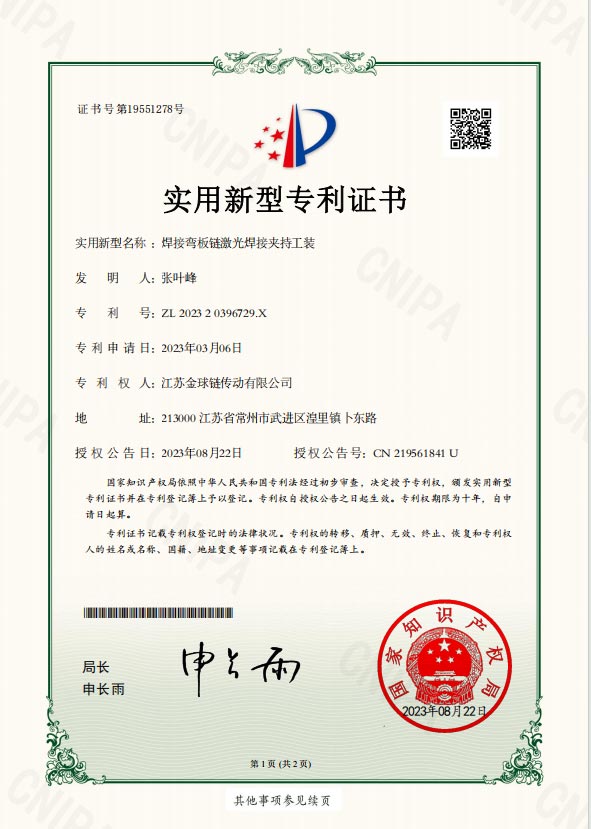

Patent Certificate

After-sales Service

● Professional Technical Guidance

If you have any product questions about chain model selection, production quality, detailed data, troubleshooting, repair and maintenance, you can contact us at any time. We will arrange professional technicians to solve the problem and respond to your needs quickly.

● Free Sample Trial

If you have any doubts about our products, we can provide sample trial services to help you verify the product's suitability and performance before formal purchase.

● Order Tracking & Logistics Support

We provide order progress tracking service for each customer, ensuring that you know the production and delivery status of the product in real time. We provide flexible logistics options and can provide global delivery services according to your location.

● Product Installation Guide

Provide professional installation advice and technical support. You can contact the technical team by phone or online to ensure the smooth installation and commissioning of the chain on the equipment.

● Quality Assurance & After-sales Maintenance

We provide quality assurance for every chain product. If quality problems occur during use (such as chain breakage, wear, etc.), we provide repair or replacement services and ensure that you can resume normal operation in the shortest possible time.

● User Feedback & Improvements

We value every customer's feedback, regularly collect and analyze user opinions, and continuously improve our products and services. If customers have any new needs or suggestions, we will respond and adjust the plan in a timely manner.
