Advantages of M80 chain:

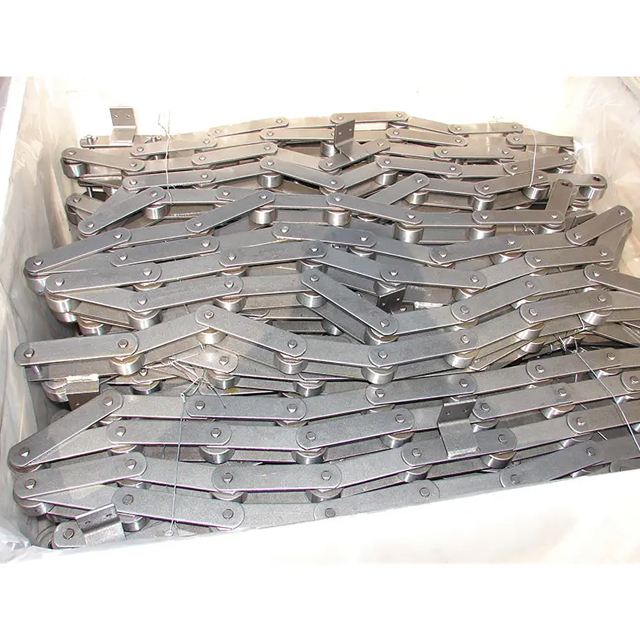

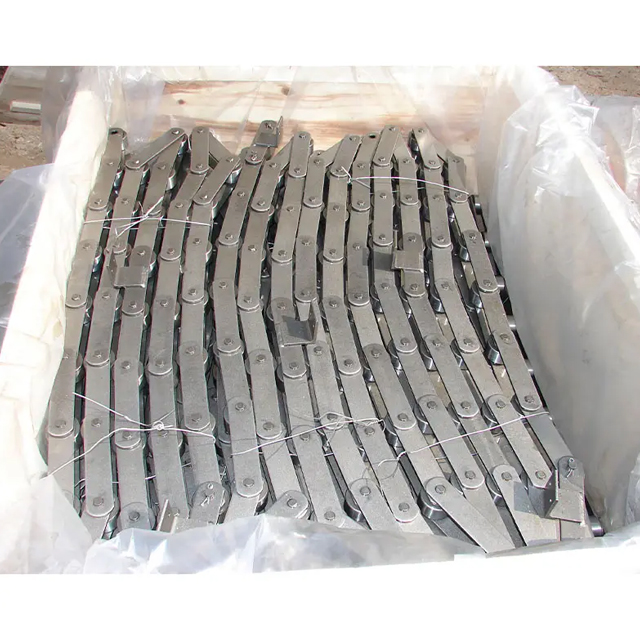

The M80 Metric Series Conveyor Chain is a robust industrial conveyor chain designed for heavy-duty material handling systems. Manufactured from high-quality alloy steel and processed with advanced heat treatment, it delivers excellent wear resistance, stable operation, and long service life even under demanding working conditions.
This chain complies with ISO metric standards, making it easy to integrate with standard sprockets and conveyor equipment used worldwide.
Ideal for buyers seeking a reliable, long-lasting conveyor chain with consistent performance and factory-direct supply.
Key Features & Benefits:
High Load Capacity – Designed for medium to heavy-duty conveying applications, ensuring reliable performance under continuous operation
Premium Alloy Steel Material – Provides enhanced strength, durability, and resistance to elongation
Precision Manufacturing – Ensures consistent dimensions and smooth engagement with standard sprockets
Advanced Heat Treatment – Improves wear resistance, prolongs service life, and reduces maintenance frequency
ISO & DIN Standard Compliance – Guarantees compatibility with international conveyor systems
Versatile Application – Suitable for sugar industry, palm oil mills, and general material handling systems
Technical Specifications：
| Item | Specification |
| Chain Type | M80 Metric Series Conveyor Chain |
| Standard | ISO / DIN Metric |
| Material | Carbon Steel / Alloy Steel |
| Heat Treatment | Through-hardened / Case-hardened (optional) |
| Surface Treatment | Natural / Blackened / Zinc Plated (optional) |
| Working Environment | Industrial conveying systems |
M80 Chain Drawings:
M80 Chain Specification Parameters
| Chain No. | Pitch | Roller Dimension | BarrelDia | InsideWidth | SidebarHeight | Pin Dia | PinLength | UlimateTensileStrength | |||||||
| R Type | F Type | S Type | |||||||||||||
| P | d1=d5 | d6(max) | d4(max) | d3 | b1(min) | h2(max) | d2(max) | L(max) | Q | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | ||||||
| M20 | 50 | 63 | 80 | 100 | 125 | 160 | 25 | 35 | 12.5 | 9 | 16 | 19 | 6.0 | 35 | 20 |
| M28 | 63 | 80 | 100 | 125 | 160 | 200 | 30 | 40 | 15.0 | 10 | 18 | 21 | 7.0 | 40 | 28 |
| M40 | 80 | 100 | 125 | 160 | 200 | 250 | 36 | 45 | 18.0 | 12.5 | 20 | 26 | 8.5 | 45 | 40 |
| M56 | 80 | 100 | 125 | 160 | 200 | 250 | 42 | 55 | 21.0 | 15 | 24 | 31 | 10.0 | 52 | 56 |
| M80 | 100 | 125 | 160 | 200 | 250 | 315 | 50 | 65 | 25.0 | 18 | 28 | 36 | 12.0 | 62 | 80 |
| M112 | 125 | 160 | 200 | 250 | 315 | 400 | 60 | 75 | 30.0 | 21 | 32 | 41 | 15.0 | 73 | 112 |
| M160 | 160 | 200 | 250 | 315 | 400 | 500 | 70 | 90 | 36.0 | 25 | 37 | 51 | 18.0 | 85 | 160 |
| M224 | 200 | 250 | 315 | 400 | 500 | 630 | 85 | 105 | 42.0 | 30 | 43 | 62 | 21.0 | 98 | 224 |
| M315 | 200 | 250 | 315 | 400 | 500 | 630 | 100 | 125 | 50.0 | 36 | 48 | 72 | 25.0 | 112 | 315 |
| M450 | 250 | 315 | 400 | 500 | 630 | 800 | 120 | 150 | 60.0 | 42 | 56 | 82 | 30.0 | 135 | 450 |
| M630 | 250 | 315 | 400 | 500 | 630 | 800 | 140 | 175 | 70.0 | 50 | 66 | 103 | 36.0 | 154 | 630 |
| M900 | 315 | 400 | 500 | 630 | 800 | 1000 | 170 | 210 | 85.0 | 60 | 78 | 123 | 44.0 | 180 | 900 |
The applications of m80 chain:
Industrial Conveyance:The M80 chain is widely used in long-pitch conveyor systems for material handling in factories, enabling efficient transportation of goods across production lines with its robust design and high load-bearing capacity.
Forestry Equipment:The Oregon M80 SpeedCut Saw Chain, a specialized variant, fits chainsaws like Husqvarna 450 Rancher, enhancing cutting efficiency with its narrow kerf and corrosion-resistant blued cutters for precision forestry tasks.
Heavy-Duty Lifting:The 80-grade M80 chain, crafted from high-strength manganese steel, complies with ISO 3077 standards and is ideal for industrial cranes and shipyard hoisting, offering a 4x safety factor for secure heavy load operations.
Mechanical Transmission:The Carbon Steel NACM80 Standard Link Proof Coil Chain serves as a durable M80 chain option for conveyor systems and agricultural machinery, providing wear resistance and adaptability in harsh environments through its welded construction and oil-resistant surface treatment.
● Food Industry
Conveyor chains also play a vital role in food processing and packaging, especially when handling heavy objects or in environments that require high temperature and corrosion resistance. They are used for:
Food production lines: conveying raw materials, semi-finished products or finished products.
Packaging equipment: material transfer in automated packaging production lines.
Beverage production: handling bottled drinks, canned drinks or other packaged drinks.
● Manufacturing Industry
In the manufacturing industry, conveyor chains are often used in the material handling and assembly process of production lines. They help to efficiently move materials, semi-finished products or finished products on the production line. Common applications include:
Automobile manufacturing: used in automobile assembly lines to move parts or complete vehicles.
Electronic product assembly: used to convey electronic components, PCB boards, etc.
Home appliance production: used for the assembly and handling of home appliance products.
● Mining and Metallurgical Industries
Conveyor chains are often used in the mining and metallurgical industries for the transportation of heavy and granular materials. They can withstand large weights and operate under high temperature and high load conditions. For example:
Ore conveying: used for the transportation of ore, coal or other raw materials.
Steel mills: used for the transportation of coal, waste, etc. during the smelting process.
● Construction Machinery Industry
In the construction and building materials industry, conveyor chains are used to transport heavy objects such as cement, sand, bricks, etc. They perform well in harsh working environments and can withstand heavy loads. For example:
Cement plants: used for the transportation of cement powder and granular materials.
Construction sites: transporting construction materials, tools, etc.
● Paper and Printing Industry
In the paper and printing industry, conveyor chains are used to transport paper, printed materials, parts of printing equipment, etc. They are often used in the handling, stacking and conveying of paper. For example:
Paper production: used to transport pulp, paper rolls, finished paper, etc.
Printing production: conveying finished or semi-finished printed products.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
M80 Chain Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
