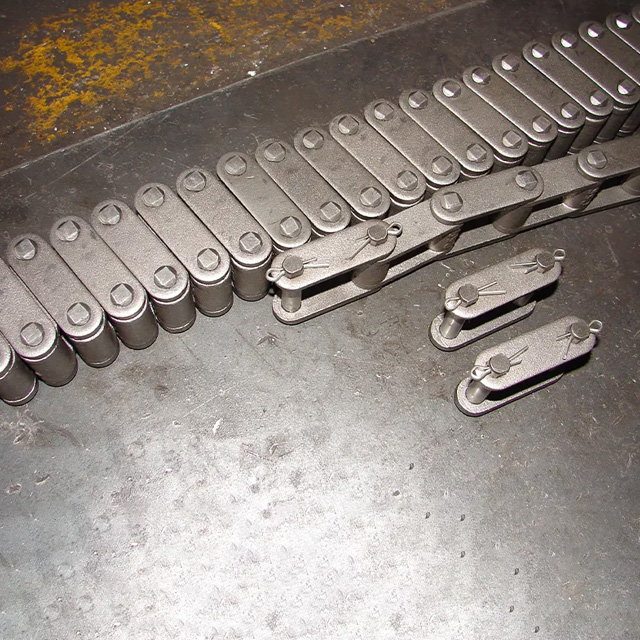

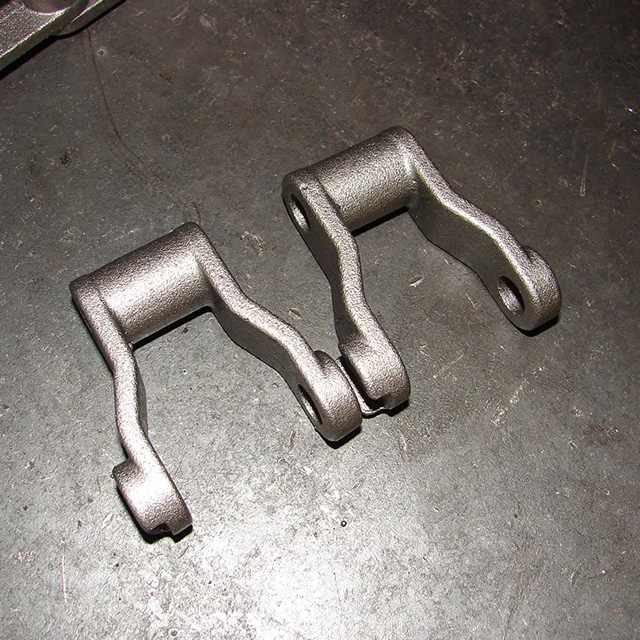

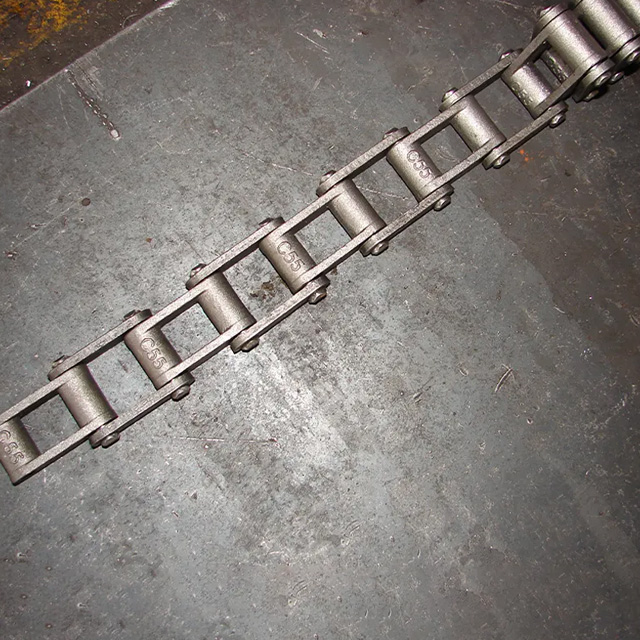

The features of c55 cast combination chain:
1.Robust Construction: The c55 chain features heat-treated steel components for exceptional strength and wear resistance in demanding applications.
2.Efficient Power Transmission: Its precision roller design ensures smooth engagement with sprockets, minimizing friction and energy loss.
3.Versatile Attachment Capability: The c55 cast combination chain incorporates cast attachment links, allowing easy integration of flights, paddles, or other components for conveying.
4.Enhanced Corrosion Resistance: Many c55 chains are offered with protective coatings or platings to increase longevity in harsh or wet environments.
5.Standardized Dimensions: Manufactured to precise ANSI/ISO standards, the c55 chain ensures reliable compatibility with industry sprockets and components.
Brand Reputation: JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of lumber conveyor chains. They combine high strength,durability and fatigue resistance to suit demanding applications.
Quality & Performance: This chain transmission industrial chain boasts an impressive high tensile strength, ensuring it can withstand heavy loads and demanding applications in manufacturing plants and construction works.
Price & Value: We offer customization services to meet the specific needs of our clients. This includes OEM and ODM support, allowing us to tailor the product to their requirements. Whether it's a trial order or a large quantity, we can accommodate various customization requests.
Supply Chain: The chain is suitable for various applications, including sugar mill, and can be used in different industries, making it an ideal choice for businesses with diverse needs, as requested by the customer.
Drawings:
Specification Parameters
| Chain No. | Pitch | E(mm) | Sidebar | Pn | R(mm) | Mir.Ult. Strength Q(KN) | Weight KG/FT | ||
| T(mm) | H(mm) | D (mm) | A(mm) | ||||||
| C55 | 41.43 | 17.48 | 4.75 | 19.05 | 9.53 | 50.03 | 18.25 | 57.00 | 0.91 |
| C77 | 58.62 | 17.48 | 4.75 | 22.23 | 11.10 | 53.59 | 18.25 | 67.50 | 1.04 |
| C188 | 66.27 | 23.80 | 6.35 | 28.58 | 12.70 | 68.32 | 22.25 | 84.00 | 1.63 |
| BRH188 | 66.27 | 23.80 | 5.80 | 28.58 | 12.70 | - | - | 62.30 | 2.00 |
| C131 | 78.10 | 28.50 | 9.53 | 38.10 | 15.88 | 92.20 | 31.75 | 146.30 | 295 |
| C1028 | 101.60 | 50.80 | 9.53 | 38.10 | 15.88 | 113.54 | 25.40 | 146.30 | 3.08 |
| C111 | 120.90 | 60.33 | 9.53 | 44.45 | 19.05 | 130.30 | 36.50 | 220.30 | 4.45 |
| C110 | 152.40 | 49.20 | 9.53 | 38.10 | 15.88 | 113.53 | 32.51 | 146.30 | 2.72 |
| C132 | 153.67 | 79.38 | 12.70 | 50.80 | 25.40 | 165.35 | 45.21 | 305.90 | 6.58 |
● Mining Industry
Cast pintle chain are widely used in the mining industry, especially in the conveying and processing of ore. The ore is usually very heavy and rough, and the use of cast hinge chains can provide strong load-bearing capacity to help transport the ore from the mine to the processing station or transportation point.
● Cement Industry
In the cement production process, cast pintle chains are used to transport various raw materials such as limestone, clay, coal, etc. As these materials are often heavy and coarse-grained, Cast Pintle Chain can provide sufficient strength and wear resistance to ensure smooth material transportation, even in high temperature environments.
● Steel Mill Industry
In steel production, cast pintle chain are used to transport heavy materials such as raw materials, furnace charges, steel and scrap. Cast chains can withstand high temperatures and heavy loads and are particularly suitable for the high-temperature smelting process in steel plants and the subsequent handling, cooling and distribution of steel.
● Wood Industry
Wood processing plants often use cast pintle chains when transporting and handling logs, wood cutting blocks or wood waste. These chains can not only handle heavy materials, but also adapt to the high humidity environment and corrosion problems common in wood processing.
