Advantages of BL1666 leaf chain:
High Tensile Strength:BL1666 leaf chain delivers 971.19 kN tensile strength for heavy-duty lifting in forklifts and material handling systems.
Durable Construction:Engineered with premium pins/plates and special processes, ensuring longevity in demanding environments like machine tools.
International Compliance:Meets ANSI, ISO, DIN, and NFE standards, ensuring safety and reliability across global industries.
ProCoat™ Protection:Optional corrosion-resistant coating extends lifespan in diverse settings, enhancing operational efficiency.
Heavy-Duty Performance:Replaces outdated AL series, excelling in forklift, lifting, and balancing tasks with 6x6 lacing design.
Brand Reputation: JINQIU CHAIN, as a prominent bl1666 leaf chains manufacturer, we carries out detailed material selecting, precision machining, special heat treatment, precision assembling and pre-lubricating for the production of our leaf chain.
Quality & Performance: Leaf chain mainly includes BL series, LL series and AL series. It also can be customized according to the special requirements.
Price & Value: We offer customization services to meet the specific needs of our clients. This includes OEM and ODM support, allowing us to tailor the product to their requirements. Whether it's a trial order or a large quantity, we can accommodate various customization requests.
Supply Chain: Our leaf chain is suitable for various industries, including manufacturing plants, construction works, and other sectors, making it a versatile solution for diverse applications.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | BL1666 Leaf Chain |
| Chain Series | BL Heavy Duty Leaf Chain |
| Pitch (P) | 50.80 mm |
| Plate Lacing | 6 x 6 |
| Pin Diameter | 17.46 mm |
| Link Plate Height | 48.26 mm |
| Plate Thickness | 7.52 mm |
| Construction | Riveted leaf chain |
| Material | High-strength carbon steel |
| Ultimate Tensile Strength | ~867.4KN |
| Weight approx | ~24 lb/ft (approx.) |
Detailed dimensional drawings and working load data can be provided upon request.

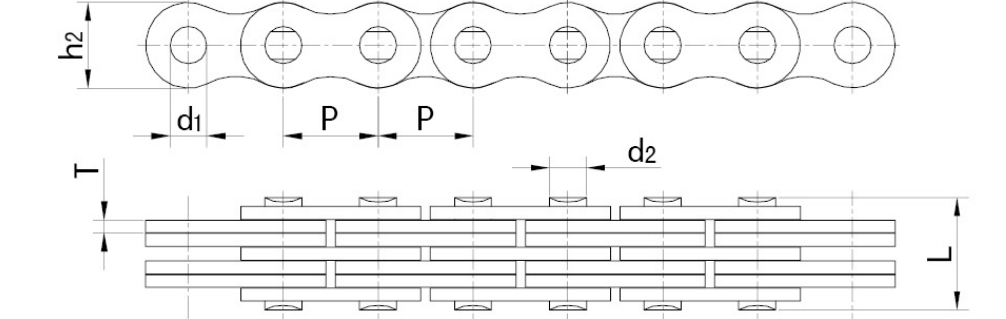

BL1666 Leaf Chain Drawings
The applications of bl1666 leaf chain:
The BL1666 Leaf Chain is widely used in forklift truck lifters due to its high tensile strength (up to 253.6 kN) and durability, ensuring reliable vertical lifting in logistics and warehousing.
In mining equipment, the BL1666 Leaf Chain withstands heavy loads and harsh environments, thanks to its carbon steel construction and heat-treated components.
Agricultural machinery leverages the BL1666 Leaf Chain for traction systems, where its 50.8mm pitch and anti-fatigue design enhance operational stability.
Marine applications utilize the BL1666 Leaf Chain for anchor hoisting, benefiting from its corrosion-resistant stainless steel variants and ISO/DIN compliance.
● Heavy Industry
Leaf chains are commonly used in various cranes and lifting equipment, such as electric hoists, lifts, winches, etc. In these applications, leaf chains are used to provide longitudinal tension and transmit power to help lift and move heavy objects.
● Conveying System
The bl1666 leaf chain can run stably under high load conditions and is suitable for material conveying systems that require large pulling forces, such as mining conveyors, material lifting systems, etc.
● Agricultural Industry
Leaf chains are widely used in tractors, harvesters, seeders and other equipment. Leaf chains can withstand the high loads of agricultural machinery working on heavy loads and irregular ground, ensuring the stable operation of agricultural equipment.
● Paper Industry
In the production process of papermaking, printing, etc., leaf chains are used for conveying and lifting materials, especially in the handling of heavy materials or raw materials. Since the production lines of these industries usually need to operate stably for a long time, the high load-bearing capacity provided by leaf chains can ensure the smooth operation of the production line.
Why choose our BL1666 Leaf Chain?
● High load-bearing capacity
One of the biggest advantages of the leaf chain is its excellent load-bearing capacity. Its structural design is suitable for high-strength longitudinal tension, which is very suitable for carrying heavier materials and equipment.
● Strong durability
The leaf chain is made of high-quality steel, with good wear resistance and fatigue resistance, and can maintain good working condition under high load and continuous operation conditions.
● Simple and efficient
The structure of the leaf chain is relatively simple, without complex components such as rollers, so its maintenance is relatively simple and not prone to failure. Even in complex working environments, the leaf chain can work efficiently and stably.
● Strong adaptability
The leaf chain can adapt to various heavy equipment and working conditions, and is widely used in various material transportation, lifting and transmission systems. It is particularly suitable for those working environments that require long-term and high-load operation.
● Low noise
Due to the absence of roller components, the leaf chain usually produces lower noise during operation, which is very suitable for workplaces that require a lower noise environment.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
BL1666 Leaf Chain Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
BL1666 Leaf Chain SGS Certificate
BL1666 Leaf Chain Patent Certificate
After-sales Service
Customer Testimonials
| Buyers from Canada: The product quality is very good and meets my expectations. Currently, I have not encountered any problems while using it, and the merchant is very professional. |
| Buyers from USA: Chain quality is amazing and delivery is fast, I like it, look forward to our continued relationship. |
| Buyers from India: Thanks, I think I have a trustworthy partner. You know our needs and try to keep our best interests in mind. Looking forward to our continued relationship. |
