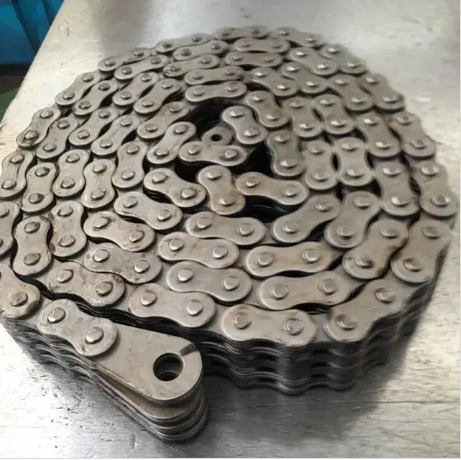

Leaf chains, a critical component in mechanical engineering, are specialized types of chains designed for high-tension applications requiring robust strength and durability. Unlike standard roller chains, leaf chains are constructed with overlapping interlocking plates, forming a structure resembling the veins of a leaf—hence the name. This design enables them to withstand extreme loads, making them indispensable in industries such as material handling, hoisting, and heavy machinery.
Structural Design and Components
Leaf chains consist of two primary components: link plates and pins. The link plates are stacked in alternating layers, with each plate overlapping the adjacent one, creating a zigzag pattern. The pins pass through aligned holes in the plates, securing them together. This construction eliminates the need for bushings or rollers, reducing weight while enhancing load-bearing capacity.
The most common configurations include LH series, AL series, and BL series, each varying in dimensions and strength ratings. For example, the LH2066 model features a 6×6 plate arrangement, offering a tensile strength of up to 430.4 kN, making it suitable for heavy-duty lifting applications.
Applications and Industrial Use Cases
Leaf chains excel in scenarios where reliability under tension is paramount. Key applications include:
Hoisting and Lifting Systems: Forklifts, cranes, and elevators rely on leaf chains to lift and lower heavy loads safely.
Material Handling Equipment: Conveyor systems and automated storage units use leaf chains for their durability and resistance to wear.
Agricultural and Mining Machinery: Tractors, excavators, and drilling rigs employ leaf chains to transmit power in high-stress environments.
For instance, the AL866 leaf chain, made from stainless steel (SS304/SS316), is corrosion-resistant and ideal for marine or food processing machinery.
Manufacturing Standards and Quality Control
Reputable manufacturers adhere to international standards such as ISO, DIN, and ANSI to ensure consistency and safety. Key processes include:
Heat Treatment: Quenching and tempering enhance the chain’s tensile strength and fatigue resistance.
Surface Finishing: Polishing, electroplating, or oxidation treatments protect against corrosion and extend service life.
Precision Grinding: Centreless grinding ensures dimensional accuracy, reducing friction and wear.
For example, Hangzhou Qianjiang Chain Industries Co., Ltd., a leading supplier, certifies its products with ISO 9001, SGS, and BV approvals, guaranteeing compliance with global quality benchmarks.
Advantages Over Alternative Chains
Compared to roller chains or silent chains, leaf chains offer distinct advantages:
Higher Load Capacity: The overlapping plate design distributes stress more evenly, enabling higher tensile strengths.
Reduced Stretching: Minimal elongation under load ensures consistent performance over time.
Cost-Effectiveness: Despite their robustness, leaf chains are often more affordable than specialized high-strength alternatives.
For instance, the LH1623 model, priced at 1.40–1.70 per meter (for bulk orders), provides a cost-efficient solution for medium-duty applications without compromising quality.
Maintenance and Longevity
Proper maintenance is essential to maximize the lifespan of leaf chains. Key practices include:
Regular Lubrication: Applying high-quality grease reduces friction and prevents corrosion.
Tension Adjustment: Ensuring the chain is neither too loose nor too tight minimizes wear and tear.
Inspection for Wear: Checking for plate deformation, pin elongation, or cracks helps prevent catastrophic failures.
For example, a leaf chain used in a forklift should be inspected monthly and replaced if signs of fatigue or damage are detected.
Conclusion
Leaf chains are indispensable in industries demanding high-tension reliability. Their unique structural design, adherence to international standards, and cost-effectiveness make them a preferred choice for hoisting, lifting, and heavy-duty applications. As technology advances, manufacturers continue to innovate, offering materials like stainless steel and enhanced surface treatments to meet evolving industrial needs. Whether in a warehouse crane or a mining excavator, the leaf chain remains a testament to engineering excellence—a simple yet powerful solution to complex mechanical challenges.
In conclusion, the leaf chain’s enduring relevance lies in its ability to balance strength, durability, and affordability. As industries push the boundaries of mechanical performance, the leaf chain will undoubtedly remain a cornerstone of innovation and reliability.
