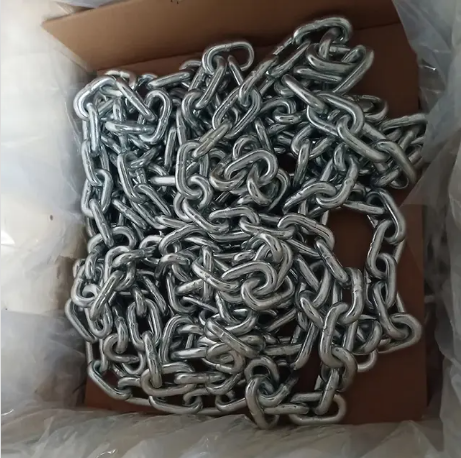

A round link chain is a specialized mechanical component engineered to withstand extreme loads and dynamic forces in industrial applications. Unlike decorative jewelry chains or basic lifting chains, round link chains are designed with precision to serve as critical transmission elements in heavy-duty systems such as mining conveyors, marine anchors, and material handling equipment. This article explores the structural design, manufacturing processes, and diverse applications of round link chains, highlighting their indispensable role in modern industry.
Structural Design and Material Composition
Round link chains are composed of interconnected circular or oval-shaped links, typically made from high-strength alloy steel. The links are forged through a process that involves cutting wire rods into precise lengths, forming them into loops, and welding the ends to create a seamless joint. This welding technique ensures uniform strength across each link, eliminating weak points that could compromise performance under stress.
The geometry of round link chains distinguishes them from other chain types. For example, roller chains (common in bicycles) rely on cylindrical rollers to reduce friction, while round link chains prioritize load-bearing capacity through their solid, interlocked structure. In mining applications, chains with pitches ranging from 1.49 inches to 4.96 inches are used, depending on the conveyor system’s requirements. Larger chains, such as the 34X126CH model, can withstand breaking forces exceeding 1,450 kN, making them suitable for transporting coal or ore in longwall mining operations.
Manufacturing Processes and Quality Control
The production of round link chains involves multiple stages, each governed by stringent quality standards. The process begins with selecting high-grade steel wire rods, which are straightened and drawn to the desired diameter. Advanced forming machines then shape the wire into individual links, which are welded using automated systems to ensure consistency. Post-welding, chains undergo heat treatment—a critical step that enhances hardness and wear resistance. For instance, RUD Fördertechnik employs proprietary heat treatment techniques to produce chains with a Rockwell hardness of 40 HRC, enabling them to operate in abrasive environments like underground mines for extended periods without failure.
Surface finishing is another vital aspect of manufacturing. Chains used in corrosive environments, such as marine anchor systems, are coated with protective layers like zinc or epoxy to prevent rust. In contrast, mining chains are often left uncoated to avoid contamination of conveyed materials, relying instead on material hardness to resist wear.
Applications Across Industries
Round link chains are ubiquitous in sectors demanding reliability under extreme conditions. In mining, they form the backbone of armored face conveyors (AFCs), which transport mined material at high speeds. A single AFC chain may consist of hundreds of links, each subjected to cyclic stresses exceeding 100 tons. The chain’s ability to maintain engagement with sprockets—even under misalignment or shock loads—ensures uninterrupted operation, minimizing costly downtime.
Marine applications leverage round link chains for anchoring and mooring due to their resistance to saltwater corrosion and fatigue. The chains’ circular links distribute loads evenly, reducing stress concentrations that could lead to premature failure. Similarly, in construction, round link chains are used in hoisting systems to lift heavy materials, while in agriculture, they drive combine harvesters and balers.
Comparative Advantages and Limitations
Compared to alternative chain designs, round link chains offer distinct advantages. Their simple geometry facilitates easy inspection and replacement of damaged links, reducing maintenance costs. In tubular drag conveyors, however, engineered chains with precision-machined components often outperform round link chains in terms of efficiency and longevity. Round link chains are also more prone to derailment if tension is not properly maintained, a challenge mitigated through spring-loaded tensioning systems in conveyor designs.
Conclusion
The round link chain represents a pinnacle of engineering simplicity and robustness, combining high-strength materials with precise manufacturing to meet the demands of industrial applications. From the depths of coal mines to the hulls of ocean liners, the round link chain’s versatility and reliability have cemented its status as an essential component in global infrastructure. As industries continue to push the boundaries of productivity, advancements in heat treatment, welding, and material science will further enhance the performance of round link chains, ensuring their relevance in an evolving technological landscape. Whether transporting minerals, securing vessels, or lifting construction materials, the round link chain remains a testament to the enduring power of mechanical innovation.
