The term "bucket chain" refers to a mechanical system composed of interconnected containers (buckets) linked in a continuous loop, designed to transport bulk materials efficiently across vertical or inclined paths. This technology has evolved into diverse applications, from ancient firefighting techniques to modern industrial machinery, demonstrating its adaptability and enduring relevance in material handling.
Historical Roots and Early Applications
The concept of a bucket chain traces back to manual systems like the bucket brigade, where individuals passed containers sequentially to move water or goods. This method was critical in pre-modern firefighting, enabling teams to transport water from wells to burning buildings. While human-powered bucket brigades are now rare, their principle inspired mechanical adaptations. For instance, early mining operations used rudimentary bucket chains to hoist ore from shafts, marking the transition from manual labor to mechanized solutions.
Mechanical Evolution: Bucket Elevators and Chains
The modern bucket chain is most prominently embodied in bucket elevators, conveyor systems engineered for vertical material transport. These systems consist of a continuous loop of buckets attached to either a robust chain or a reinforced belt. The chain variant, known as a bucket elevator chain, is favored for heavy-duty applications due to its durability and resistance to abrasion. Key components include:
1.Boot Section: Material enters the system via a hopper, where buckets scoop or receive the load.
2.Trunk or Casing: Encloses the chain and buckets to prevent spillage, contain dust, and protect against environmental factors.
3.Head Section: A motor-driven pulley or sprocket drives the chain upward, enabling buckets to discharge material at the top through centrifugal force or gravity.
Bucket elevator chains are engineered to withstand extreme conditions. For example, in cement plants, they transport abrasive materials like clinker over long distances without significant wear. Companies like Nitro Chains specialize in premium steel chains for such applications, ensuring reliability under continuous operation.
Industrial Applications: Mining, Construction, and Beyond
1.Mining and Dredging: Bucket chain excavators (BCEs) are colossal machines used in surface mining and dredging. Unlike bucket wheel excavators, BCEs employ downward-facing buckets on a flexible chain, allowing them to extract material below their operational level. This is invaluable in unstable pits or underwater excavation, where traditional methods would fail. The excavated material is discharged through chutes onto conveyors for further processing.
2.Port Operations: Tenova’s Bucket Chain Continuous Unloader (CSU) exemplifies advanced material handling in maritime logistics. These systems use a patented bucket-chain design to unload bulk cargo (e.g., coal, iron ore) from ships with minimal environmental impact. The continuous operation and adaptability to various vessel sizes make CSUs a cornerstone of efficient port infrastructure.
3.Agriculture and Manufacturing: In agriculture, bucket elevators transport grains, fertilizers, and animal feed vertically, optimizing storage space. Similarly, in food processing, they move ingredients between floors while maintaining hygiene standards. The flexibility of bucket chains—whether chain-driven or belt-driven—allows customization for specific material properties, such as flowability or moisture content.
Technical Variations and Innovations
Bucket chains vary in design based on application requirements:
Chain Types: Round link chains (e.g., DIN systems) are common for their strength, while central chain systems distribute loads evenly across multiple strands, enhancing capacity.

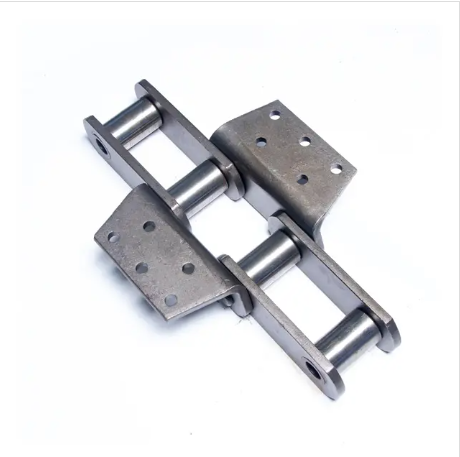

Bucket Attachments: Buckets may be bolted, welded, or clamped to the chain, depending on the material being handled. For example, stainless steel buckets resist corrosion in chemical plants, whereas rubber-lined buckets reduce noise in grain elevators.
Discharge Mechanisms: Centrifugal discharge is ideal for fine materials, as the buckets’ rotation flings the load outward. For sticky substances, gravity discharge ensures complete emptying without clogging.
Conclusion: The Enduring Utility of Bucket Chains
The bucket chain remains a linchpin of industrial efficiency, bridging historical ingenuity with modern engineering. From the bucket elevator chain in mining and cement production to the specialized CSUs in ports, this technology adapts to diverse challenges while minimizing downtime and environmental harm. Its versatility—whether handling abrasive ores, delicate grains, or viscous slurries—underscores its irreplaceable role in global supply chains. As industries prioritize sustainability and automation, innovations in bucket chain design will continue to drive progress, ensuring these systems remain at the forefront of material handling for decades to come.
