Key Features
Heavy-Duty Welded Steel Construction
Built from high-strength welded steel components for superior durability in heavy conveying applications.High Tensile Strength
Designed to handle heavy loads and continuous operation in industrial conveying systems.Excellent Wear Resistance
Precision-machined pins and bushings reduce wear and ensure smoother chain articulation.Long Service Life
Durable materials and robust design help extend operational life and reduce maintenance frequency.Reliable Performance in Harsh Environments
Suitable for dusty, abrasive, and high-load environments.Compatible with Standard Sprockets
The WHX132 chain is designed to match standard sprockets for easy installation and replacement.

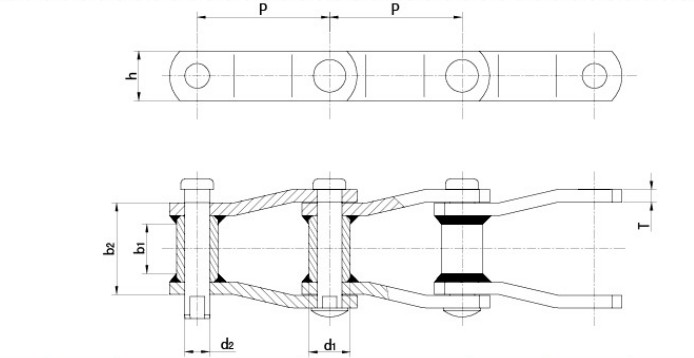

Drawings
Specification Parameters
| Chain No. | Average Pitch | E(mm) | Sidebar | Pin | Barrel | F(mm) | Min.Ult. Strength (KN) | Avg.Weight chain kg/FT | ||
| T(mm) | H(mm) | D(mm) | A(mm) | R(mm) | ||||||
| WHX132 | 153.67 | 76.20 | 12.70 | 50.80 | 25.40 | 156.00 | 44.45 | 112.30 | 542.00 | 6.50 |
| WH132XHD | 153.67 | 76.20 | 15.88 | 50.80 | 25.40 | 168.86 | 44.45 | 118.60 | 543.00 | 6.90 |
Applications
The WHX132 welded steel chain is widely used in industrial conveying equipment, including:
Grain handling systems
Feed mills
Cement plants
Wood processing industry
Bulk material conveyors
Agricultural conveying equipment
Why Choose Our Welded Steel Chains
Strict quality control during manufacturing
High-strength alloy steel components
Precision machining for better wear resistance
Stable performance in heavy-duty applications
OEM and custom manufacturing available
