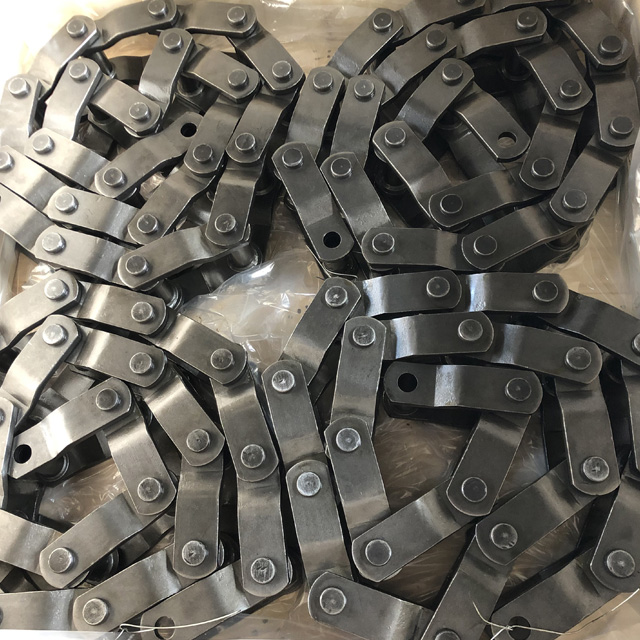

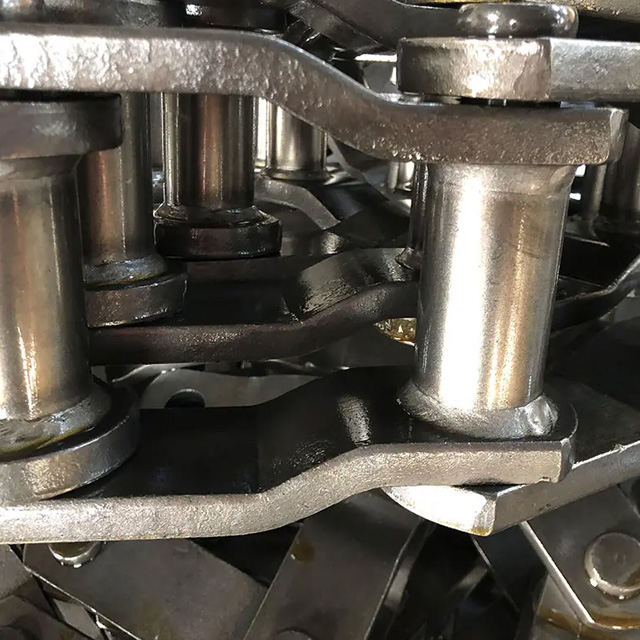

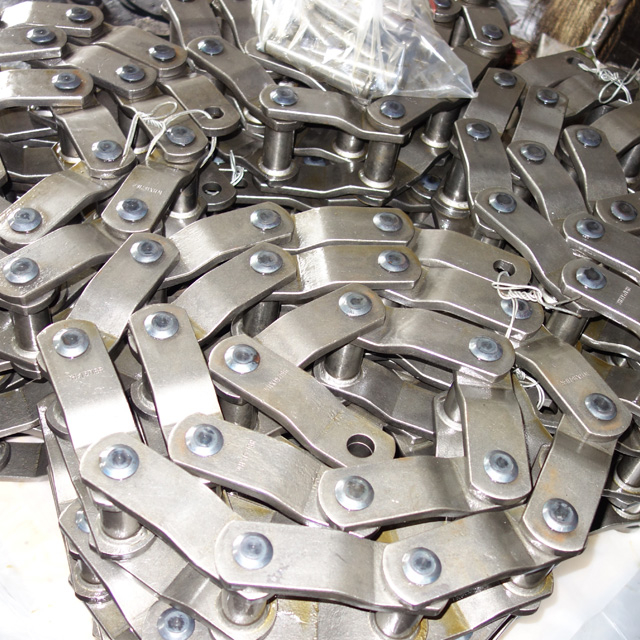

WH157 Chain stands out with four key advantages::
● Unmatched Strength: Built with fully heat-treated pins, barrels, and side plates, the WH157 Chain delivers an ultra-high tensile strength of 175,000 lbs, outperforming standard chains in heavy-duty applications like conveyors and forestry equipment.
● Superior Durability: Its precision-engineered welded design and high-grade steel core resist corrosion and wear, ensuring long-lasting performance even in harsh environments such as pulp, paper, and sugar processing.
● Efficiency & Reliability: The offset sidebar configuration and seamless welds enable smooth operation with minimal friction, reducing energy consumption and downtime.
● Made in USA Quality: Manufactured to the "heaviest duty" standards, the WH157 Chain combines domestic craftsmanship with premium metallurgy, offering a cost-effective solution without compromising on longevity or performance.
● There are a variety of attachments to choose from, and they can also be customized and developed according to users' requirements.
Brand Reputation: JINQIU CHAIN, as a well-known and experienced chain manufacturer, we offer a full range of WH and WR narrow series and WDH wide series welded steel chains. Our chains are sold to more than 50 countries around the world and are ISO9001 certified and have multiple patents and SGS certificates.
Quality & Performance: Our welded steel chains are specially designed for demanding applications where strong impact and material wearing and lots of dust.
Price & Value: These power transmission product or conveyor part are engineered from special alloy steels using finite element analysis technology and best-in-class manufacturing technology and equipment. As a result, the welded cranked link chains have excellent resistance to high load impact and long lasting wear resistance while providing low cost.
Supply Chain: Jointed with various attachments in virtue of welding or bolting methods, the welded steel chains can meet the needs for diversity of different production lines. They are mainly used in woodworking, grain and oil processing and paper making industries and more.
Drawings:
Specification Parameters
| Chain No. | Average Pitch | E(mm) | Sidebar | Pin | Barrel | F(mm) | Min.Ult. Strength (KN) | Avg.Weight chain kg/FT | ||
| T(mm) | H(mm) | D(mm) | A(mm) | R(mm) | ||||||
| WH78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 146.80 | 2.00 |
| WH78XHD | 66.95 | 25.40 | 9.50 | 31.75 | 14.29 | 82.00 | 25.40 | 50.80 | 163.50 | 2.80 |
| WH82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 160.00 | 2.20 |
| WH82XHD | 78.10 | 28.60 | 9.70 | 38.10 | 19.05 | 96.50 | 31.75 | 60.90 | 254.00 | 3.90 |
| WH9103HD | 78.11 | 31.80 | 9.70 | 38.10 | 19.10 | 92.30 | 31.80 | 57.90 | 287.00 | 4.00 |
| WH124 | 101.60 | 38.10 | 9.70 | 38.10 | 19.05 | 107.00 | 31.75 | 71.40 | 250.00 | 3.60 |
| WH124XHD | 103.20 | 38.10 | 12.70 | 50.80 | 25.40 | 119.50 | 44.45 | 76.20 | 542.00 | 6.40 |
| WH111 | 120.90 | 57.10 | 9.60 | 38.10 | 19.00 | 123.90 | 31.70 | 85.80 | 254.00 | 3.64 |
| WH106 | 152.40 | 38.10 | 9.70 | 38.10 | 19.05 | 107.00 | 31.75 | 69.85 | 250.00 | 3.00 |
| WH720C | 152.40 | 28.58 | 9.70 | 38.10 | 19.05 | 96.75 | 31.75 | 60.32 | 254.00 | 2.95 |
| WH110 | 152.40 | 47.70 | 9.60 | 38.10 | 19.00 | 117.30 | 31.70 | 76.20 | 357.00 | 2.14 |
| WH106XHD | 153.67 | 38.10 | 12.70 | 50.80 | 25.40 | 120.20 | 44.45 | 76.20 | 542.00 | 5.60 |
| WH132 | 153.67 | 76.20 | 12.70 | 50.80 | 25.40 | 156.00 | 44.45 | 112.30 | 542.00 | 6.50 |
| WH132XHD | 153.67 | 76.20 | 15.88 | 50.80 | 25.40 | 168.86 | 44.45 | 118.60 | 543.00 | 6.90 |
| WH150 | 153.67 | 76.20 | 12.70 | 63.50 | 25.40 | 156.00 | 44.50 | 112.30 | 620.00 | 7.40 |
| WH155 | 153.67 | 73.20 | 12.70 | 63.50 | 28.40 | 158.70 | 41.10 | 111.20 | 771.00 | 7.71 |
| WH157 | 153.67 | 76.20 | 15.90 | 63.50 | 29.10 | 171.00 | 44.50 | 117.50 | 820.00 | 9.20 |
| WH150XHD | 153.67 | 76.20 | 15.70 | 63.50 | 28.40 | 171.40 | 41.10 | 117.30 | 920.00 | 7.98 |
| WH159 | 155.57 | 69.85 | 15.90 | 76.20 | 31.75 | 170.50 | 50.80 | 117.50 | 950.00 | 11.30 |
● Wood Industry
JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of WH and WR narrow series and WDH wide series of welded steel chains. They are mainly used in wood working, grain and oil processing and paper making industries and more.
Why Choose Our Chains for Your Wood Industry Needs?
1. Minimized Downtime: High-reliability chains keep your production line running, maximizing equipment uptime.
2. Lower Maintenance Costs: Self-lubricating designs and durable materials reduce long-term operational expenses.
3. Higher Production Efficiency: Smooth-running conveyor systems optimize material handling and processing.
4. Tailored Solutions: Our expert team designs custom chains to meet even the most complex requirements, ensuring your equipment performs at its best.
● Paper Industry
WH series chains are widely used in afforestation, logging, rough processing of logs, deep processing of wood, pulp preparation, papermaking and other production activities, mainly involving wood processing machinery, wood-based panel equipment, papermaking equipment, etc., for transmitting power, conveying products and materials.
● Food Industry
Welded mill chains are widely used in the food industry in conveying systems, driving of food processing machinery, packaging equipment, handling and storage of freezing and refrigeration equipment, etc. Due to its high strength, wear resistance and corrosion resistance, steel chains can withstand high loads, operate stably in harsh environments, meet the strict hygiene requirements of the food industry, and are easy to clean and disinfect. In addition, with the advancement of automation and intelligence, steel chains also play an important role in food production lines, improving production efficiency and product quality.
● Steel Mill Industry
In steel mill industry, chains are used for production equipment, mainly including chains for conveying ore and scrap steel on plate conveyors in steel mills, chains for steel rolling production lines, conveyor chains for producing steel pipes and bars, chain for drawing machines and various special chains.
Workshops
We have 400 tons punching machines, 100 tons tensile machine, various welding robots and laser cutting equipment, mesh belt furnace, spectrometer, and over 300 sets advanced production and testing equipment.
Automation Group
Punching Group
Heat Treatment Workshop
Welding Workshop
Assembly Group
Laser Cutting Workshop
Quality Testing Center
Stocking Warehouse
Equipment
CNC Milling Machine
Cutting Machine
Heat Treatment with Automatic Mesh Belt Conveyor Furnace
Induction Hardened Machine
Welding Robot
Laser Cutting Equipment
Vacuum Furnace
Multipurpose Furnace
Quality Testing
Impact Testing Machine
Spectrograph
Vickers Hardness Tester
Metallographic Sample Cutting Machine
Pretension Machines
Electronic Rockwell Hardness Tester & Tensile Strength Testing Machine
Precision Length Measuring Instrument
Office
Why Choose JINQIU?
● Over 36 Years' History in Designing and Manufacturing Industrial Chains
With operations in more than 50 countries, we deliver high-quality industrial chains tailored to your needs.
We occupy more than 60,000 square meters, with 8 specialized production workshops, over 300 employees and including 50 in engineering and product developing. We have an annual production capacity of more than 10000 tons, and over 300 sets advanced production equipment and testing equipment.
● Innovative R&D Team Provides Customized Chain Solutions
We provide comprehensive technical support and our dedicated R&D team works closely with customers to design chains that meet unique requirements.
● Flexible Customization & Trial Orders to Meet Your Needs
At Jinqiu Chain, we support full customization and small-batch trial orders, ensuring solutions tailored to your specific applications.
