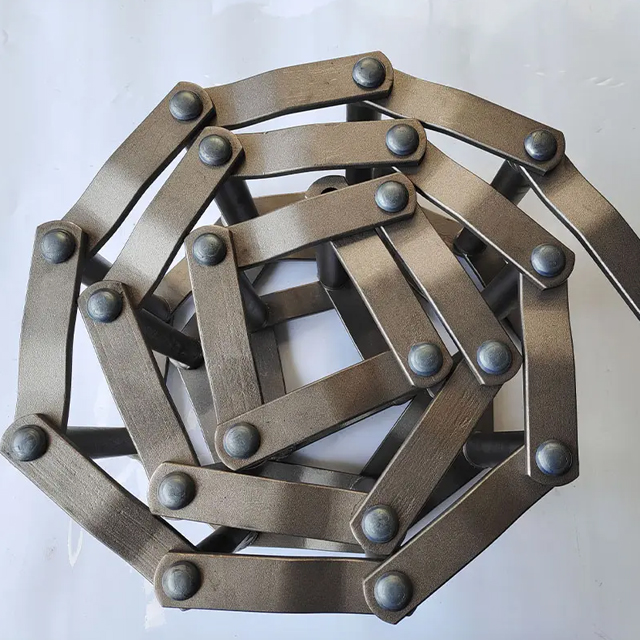

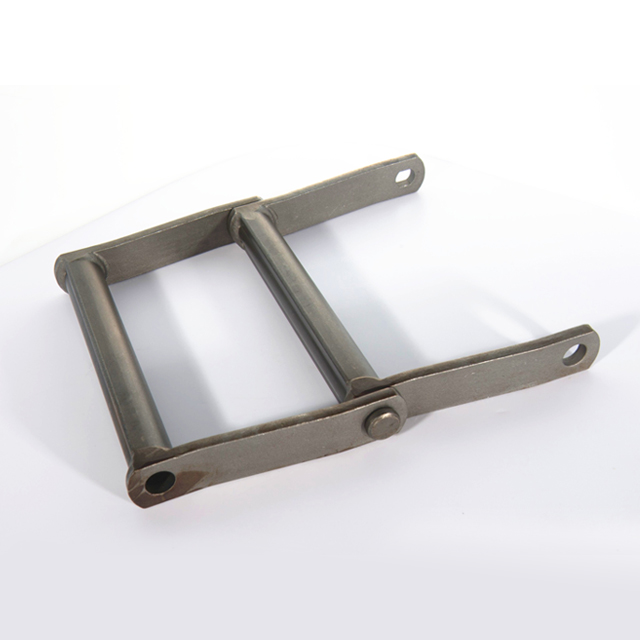

The WDH110 Chain stands out as a premium welded steel drag chain engineered for heavy-duty industrial applications, delivering unmatched performance and reliability. Here are its key advantages:
● Exceptional Load-Bearing Capacity:With an ultimate strength of 61,000 lbs and a maximum working load of 10,000 lbs, the WDH110 Chain is designed to handle extreme loads in industries like forestry, pulp and paper, and mining. Its wide pushing area efficiently conveys bulk materials at low-to-moderate speeds, ensuring productivity even in high-impact environments.
● Corrosion-Resistant Construction:Manufactured using premium alloy steel and advanced heat treatments, the WDH110 Chain resists wear and corrosion in harsh conditions. Optional stainless steel variants (SS series) further enhance durability in wet, dusty, or chemically challenging settings.
● Long-Lasting Durability:The chain undergoes multiple heat-treatment processes on pins, barrels, and side plates, significantly extending its service life. This robust design minimizes downtime and reduces replacement costs, making it ideal for continuous operation in demanding applications.
● Precision Engineering for Smooth Operation:The WDH110 Chain features a reverse barrel design that reduces friction between the chain and sprocket teeth, enhancing efficiency and reducing wear. Its precision-machined components ensure quiet, reliable performance even under heavy loads.
● Versatile Installation and Customization:The WDH110 Chain adapts seamlessly to various machinery configurations, with compatible sprockets and attachments (e.g., C1/2, C1, wing attachments) available for quick integration. Custom designs and reverse barrel options cater to specific conveyor needs, streamlining setup and maintenance.
Brand Reputation: JINQIU CHAIN, as a well-known and experienced chain manufacturer, we offer a full range of WH and WR narrow series and WDH wide series welded steel chains. Our chains are sold to more than 50 countries around the world and are ISO9001 certified and have multiple patents and SGS certificates.
Quality & Performance: Our welded steel chains are specially designed for demanding applications where strong impact and material wearing and lots of dust.
Price & Value: These power transmission product or conveyor part are engineered from special alloy steels using finite element analysis technology and best-in-class manufacturing technology and equipment. As a result, the welded cranked link chains have excellent resistance to high load impact and long lasting wear resistance while providing low cost.
Supply Chain: Jointed with various attachments in virtue of welding or bolting methods, the welded steel chains can meet the needs for diversity of different production lines. They are mainly used in woodworking, grain and oil processing and paper making industries and more.
Drawings:
Welded Steel Drag Chains'
Specification Parameters
| Chain No. | Average Pitch | E(mm) | Sidebar | Pin | F(mm) | Min.Ult. Strength (KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | |||||
| WDH102 | 127.0 | 162.00 | 9.70 | 38.10 | 19.05 | 232.50 | 197.00 | 226.7 |
| WDH104 | 152.4 | 104.78 | 9.70 | 38.10 | 19.05 | 173.30 | 136.53 | 226.7 |
| WDH110 | 152.4 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 235.0 |
| WDH113 | 152.4 | 228.60 | 12.70 | 38.10 | 22.23 | 311.50 | 270.20 | 297.8 |
| WDH120 | 152.4 | 222.25 | 12.70 | 50.80 | 22.23 | 301.60 | 260.35 | 311.5 |
| WDH112 | 203.2 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 250.0 |
| WDH116 | 203.2 | 330.20 | 9.53 | 44.45 | 19.05 | 395.00 | 358.78 | 250.0 |
| WDH118 | 203.2 | 336.55 | 12.70 | 50.80 | 22.35 | 425.45 | 377.90 | 400.5 |
| WDH480 | 203.2 | 279.40 | 12.70 | 50.80 | 22.23 | 366.90 | 323.85 | 311.5 |
| WDH480XHD | 203.2 | 279.40 | 15.88 | 50.80 | 25.40 | 380.85 | 330.20 | 543.0 |
WDH series welded mill chain is mainly used in woodworking, grain and oil processing, papermaking and other industries.
● Wood Industry
JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of WH and WR narrow series and WDH wide series of welded steel chains. They are mainly used in wood working, grain and oil processing and paper making industries and more.
Why Choose Our Chains for Your Wood Industry Needs?
1. Minimized Downtime: High-reliability chains keep your production line running, maximizing equipment uptime.
2. Lower Maintenance Costs: Self-lubricating designs and durable materials reduce long-term operational expenses.
3. Higher Production Efficiency: Smooth-running conveyor systems optimize material handling and processing.
4. Tailored Solutions: Our expert team designs custom chains to meet even the most complex requirements, ensuring your equipment performs at its best.
● Paper Industry
WDH series chains are widely used in afforestation, logging, rough processing of logs, deep processing of wood, pulp preparation, papermaking and other production activities, mainly involving wood processing machinery, wood-based panel equipment, papermaking equipment, etc., for transmitting power, conveying products and materials.
