Drive chains are critical components in machinery, vehicles, and industrial equipment, serving as the link between power sources and driven systems. Whether in bicycles, motorcycles, or conveyor belts, the correct drive chain size ensures optimal performance, durability, and safety. An improperly sized chain can lead to excessive wear, slippage, or even catastrophic failure. This article provides a step-by-step guide to measuring drive chain size accurately, covering essential methods, precautions, and the importance of precision in selecting replacement chains.
How to Measure Drive Chain Size

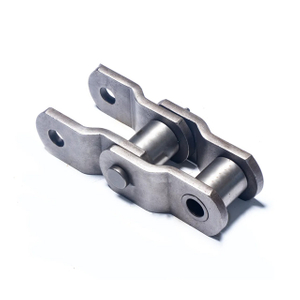

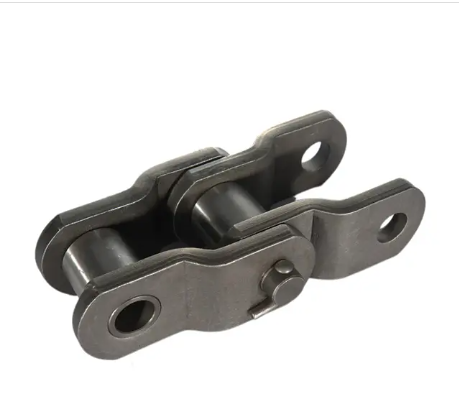

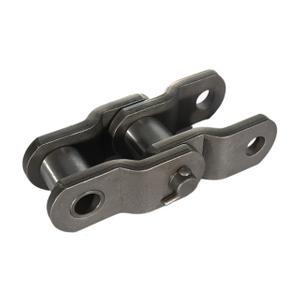

To determine the correct drive chain size, you need to measure three key parameters: pitch, roller diameter, and plate width. These dimensions vary depending on the chain type (e.g., ANSI, ISO, or heavy-duty industrial chains) and are standardized for compatibility.
1.Measure the Pitch

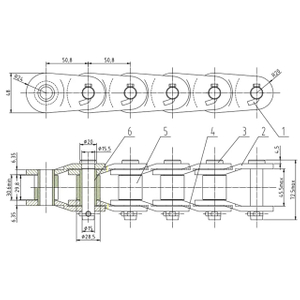

The pitch is the distance between the centers of two adjacent roller pins and is the primary identifier for chain size. To measure it:
Place a caliper or precision ruler across the chain.
Measure from the center of one pin to the center of the next pin.
Common pitch values include 0.25 inches (1/4"), 0.375 inches (3/8"), and 0.5 inches (1/2") for standard chains, with larger values for industrial applications.
2.Determine the Roller Diameter
The roller diameter affects how the chain fits into the sprocket teeth. To measure:
Use a caliper to measure the width of a single roller (the cylindrical part that contacts the sprocket).
Ensure the measurement is perpendicular to the chain’s length for accuracy.
3.Check the Plate Width and Thickness
The inner and outer plate dimensions influence the chain’s strength and flexibility. While plate width is less critical for basic sizing, it matters in high-load applications:
Measure the distance between the inner edges of the plates (inner width).
For thickness, measure the plate’s cross-section with a caliper.
4.Count the Number of Links (if replacing a chain)
The total number of links determines the chain’s length. Lay the chain flat and count each link, including both inner and outer plates.
Key Considerations When Measuring Drive Chain Size
1.Use Precision Tools
A standard ruler may lack the accuracy needed for small chains. Invest in digital calipers or a chain-specific measuring tool to avoid errors.
2.Account for Wear and Stretch
Old chains may have elongated due to wear, which alters the pitch. If replacing a worn chain, measure a new or unused section for reference, or consult the manufacturer’s specifications.
3.Verify Chain Type Standards
Different industries use distinct standards (e.g., ANSI #40 vs. ISO 606). Cross-reference your measurements with the chain’s model number or manufacturer guidelines to ensure compatibility.
4.Consider Application Requirements
Heavy-duty machinery may require reinforced chains with larger rollers or thicker plates. Always match the chain’s specifications to the operational load and speed.
Conclusion
Accurately measuring drive chain size is essential for maintaining machinery efficiency and preventing premature failure. By focusing on pitch, roller diameter, and plate dimensions, and by using the right tools, you can ensure compatibility with your equipment’s sprockets and power demands. Remember to account for wear and adhere to industry standards to avoid costly mistakes. Whether you’re a mechanic, engineer, or DIY enthusiast, mastering drive chain measurement will save time, resources, and headaches in the long run. Always prioritize precision—your drive chain’s performance depends on it.
