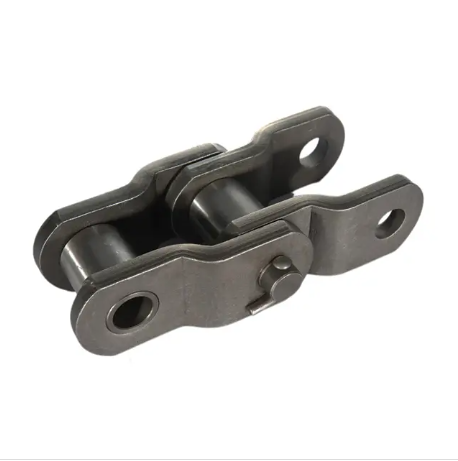

Drive chains are critical components in machinery, powering everything from bicycles to industrial conveyors. Over time, wear and elongation can compromise their efficiency, leading to reduced performance or even catastrophic failure. Accurately measuring a drive chain ensures timely replacement, maintains optimal functionality, and extends the lifespan of the equipment. Whether you’re a mechanic, engineer, or DIY enthusiast, understanding how to measure a drive chain is a fundamental skill. This article outlines the step-by-step process, key considerations, and best practices to ensure precise measurements.
Methods for Measuring Drive Chain
Measuring a drive chain involves assessing its length, pitch, and wear. Here’s a structured approach:
1.Use a Chain Wear Gauge (Ruler Method)
The most common tool for measuring chain elongation is a chain wear gauge or a specialized ruler. These tools are designed to check the pitch—the distance between roller centers—which stretches over time due to wear.
Step 1: Position the chain on a flat surface and relieve tension if necessary (e.g., by shifting gears on a bicycle or disengaging the drive system on machinery).
Step 2: Select a random link and measure the pitch. For example, a standard #40 chain has a pitch of 0.5 inches. Insert the gauge or ruler between two rollers.
Step 3: If the measurement exceeds the manufacturer’s specified tolerance (typically 1–1.5% elongation), the chain should be replaced.
2.Manual Measurement with Calipers
For precision, use digital calipers to measure the inner width of the rollers or the distance between link plates. This method is ideal for identifying uneven wear or damage.
Step 1: Measure the inner width of a roller (e.g., 0.312 inches for a #40 chain).
Step 2: Compare the measurement to the original specifications. Excessive wear may cause the roller to narrow or deform.
3.Count Links and Calculate Total Length
For longer chains, count the number of links and multiply by the pitch to estimate the total length. This is useful for ordering replacements or verifying compatibility.
Formula: Total Length = Number of Links × Pitch
Example: A 100-link #40 chain would measure 50 inches (100 × 0.5 inches).
4.Visual Inspection
While not a quantitative method, visual checks reveal signs of corrosion, rust, or broken pins. A damaged chain must be replaced immediately, regardless of measurements.
Key Considerations When Measuring Drive Chain
1.Relieve Tension Before Measuring
Tension can distort measurements, especially on machinery. Disengage the drive system or shift to a neutral gear to ensure accuracy.
2.Measure Multiple Links for Consistency
Wear may be uneven across the chain. Check 5–10 links and average the results to avoid false readings.
3.Account for Chain Type and Specifications
Different drive chains (e.g., ANSI, ISO, or heavy-duty chains) have varying pitches and tolerances. Refer to the manufacturer’s documentation for exact specifications.
4.Replace Chains in Pairs (For Multi-Chain Systems)
In systems with multiple drive chains (e.g., motorcycles), replace all chains simultaneously to prevent uneven loading and premature failure.
5.Check Sprocket Condition
Worn sprockets accelerate chain wear. Inspect teeth for sharp edges, hooks, or uneven spacing. Replace sprockets if they show signs of damage.
Conclusion
Measuring a drive chain is a straightforward yet vital task for maintaining machinery reliability. By using tools like chain wear gauges, calipers, or simple rulers, you can accurately assess elongation, wear, and structural integrity. Always prioritize safety by relieving tension and cross-referencing measurements with manufacturer specifications. Regular inspections and timely replacements prevent costly downtime and ensure the longevity of your drive chain and associated components. Whether you’re servicing a bicycle, motorcycle, or industrial equipment, mastering this skill will save time, money, and frustration in the long run.
Remember: A well-maintained drive chain is the backbone of efficient power transmission. Don’t overlook the importance of accurate measurements—they’re the key to keeping your machinery running smoothly.
