In sawmills, waste recycling plants, or biomass energy workshops, do you often face these frustrations: slippery logs skidding on the conveyor line, wet and heavy garbage bags stalling, or loose straw piling up on the incline? When ordinary flat-top conveyor chains fail to effectively "grip" the material, the efficiency of the entire production line plummets. Choosing a suitable Sharp Top Chain (also known as Spike Chain, Toothed Chain, or Pointed Attachment Chain) is key to solving these material slippage problems. However, with different working conditions and materials, how do you make the right choice? This article provides a clear, professional selection guide to help you find the most suitable Spiked Conveyor Chain for your application.
Before diving into selection, understanding its working principle is crucial. This chain doesn't rely on friction but achieves reliable conveying by actively "engaging" the material.
1.1 Functional Design Analysis: From "Sliding" to "Gripping"

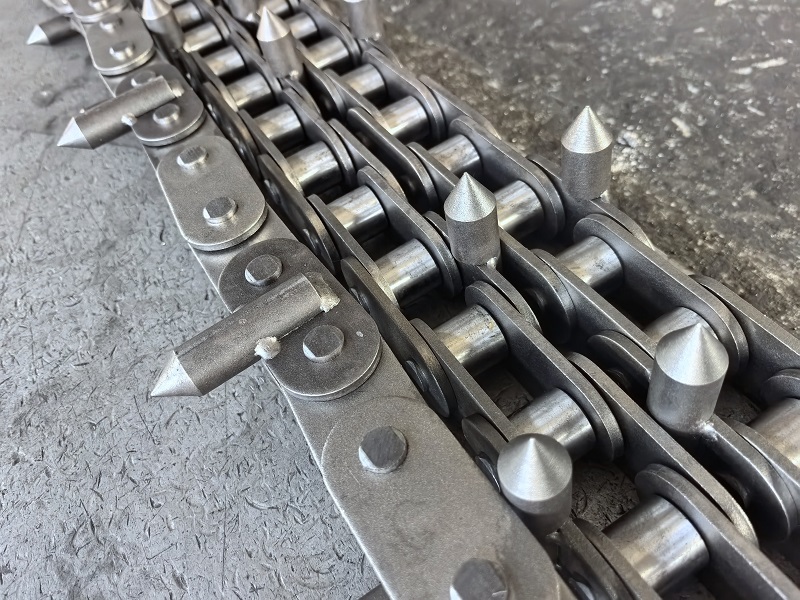

The Core Mission of the "Sharp Top": The conical spikes welded onto the heavy-duty link plates have one sole purpose: to penetrate, brace, or lodge into the material. For materials that are smooth, wet, heavy, or irregular, this provides a more reliable driving force than surface friction.
The Fundamental Difference from Ordinary Conveyor Chains: Ordinary conveyor chains depend on the friction between the material and the chain plate surface. The Sharp Top Chain, through physical intervention, prevents material back-slipping, rolling, or accumulation during inclined conveying, high-speed operation, or sudden stops, achieving "positive conveying".
1.2 The Wisdom of Conical Design: Why "Pointed"?
Easy Penetration: The conical point can penetrate materials (like wood) with less resistance, avoiding pushing the material away.
Strength and Durability: The conical structure distributes force more evenly, making it less prone to bending or breaking under heavy loads compared to right-angled posts.
Reduced Jamming: The smooth conical profile allows for smoother disengagement from the material and passage over sprockets, minimizing the risk of jamming.

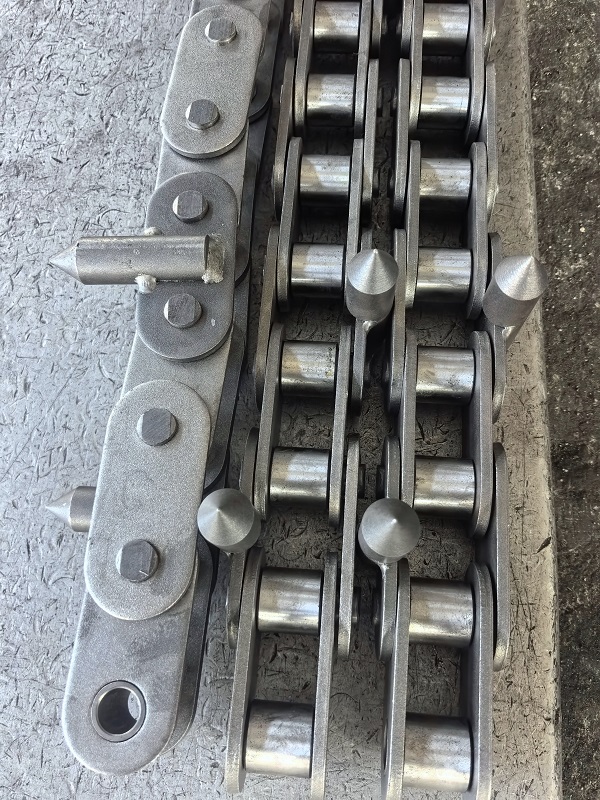

Choosing the right Sharp Top Chain requires a systematic evaluation of the following key dimensions.
2.1 Material Characteristics Analysis (The Primary Basis for Selection)
Regular Blocks/Boards (e.g., lumber, panels): Spike height and pitch must match the material thickness to ensure stable gripping.
Loose and Irregular (e.g., shredded material, bagasse): Require a denser layout of spikes to form a continuous gripping surface, preventing material from slipping through gaps.
Soft Materials (e.g., municipal waste, straw, wood chips): Relatively slender spikes can be chosen for effective gripping without excessively damaging the material.
Hard Materials (e.g., logs, scrap metal, construction debris): Require sturdier, highly wear-resistant spikes, often needing higher hardness (HRC) treatment to ensure spike longevity.
Material Type and Hardness:
Material Form and Size:
2.2 Conveying Condition Assessment
Wet, Corrosive Environments (e.g., landfill leachate, marine climate): Stainless steel or heavy-duty galvanized Sharp Top Chains must be considered to prevent rapid corrosion of spikes and links.
High-Abrasion Environments (e.g., mining, crushed aggregate): Spikes and links may require special alloy steel and hardening treatments.
Horizontal Conveying: Standard designs are usually sufficient.
Steep Incline or Vertical Lift: This is the primary application for Sharp Top Chains. It is essential that the spike length, angle, and strength are sufficient to bear the full weight of the material and prevent backfall, placing extremely high demands on the chain's own tensile strength as well.
Conveying Angle:
Environmental Conditions:
2.3 Chain Specifications and Customization Needs
Spike (Attachment) Specifications: The height, diameter, pitch, and arrangement pattern (single, double, or staggered) of the spikes should all be optimized based on your material size and throughput. A professional Sharp Top Chain manufacturer should offer various options.
Chain Body Strength: The chain's pitch, link plate thickness, and overall tensile strength must match the conveyor's length, load, and drive power. Heavy-duty applications require a welded mill chain with thickened link plates as the base body.

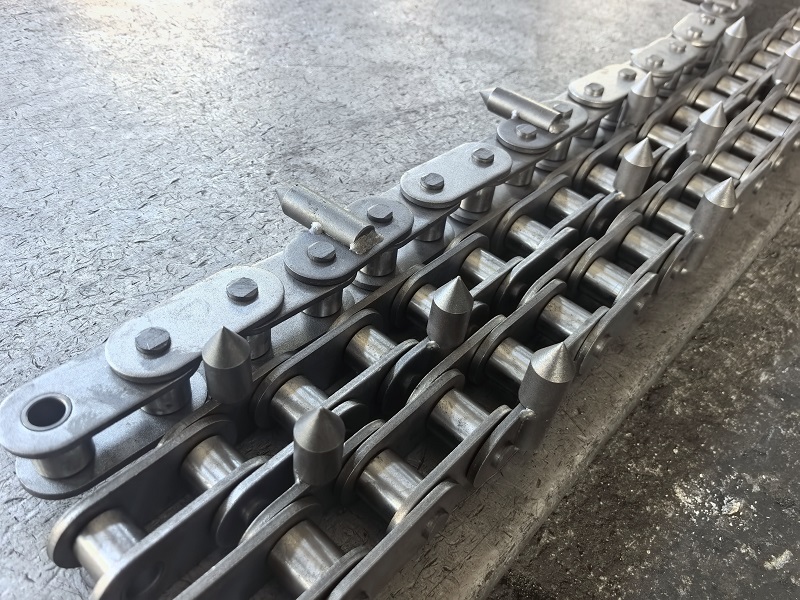

Combining the above factors, let's see how selection is prioritized in common industries.
Applications: Conveying logs, lumber, wood chips.
Selection Priorities: Spikes need sufficient hardness to penetrate wood and wear resistance to prevent wood fibers from quickly dulling the points. For logs, spikes must be robust; for boards, spike pitch must be considered to avoid damaging the surface.
3.2 Waste Recycling and Processing Industry
Applications: Conveying municipal solid waste, industrial scrap, construction & demolition waste.
Selection Priorities: Material composition is complex and may contain corrosive liquids. Corrosion-resistant materials are recommended. Spike design must handle extremely irregular shapes, potentially requiring high-strength link plates to withstand impact.
3.3 Biomass Energy & Agriculture
Applications: Conveying straw, bagasse, wood pellet blocks.
Selection Priorities: Materials are often loose and prone to slipping. A densely arranged spike pattern is needed for effective gripping. As environments can be dusty and damp, the chain's sealing and anti-rust capabilities are also important.

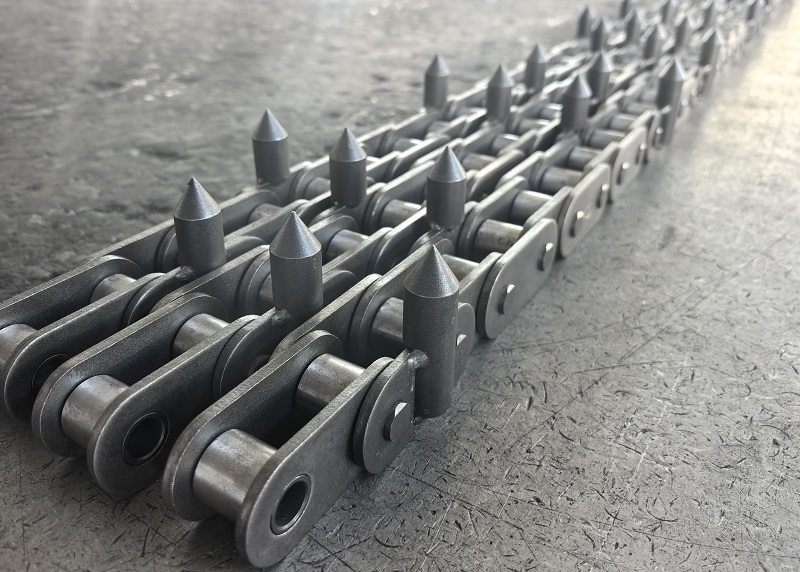

Behind an excellent Spiked Conveyor Chain is a manufacturer with strong technical capabilities. Your choice should extend beyond the product catalog to an assessment of their manufacturing and support prowess.
4.1 Manufacturer's Engineering Capability & Experience
Custom Design Ability: Ideal solutions often require customization. An excellent manufacturer can optimize spike shape, layout, and chain strength based on your material samples and drawings, not just offer standard items.
Expertise in Materials & Heat Treatment: Spike durability depends directly on materials science and heat treatment processes. Inquire about specifics like steel grade, case depth, and hardness control, which reflect technical depth.
4.2 Quality Assurance & Reliable Delivery
Full-Process Quality Control: Rigorous processes—from raw material spectroscopic analysis, to spike weld inspection, to final tensile testing—are the cornerstone of long-term, reliable product performance.
Supply Chain Stability: Critical for ensuring your production continuity. The manufacturer should have scalable production capacity and stable raw material supply to meet your volume needs and urgent orders.
Choosing the right Sharp Top Chain, Pointed Attachment Chain, or Toothed Chain for your application is a decision that synthetically considers material, conditions, and technology. It directly impacts your line's smoothness, maintenance costs, and overall profitability. The right choice not only solves the persistent problem of material slippage but also delivers long-term ROI by reducing downtime and maintenance frequency.
When you need a solution for demanding conveying challenges, we strongly recommend partnering with a manufacturer possessing deep industry experience and technical heritage. Jinqiu, as a professional Sharp Top Chain manufacturer with over 36 years in the industrial chain sector, not only deeply understands the unique needs of industries like wood, waste processing, and biomass but also has a strong R&D team and advanced production & testing equipment (including automated welding robots and full heat treatment lines) to translate this understanding into high-performance, long-life products.
We offer not just a list of standard products, but a complete value chain service from professional consultation, customized engineering design, to reliable manufacturing and global logistics support. Let our experience and expertise help you make the smartest choice.
Contact your reliable Sharp Top Chain manufacturer — Jinqiu today for professional selection advice and solutions tailored to your specific conditions, and let's enhance your conveying system performance together.
