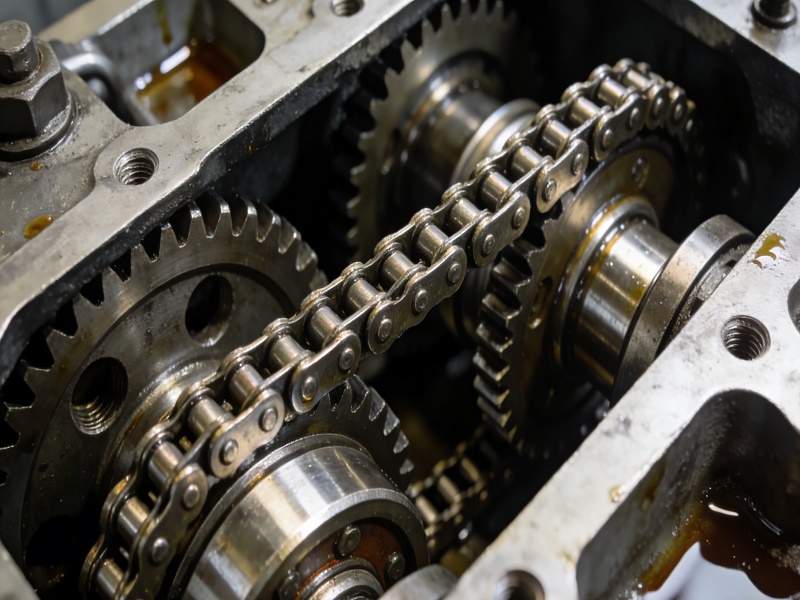

Roller chains are the robust, silent partners in machinery, transmitting power in applications from bicycles to heavy industrial conveyors, with each of the eight main types engineered to conquer specific challenges like extreme loads, corrosion, or high temperatures.
Choosing the correct roller chain is a critical decision that impacts efficiency, maintenance costs, and the longevity of an entire system. The fundamental purpose of a roller chain is to provide a reliable and efficient method of mechanical power transmission. At its core, it consists of a series of cylindrical rollers held together by side links and connected by pins, engaging with the teeth of a sprocket to transfer motion and force. This guide will detail the eight primary types of roller chains, clearly explaining the distinct advantage of each to help you make an informed selection for any application.
Specialization Defines Performance: Each of the eight roller chain types is optimized for a core performance trait, such as load capacity (multi-strand), corrosion resistance (stainless steel), or minimal maintenance (self-lubricating).
Application Drives Selection: The correct chain is determined by the operating environment; harsh conditions demand stainless steel, high-impact loads require heavy-duty designs, and tight spaces benefit from bent-link chains.
Material Science Enhances Durability: Advancements in materials, including heat-resistant alloys and oil-impregnated sintered metals, directly extend chain life in extreme operational environments.
Design Innovation Solves Problems: Unique constructions, like double-pitch conveyer chains or offset sidebar links, provide tailored solutions for economical material handling and specialized directional flexibility.
The single-strand standard roller chain is the most ubiquitous and foundational type. It is constructed from a single row of inner and outer link plates, pins, bushings, and rollers, manufactured to precise international standards.
Its primary advantage is versatility and cost-effectiveness. As the industry workhorse, it is perfectly suited for a vast array of general power transmission applications where extreme conditions are not present. You will find these chains in everything from motorcycle drives to conveyor systems and printing presses. Its standardized dimensions ensure wide availability and compatibility with off-the-shelf sprockets.
When a single strand cannot handle the required power or load, multi-strand chains provide the solution. These are constructed by assembling two or more strands of standard chain alongside each other, connected with longer pins through the entire width.
The key advantage is a dramatic increase in load capacity and power transmission capability. The load is distributed across multiple strands, allowing for higher torque transmission without needing to switch to a chain with a larger, heavier pitch. This makes them ideal for heavy-duty industrial drives, large agricultural machinery, and high-torque applications where reliability under significant stress is paramount. Proper sprocket alignment is crucial for even load distribution across all strands.
Heavy-duty roller chains are engineered from the ground up for extreme service. They feature robust construction with thicker side plates, larger-diameter pins and bushings, and often higher-grade alloy steels.
The foremost advantage is exceptional tensile strength and superior resistance to shock loads and fatigue. This design focuses on pure mechanical durability, making it indispensable in punishing environments. These chains are the preferred choice for mining equipment, forestry machinery, heavy construction rigs, and any application involving high-inertia starts or severe impact loading. Their enhanced durability ensures reduced downtime in critical operations.
This specialized chain is easily identified by its alternating "bent" or offset link plates, which replace the standard straight links in every other pair.
The primary advantage is superior flexibility and articulation in a single plane. This unique design allows the chain to negotiate much tighter bending radii than a standard chain. It is therefore ideal for applications with space constraints where the chain path must turn sharp corners, such as in combine harvesters, certain types of excavators, and specialized conveyor systems that navigate complex layouts without additional guide tracks.
Constructed entirely from stainless steel alloys (such as Series 300 or 400), this chain type is defined by its exceptional corrosion and chemical resistance.
This makes it the definitive choice for environments exposed to moisture, chemicals, washdowns, or outdoor weathering. Common applications include food and beverage processing lines, pharmaceutical manufacturing, chemical plants, marine applications, and packaging machinery. While its ultimate tensile strength may be lower than a carbon steel equivalent, modern stainless alloys provide an excellent balance of strength and longevity in corrosive settings, preventing rust-related failure.
Maintenance challenges are solved with self-lubricating chains. They integrate lubrication into their design through sintered bushings impregnated with oil or via polymer-based liner materials within the chain's bearing surfaces.
The clear advantage is drastically reduced maintenance and cleaner operation. They eliminate the need for frequent re-lubrication cycles, reduce contamination from lubricant drips, and prevent the dirt buildup common with wet lubricants. These chains are ideal for hard-to-reach locations, clean environments like textile or electronic manufacturing, and applications where lubricant contamination is unacceptable. The trade-off is often a slight reduction in maximum load and speed ratings.
Standard chains fail in extreme heat as lubricants break down and materials soften. High-temperature chains use special heat-resistant alloys for components and high-temperature stable lubricants or platings.
Their key advantage is the ability to maintain mechanical integrity and performance in continuous high-heat environments. This prevents annealing of components and seizure due to lubricant failure. These chains are critical in oven and furnace conveyors, heat treatment systems, glass manufacturing, and near-engine applications. Selection must carefully match the chain's maximum temperature rating with the operational environment.

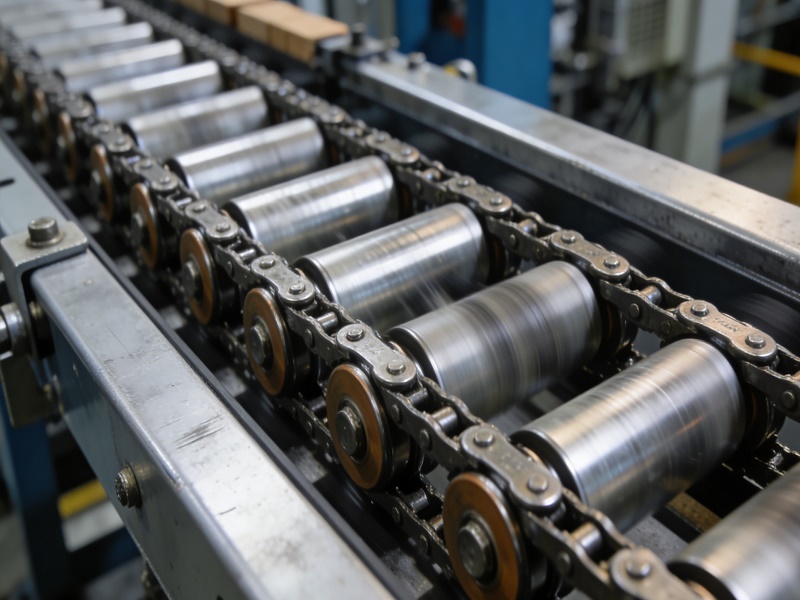

This category includes chains designed primarily for smooth material conveying rather than high-power transmission. The double-pitch roller chain is a prime example, featuring a pitch length twice that of a standard transmission chain, with lighter components.
The main advantages are lower weight, reduced cost over long center distances, and the availability of various attachments (like elevated tabs or side plates) for directly carrying or pushing products. They are not designed for high torque but for efficient, economical material movement. Specialized subtypes like top roller chains (for smooth carrying surfaces) are essential in assembly lines, bottling plants, and distribution centers.
Comparison of Select Roller Chain Types for Key Applications
| Chain Type | Core Advantage | Ideal Application | Key Consideration |
|---|---|---|---|
| Heavy-Duty | Extreme tensile strength & shock load resistance | Mining, Construction, Forestry | Higher weight and cost |
| Stainless Steel | Superior corrosion & chemical resistance | Food Processing, Chemical, Marine | Lower tensile strength vs. carbon steel |
| Self-Lubricating | Minimal maintenance, clean operation | Packaging, Textile, Clean Rooms | Slightly reduced load/speed limits |
| Double-Pitch Conveyor | Economical long-distance material handling | Light-duty Conveyors, Transport Systems | Not suited for high-power transmission |
The journey through the eight types of roller chains reveals a principle of specialized engineering: the right tool for the right job. From the versatile standard chain to the rugged heavy-duty variant, the corrosion-fighting stainless steel design, and the low-maintenance self-lubricating model, each serves a distinct purpose to enhance system reliability and efficiency.
Understanding the specific demands of your application—be it load, environment, temperature, or maintenance access—is the first step toward optimal selection. This knowledge ensures not only the smooth operation of machinery but also contributes to longer service life and lower total cost of ownership.
For manufacturers producing comprehensive ranges of roller transmission chains, the value lies in providing both precision-engineered products and the application expertise to guide customers. This ensures that whether the need is for a standard, heavy-duty, stainless, or specially configured chain, the solution delivers unwavering reliability and performance, keeping industries in motion.
What is the most important factor when selecting a roller chain?
The operating environment and application requirements are paramount. Key factors include the load to be transmitted, speed of operation, environmental conditions (corrosive, high-temp, clean), and maintenance accessibility. The chain's pitch and construction type flow from this analysis.
Can I replace a standard chain with a stainless steel chain for longer life in a wet environment?
Yes, this is a common and effective upgrade to combat rust and corrosion. Ensure the stainless steel chain's tensile strength rating meets or exceeds the original chain's requirement, as some stainless alloys have lower strength than carbon steel.
What is the difference between a "drive" chain and a "conveyor" chain?
Drive chains are designed primarily for power transmission between two shafts, prioritizing high torque capacity and fatigue resistance. Conveyor chains are designed to carry, push, or pull materials along a path, often featuring attachments and sometimes prioritizing smooth operation and reduced friction over pure tensile strength.
When is a self-lubricating chain necessary?
Consider it when regular manual lubrication is impractical, costly, or hazardous, or when lubricant drip could contaminate products (e.g., in food or paper processing). It is also beneficial in enclosed or difficult-to-access drive systems.
How do I know if I need a multi-strand chain?
A multi-strand chain is typically needed when the power or load requirements exceed the capacity of the largest acceptable single-strand chain. Using multiple strands allows you to increase capacity without switching to a larger pitch, which would require larger, more expensive sprockets and may not fit the design space.
