A drive chain is a mechanical component that plays a pivotal role in power transmission systems across various industries. It is an endless loop of interconnected links designed to transfer rotational motion and torque from one rotating component to another. Drive chains are widely utilized in applications such as motorcycles, bicycles, industrial machinery, and agricultural equipment. Understanding the structure, function, and advantages of drive chains is essential for engineers, mechanics, and enthusiasts working with mechanical systems.
Structure and Components

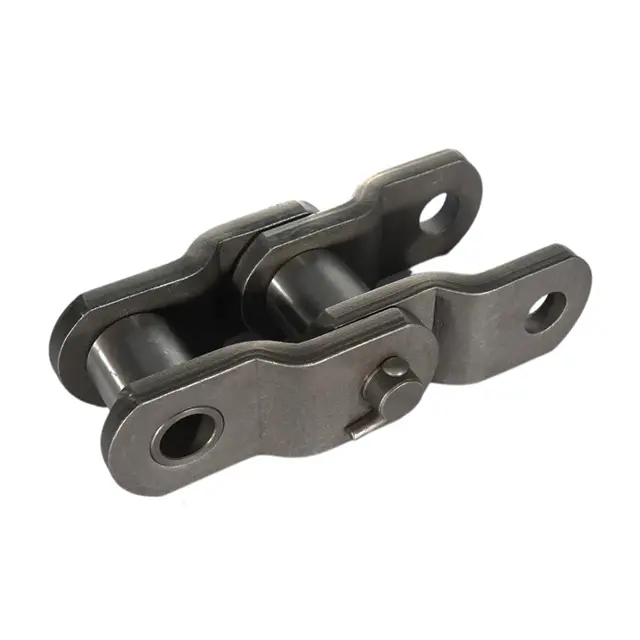

A typical drive chain consists of three main components: links, pins, and bushings. The links are the primary structural elements, interconnected to form a flexible loop. The pins secure the links together, allowing rotational movement between adjacent links. Bushings, often made of durable materials like steel or bronze, are inserted into the links to reduce friction and wear during operation. In some designs, rollers are added to the bushings to further enhance efficiency by minimizing contact with the sprocket teeth.
The most common types of drive chains are roller chains and silent chains. Roller chains, featuring cylindrical rollers between the link plates and sprocket teeth, are widely used due to their simplicity and cost-effectiveness. Silent chains, on the other hand, use tooth-shaped links that mesh directly with sprocket teeth, offering quieter operation and higher load capacity.
Function and Working Principle
The primary function of a drive chain is to transmit power between two rotating components, such as a motor and a gearbox or a crankshaft and a camshaft. This is achieved through a process known as meshing, where the chain’s links engage with the teeth of sprockets attached to the driving and driven components. As the driving sprocket rotates, it pulls the chain, which in turn drives the driven sprocket and the connected component.
The efficiency of a drive chain system depends on factors such as chain tension, lubrication, and alignment. Proper tension ensures that the chain remains engaged with the sprockets, preventing slippage and reducing wear. Regular lubrication minimizes friction and heat generation, extending the chain’s lifespan. Precise alignment of the sprockets is crucial to avoid uneven wear and premature failure.
Advantages and Applications
Drive chains offer several advantages over alternative power transmission methods, such as belts or gears. They are highly efficient, with power transmission efficiencies often exceeding 95%. Drive chains are also capable of handling high torque loads, making them suitable for heavy-duty applications. Additionally, they are relatively simple to install and maintain, requiring only periodic tension adjustments and lubrication.
In the automotive industry, drive chains are commonly used in motorcycle and bicycle drivetrains due to their compact size and lightweight design. In industrial machinery, they are employed in conveyor systems, printing presses, and packaging equipment. Agricultural equipment, such as tractors and combines, also relies on drive chains for various functions, including power take-offs and conveyor systems.
Maintenance and Longevity
Proper maintenance is critical to ensuring the longevity and reliability of a drive chain. Regular inspections should be conducted to check for signs of wear, such as elongation, link distortion, or corrosion. Worn chains should be replaced promptly to prevent damage to the sprockets and other components.
Lubrication is another key aspect of maintenance. The type and frequency of lubrication depend on the operating conditions and the chain’s design. For example, high-speed applications may require more frequent lubrication with specialized lubricants to withstand the increased heat and friction.
Conclusion
In conclusion, a drive chain is a versatile and indispensable component in mechanical power transmission systems. Its robust design, high efficiency, and wide range of applications make it a preferred choice in industries ranging from automotive to industrial manufacturing. By understanding the structure, function, and maintenance requirements of drive chains, engineers and mechanics can ensure optimal performance and longevity of the systems they work with. As technology advances, drive chains will continue to evolve, offering even greater efficiency and reliability in the future.
